Overview

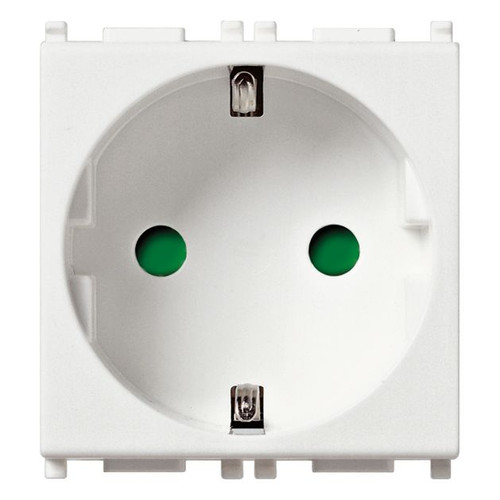

The Vimar Plana Series is a 2P+E German SICURY outlet family rated at 16 A and 250 V. It uses a 2-module format with flush-mounted installation and built-in enhanced contact protection. On a boat, it makes sense in protected interior areas such as cabins, saloons, galleys, and similar spaces where a German standard socket is required.

Across the range, the insert measures 44.8 x 49.0 x 38.9 mm and carries an IP20 rating, so it belongs in dry interior panels rather than exposed deck locations or washdown zones. The body is thermoplastic, halogen-free, and finished with a glossy surface that matches clean interior fit-outs.

Key features

• German standard 2P+E outlet rated 16 A at 250 V for AC circuits
• 2-module insert with flush-mounted fit for Vimar Plana modular installations
• Enhanced contact protection built into the socket face
• Available with screwed terminals or screwless push-in clamp terminals, depending on version

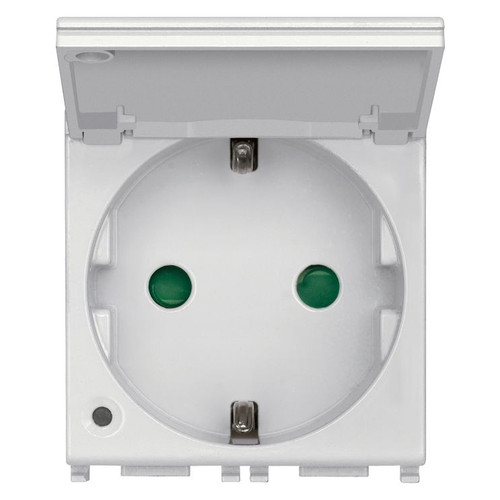

• Versions available with or without a hinged cover
• Offered in white or silver, with one white variant that includes antibacterial treatment
• IP20-rated housing for protected interior mounting

Variants

This range changes in three main ways: finish, cover, and terminal style. Listed versions are available in white or silver, with or without a hinged cover, and with either screwed terminals or screwless push-in clamp terminals.

One white version adds antibacterial treatment. Across the listed variants, the outlet format remains 2P+E German standard, rated 16 A at 250 V, and the insert stays in the same 2-module size.

Compatibility and fit

This outlet is part of the Plana device range, so it is intended to sit within the matching modular support and cover plate system. For refits and new builds, the main checkpoints are the required socket standard, the 2-module opening, and whether the wiring plan calls for screwed or push-in clamp termination.

For marine interiors, this is a good match for builders and owners who want a flush finish inside the accommodation area and need a Vimar insert that stays consistent with other Plana devices already installed on board.

Installation and use on board

Versions with screwed terminals suit installations where traditional wire termination is preferred, while screwless versions use push-in clamp connection for faster assembly. Covered versions add a flap over the socket face, which changes access at the front without changing the basic electrical rating of the outlet.

Because the outlet is IP20, it is better suited to protected living spaces than to open cockpits, deck lockers, or any location that sees regular spray. In the right mounting position, it gives a clean AC outlet point for cabin appliances and shore-power-fed interior circuits built to the correct standard.
