Ancor 100' Green #16 Primary Wire (102310)
-
Perfect Fit, Guaranteed
Get the right part every time
-
Expert Support
Our in-house specialists know our products inside and out
-
Enhanced Value & Service
We go beyond the sale with professional and balanced services
-
Wordwide Delivery
Enjoy hassle-free worldwide delivery
Wires are metal strands that carry electricity. These electrical conductors are essential to all electrical equipment. Ground wires help limit the danger of electrical overload and fires by channeling surplus current during a short circuit or other malfunction.
The circuit's grounding/earthing wires are the green wires. Their principal function is to ground an electrical circuit and provide a path to ground a circuit's electric current if a live wire inside the structure comes into contact with metal from another conductive substance.
Key Features:
- Longest, lasting, and durable wire
- Exceeds the criteria of UL 1426, ABYC, and the United States Coast Guard Charter boat (CFR Title 46)
- Built with quality vinyl insulation rated at 600V, 105°C dry, and 75°C wet
- Saltwater, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation resistance
- Tinned copper stranding of the highest grade (Type 3)
- Protects against corrosion and electrolysis to the greatest extent possible
Specifications:
- Brand: Ancor
- SKU: 1-102310
- UPC: 091887103465
- Weight: 1.50 lbs
- Color: Green
- Length: 100'
- Nominal O.D.: 1/8" (3.2mm)
- Wt./1000': 16 lbs. (7.3 kg)
- Stranding: 26 of 30 AWG
- Cir. Mil Area: 2600
- Square mm: 1.31
- Ohms/1000': 4
- Manufacturer Part Number (MPN): 102310
- Replaces Products: 639-102310, 91887103465
MARINE GRADE™ 16 AWG (1MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 1/8" (3.2mm) |
| Wt./1000' | 16 lbs. (7.3 kg) |
| Stranding | 26 of 30 AWG |
| Cir. Mil Area | 2600 |
| Square mm | 1.31 |
| Ohms/1000' | 4 |
This product replaces:
- 639-102310, 91887103465
We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
Related Products
Ancor 100' Yellow #16 Primary Wire (103010)
Ancor 100' Orange #16 Primary Wire (102510)
Ancor 100' Black #16 Primary Wire (102010)
Ancor 100' Purple #16 Primary Wire (102710)

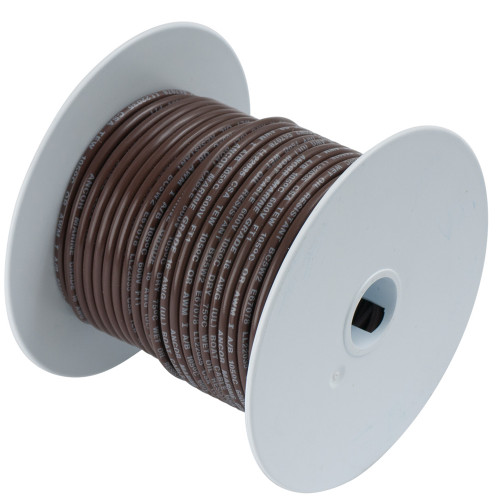

Ancor 100' Brown #16 Primary Wire (102210)
