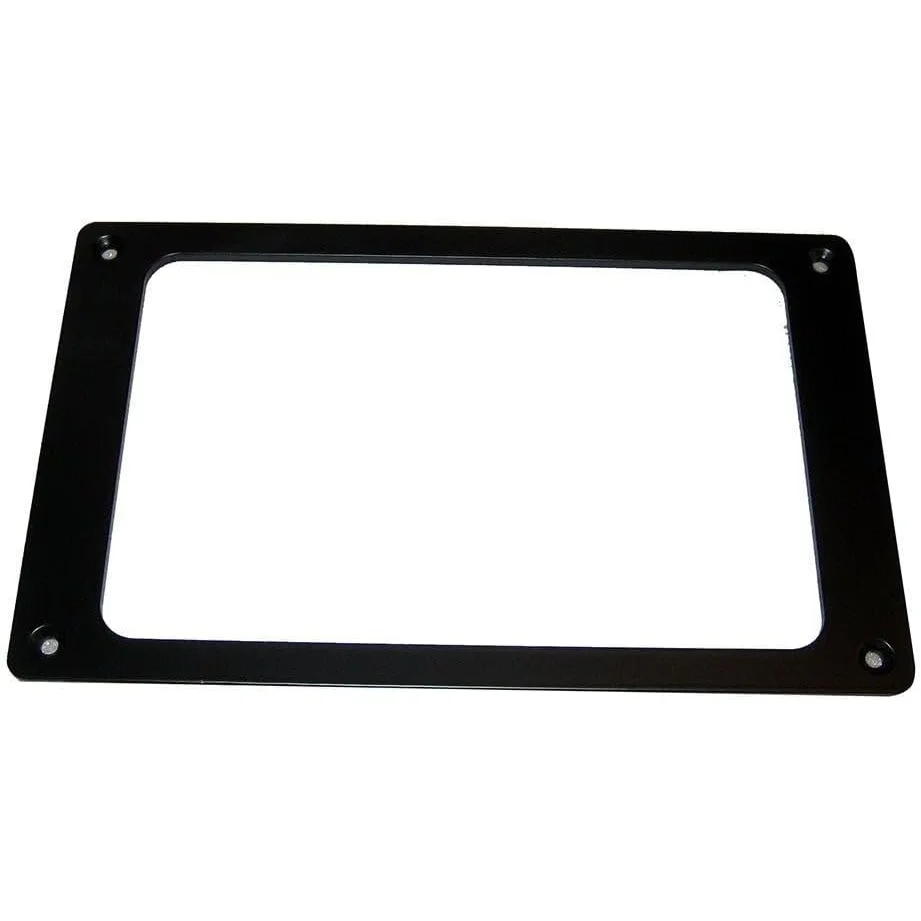

Raymarine Axiom 7 Adapter Plate, For e7/e7D, Existing Fixing Holes, Black Finish

Overview

The Raymarine A80524 is an adapter plate for installing a Raymarine Axiom 7 multifunction display in place of a legacy e7 or e7D display. It is made for helm retrofit work where the boat already has an e7 or e7D cutout and the owner wants to move to an Axiom 7 display without leaving an unfinished opening around the new unit.

The plate has a powder-coated black finish to match the look of the Axiom display at the dash. It also uses the existing fixing-hole layout for this specific e7 and e7D to Axiom 7 conversion, which helps keep the installation cleaner and reduces the need to rework the mounting surface.

Key features

• Fits retrofit installations from Raymarine e7 or e7D displays to a Raymarine Axiom 7 multifunction display.
• Uses the existing fixing holes for this legacy display replacement, helping preserve the helm surface during the upgrade.
• Powder-coated black finish matches the Axiom display for a neat dash appearance.
• Useful for console, cockpit, or enclosed helm updates where the original display footprint needs to be covered cleanly.
• Mechanical adapter only, with no impact on the vessel wiring, power system, transducers, or network layout.

Installation and fit

This adapter plate is a fit-focused part for a specific Raymarine display upgrade. It belongs between the helm surface and the Axiom 7 display so the newer display sits cleanly where the older e7 or e7D display was mounted.

Before installation, compare the existing display position, dash clearance, cable routing, and rear access behind the helm. The adapter plate helps with the face-side retrofit, but the Axiom 7 display still needs proper clearance, service access, and correct cable routing for power, data, sonar, or network connections used on the vessel.

Use on board

This plate is a practical match for boat owners replacing an older Raymarine e7 or e7D display during a navigation electronics refresh. It is especially useful on molded fiberglass helms, black acrylic panels, or tight dash layouts where cutting a new faceplate or leaving exposed marks around the display would make the installation look unfinished.

Because it is a mounting adapter, it does not change display functions or system compatibility. The electrical and network side of the upgrade should be checked against the Axiom 7 display and the boat’s existing electronics before final installation.
