High-Performance Dual-Speed Radar with 10.4" Color Display

The Si-Tex T2041A 10.4" Color Radar is designed for precision marine navigation, offering a powerful 4kW output and a 24" radome scanner. With advanced dual-speed rotation at 24 or 48 RPM, this radar system ensures exceptional performance in high-speed and river operations. The split-screen capability allows users to monitor both long-range and short-range targets simultaneously, enhancing situational awareness in dynamic marine environments.

Key features include True-Trail Function, which accurately identifies moving targets, and an integrated AIS interface module capable of tracking up to 200 targets. Additional functionalities such as Interference Rejection, Target Expansion, and True/Relative Bearing provide enhanced navigation and collision avoidance capabilities.

Technical Specifications

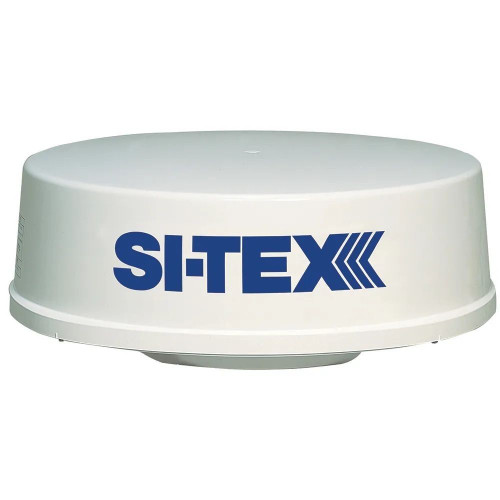

Radar Scanner

• Type: 24" Radome
• Peak Power Output: 4kW
• Output Frequency: 9410 ± 30MHz
• Beam Width: 3.9° Horizontal, 25° Vertical
• Rotation Speed: 24 or 48 RPM
• Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µsec
• IF Frequency: 60MHz
• Range Accuracy: Better than 8m or 1% of the selected range scale
• Minimum Detecting Distance: 25m

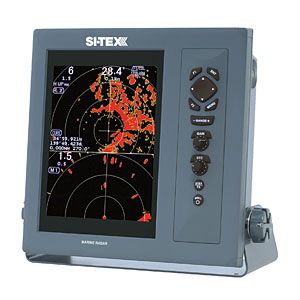

Display Unit

• Screen Size & Type: 10.4" TFT Color LCD
• Resolution: 480 x 640 pixels
• Display Modes: Heads Up, North Up*, Course Up*, WPT Up**
• Power Requirement: 10.8 - 31.2V DC
• Power Consumption: 80 watts or less

* North Up and Course Up modes require heading, speed, and position signals from external equipment such as a GPS compass.

** WPT Up mode requires waypoint data input.

Product Dimensions

• Display Unit Dimensions: 12 19/32" x 12 19/32" x 5 39/64"

Highlights

• Dual-speed 48 RPM capability for high-speed and river operations
• Split-screen display for simultaneous long- and short-range tracking
• True-Trail Function to distinguish moving targets
• Integrated AIS interface module for tracking up to 200 targets
• Optional 50-target Automatic Tracking Aid (ATA)
• Advanced navigation features including Interference Rejection, Target Expansion, and Parallel Index

What's in the Box

• MRD-104 Display
• RB715A- 24" Radome
• 10M Cable (242J159098A)
• DC Power Cable
• Quick Reference Guide
• Operation Manual

This radar system is built for serious mariners who require reliable, high-precision tracking and navigation capabilities in all marine conditions.
