Icom M85UL Hand Held VHF Intrinsically Safe M85UL 31 USA
Write a Review
Icom

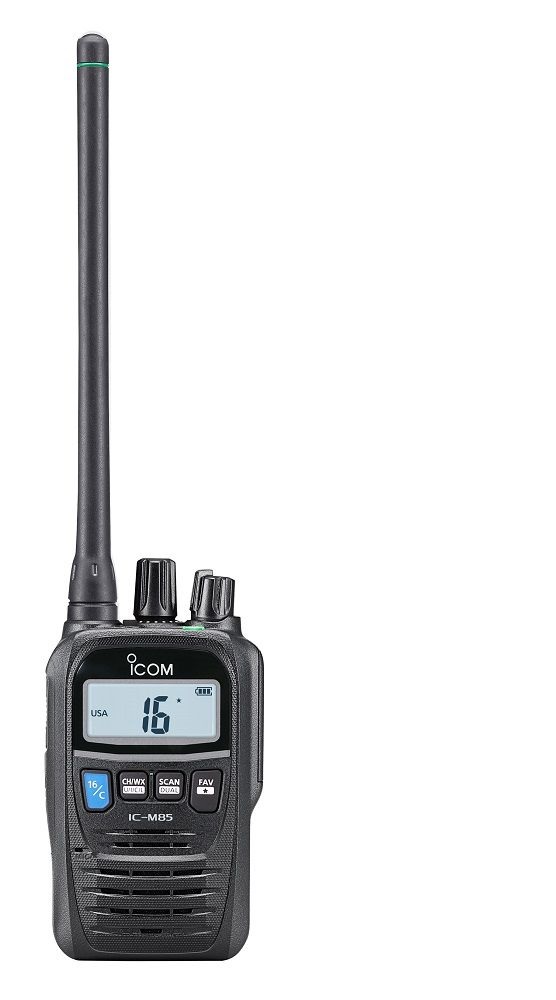

Icom M85UL Hand Held VHF Intrinsically Safe M85UL 31 USA
Icom M85UL Hand Held VHF Intrinically Safe
Model: M85UL 31 USA- AquaQuake™ prevents water-logged speaker
- Internal VOX capability for hands-free operation
- Weather channel receiving
- Self check function checks internal temperature and connected battery voltage
- Priority scan function
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Favorite channel function for quick access to often used channels
- Built-in voice scrambler (32 codes)*
The M85 is the smallest, lightest and toughest radio on the market today!
The M85 can withstand hazardous and inhospitable environments at sea and on land, as it is built to MIL-STD 810. The IP67 waterproof rating protects the radio, even if dropped in the water. Yacht and commercial customers like the M85 because of the 100 programmable land mobile channels, as well as the easy to use built-in voice scrambler for private communications. The M85 is full of the features you need including an automated emergency alarm.
The M85 user-friendly display includes icons and indicators like transmit power, VOX ON/OFF, battery status, scan, weather channel and more. These icons and indictors improve the user-experience and operation. The M85 also includes a continuous 20-position rotary selector and ON/OFF volume knob, which is tilted for easy access.
For emergency situations the M85 includes the MOB Alarm, Man Down and lone worker functions. If one of these functions is activated, the radio automatically makes an emergency alarm.
The M85* built-in voice scrambler provides private communications between stations. The multi-function button on the top of the radio can be assigned to the scrambler function for easy activation. Or use the multi-function button to simply change from marine to land mobile frequencies.
In addition to VHF marine channels, the M85 covers 136–174MHz land mobile frequencies. Up to 100 programmable channels are available for land mobile use at 2W output power. Each channel is programmable with CTCSS and DTCS tone. Proper licensing is required to operate within the above land mobile frequencies.
Built to withstand the elements, the submersible M85IS* intrinsically safe VHF handheld is perfect for commercial customers working in harsh environments. The M85IS* plus the BP292IS*, HM184IS* all meet ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:
Specifications| General | |
| Frequency coverage | |
| Marine Tx | 156.025–157.425 MHz |
| Marine Rx | 156.050–163.275 MHz |
| Land Mobile Tx/Rx | 136.000–174.000 MHz |
| Usable channels | |
| Marine Channels Tx/Rx | INT, USA*, CAN, WX* channel (* Varies according to version) |
| Land Mobile Channels Tx/Rx | 100 LMR channels |
| Type of emissions (Channel spacing) | |
| Marine | 25 kHz |
| LMR LMR | 12.5 kHz |
| Antenna Impedance | 50O |
| Current drain | |
| Marine Tx | 1.5A (at 5W) |
| Land Mobile Tx | 0.9A (at 2W) |
| x Max. audio | 0.45A |
| Power supply requirement | 7.2 V DC nominal |
| Operating temperature range | |
| Marine | -20 °C to +60 °C; -4 °F to +140 °F |
| LMR | -30 °C to +60 °C; -22 °F to +140 °F |
| Antenna Impedance | 50O |
| Receiver | |
| Sensitivity (at 12dB SINAD) | 0.25 µV typical |
| Adjacent Channel Selectivity | |
| Marine channels | 70 dB typical |
| LMR channels | 70 dB typical (Wide) / 55 dB typical (Narrow) |
| Spurious response | 70 dB typical |
| Hum and noise | |
| Marine channels | 40 dB |
| LMR channels | 40 dB (Wide) / 34 dB (Narrow) |
| Audio output power | |
| Internal SP | 700 mW typical (at 10% distortion with 12O load) |
| External SP | 700 mW (at 10% distortion with 8O load) |
What's in the Box:
- M85UL
- BP-292UL, battery pack
- FA-SC58V, antenna
- BC-227, desktop charger
- MBB-3, Belt clip
- BC-123SA, AC adapter
- Hand strap
We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
