Overview

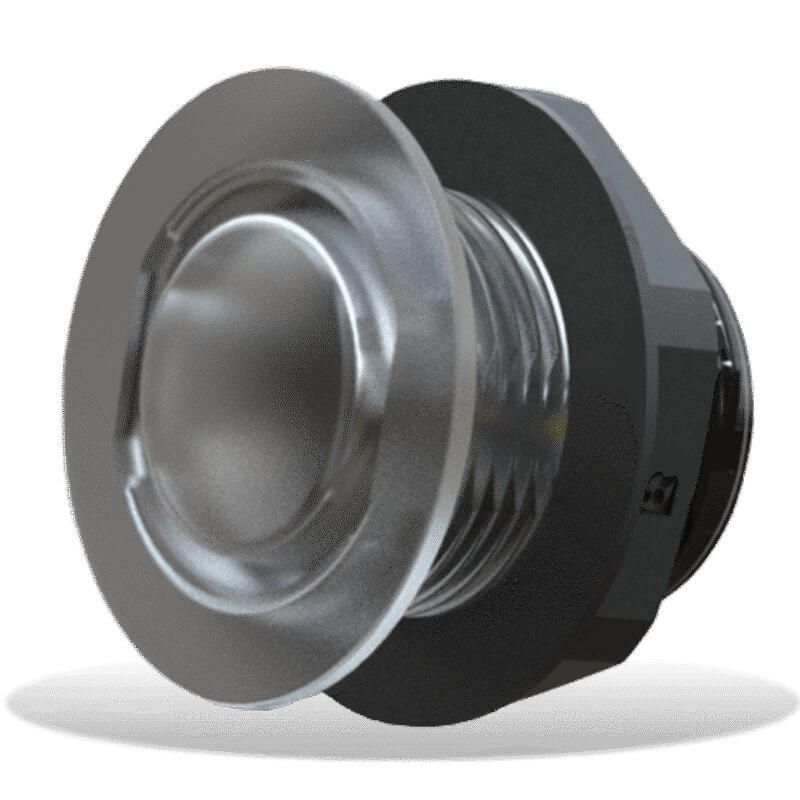

The Lumishore 010-04449-00 is a LW25 livewell light with a chrome bezel for installing in livewells, fish boxes, and other wet compartments where the light may be splashed or fully submerged.

It runs on 10.5 to 31 V DC (12V or 24V systems) and is sealed to an IP68 rating. Output is full-spectrum CRGBW with tunable white from 2700K to 6500K, so you can run anything from a warm bait-well glow to crisp white light for cleanup.

The housing mounts through a 25 mm hole and sits about 30 mm behind the panel, with a 50 mm bezel on the face. Dimming and color control are handled through a LUX Light Control Module, with control from a momentary switch or compatible multifunction display setups.

Key features

• IP68 sealed for wet compartments and submerged use in livewells and fish boxes.
• 10.5 to 31 V DC input for 12V and 24V boat electrical systems.
• Full spectrum CRGBW lighting plus tunable white from 2700K to 6500K.
• Low current draw: 0.1A at 12V and 0.05A at 24V.
• Bulkhead/panel mount format with a 25 mm cutout and about 30 mm of depth behind the mounting surface.
• Chrome bezel with a 50 mm front diameter and a 5.4 mm profile for a clean finished look inside the box.
• Up to 16 lights supported per control module for multi-well or multi-box installs.
• Momentary switch control supported, with the option to expand into compatible display-based control when the system is configured for it.

Installation and setup

Pick a mounting spot where the lens will not be blocked by plumbing, baskets, or standpipes, and confirm you have clearance behind the surface for the 30 mm body plus the wiring bend radius. The cutout is 25 mm, and the light mounts as a bulkhead/panel fitting.

In a livewell or fish box, prep the surface so it is clean and flat, then bed the unit as needed so washdowns and standing water cannot track behind the panel. Leave enough service slack in the wiring so the light can be removed later without straining the connection.

Electrical and system integration

This light is powered and controlled through a LUX Light Control Module. On straightforward installs, a momentary switch can handle on/off, dimming, and color changes through the module. On larger systems, the same module-based setup can be tied into compatible display control hardware for screen-based lighting control.

At up to 0.1A on a 12V system, multiple lights are typically managed as a group through the control module rather than treated like separate high-load devices. Match wiring and circuit protection to your module and the standards you follow on board.

Compatibility and fit

The LW25 form factor suits bait tanks, transom wells, deck fish boxes, and splash wells where you want a small face profile and a through-panel mount. The chrome bezel is 50 mm across on the front, so confirm you have a flat landing area around the cutout for the bezel to sit cleanly.

Use cases on board

Use color modes for quick bait checks at night without blasting the cockpit with white light, then switch to cooler white when it is time to rinse down or inspect the box. This setup makes sense on fishing boats and cruisers that already run, or plan to run, module-controlled utility and accent lighting.

Maintenance and care

Rinse salt and residue off the lens and bezel after trips, and avoid abrasive pads that can haze the surface. If the light lives in a treated livewell, a quick freshwater rinse helps keep buildup from sticking around.
