Overview

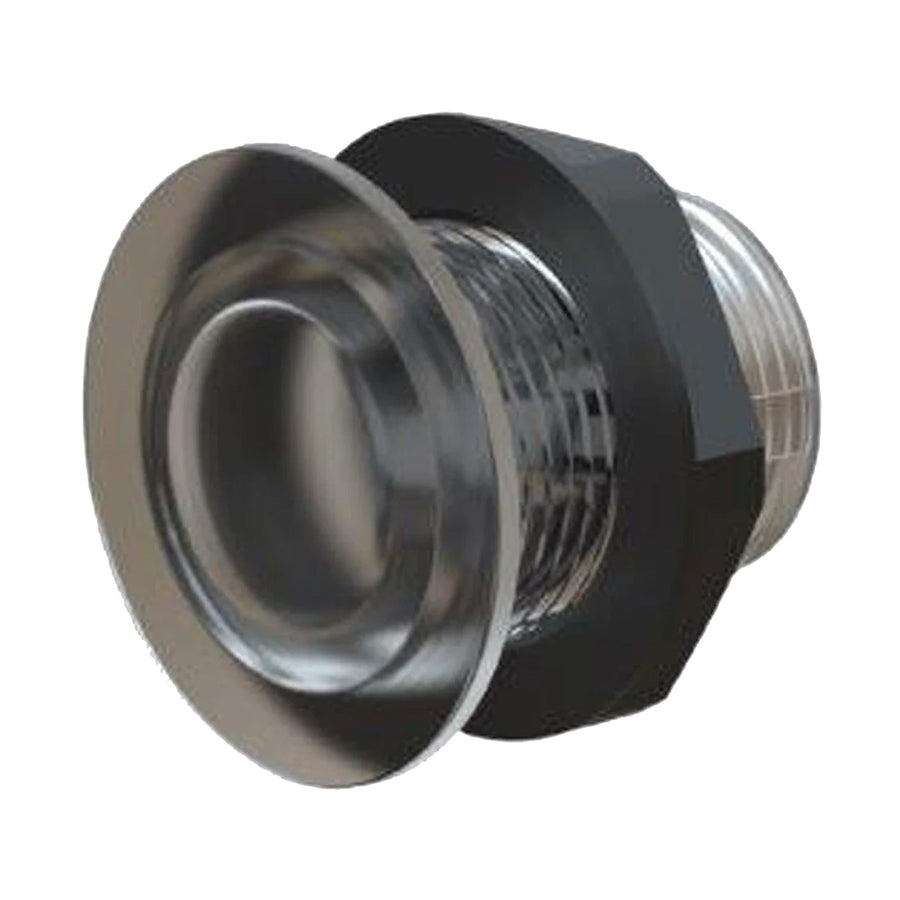

The Lumishore 010-04469-00 is a small, flush-mount LED courtesy light for adding low-level white lighting (5000 K) to steps, walkways, toe-kicks, and other on-board areas that need safe footing at night. It runs on 12V DC only (10 to 15V DC) and puts out 45 lumens while drawing up to 0.1A.

The front bezel measures 33mm (1.3") and the body fits through a 22.5 to 23mm (0.88 to 0.90") round cut-out with about 30mm (1.18") of depth behind the mounting surface. The unit is fully sealed with an IP68 rating, so it holds up well in wet areas and routine washdowns, but it is not intended for permanent submersion.

Wiring stays simple with a 2-wire hookup, and control can be through a standard on/off switch or through an ECLIPSE Command Center. Built-in protections include reverse polarity, surge protection, and ISO 8846 ignition protection.

Key features

• Single-color white output at 5000 K with 45 lumens for step and walkway lighting
• 12V DC only operation (10 to 15V DC), with max current draw of 0.1A
• 2-wire installation for straightforward integration into existing courtesy-light circuits
• Flush panel-mount form factor with a 33mm (1.3") bezel and a 22.5 to 23mm (0.88 to 0.90") cut-out
• Fully sealed, IP68-rated body for wet areas and washdowns, not intended for permanent submersion
• Reverse polarity and surge protection, plus ISO 8846 ignition protection for marine electrical environments

Compatibility and fit

This light is meant for 12V DC systems only and should not be connected to 24V circuits or any AC source. It is suitable for outdoor areas, partially covered locations, and indoor spaces where you want a clean, flush look without a bulky fixture.

Plan the mounting spot on a flat surface, not a curved panel. If you are installing multiple lights along a run, keep wire sizing in mind so the last light in the chain still sees proper voltage.

Installation and setup

Cut a round hole in the 22.5 to 23mm range, test-fit the body, and file as needed for a snug pass-through. Seal between the lens and the mounting surface and around the retaining hardware on the back using clear marine sealant to keep the install watertight.

For basic switch control, wire red to the fused 12V positive feed and black to DC ground. On a standard on/off switch, the single-color version supports simple switching behavior for brightness control; do not connect it to third-party lighting controllers or dimmers.

Electrical and system integration

Expect a typical current draw around 0.08A at 12V, with a typical power draw in the 0.5 to 1W range per light. Use an appropriately sized blade fuse for the circuit and choose cable gauge that keeps voltage drop under control, especially when several lights are fed from one run.

If integrating into an ECLIPSE Command Center system, follow the correct harness connections for positive and ground, and keep single-color lights on their own zone output when the installation includes other light types.

Use on board

This is a solid fit for boats that need subtle guidance lighting on steps, in companionways, around the helm, or along cockpit seating without blasting the cabin with overhead light. It suits owners who want a clean, flush install and a simple 12V DC hookup without adding extra drivers or bulky housings.

Maintenance and care

Clean the lens with a soft cloth using soap and water, and avoid chemical cleaners that can haze plastics over time. Periodically check that the sealant line stays intact and that wiring remains secure in areas that see vibration.
