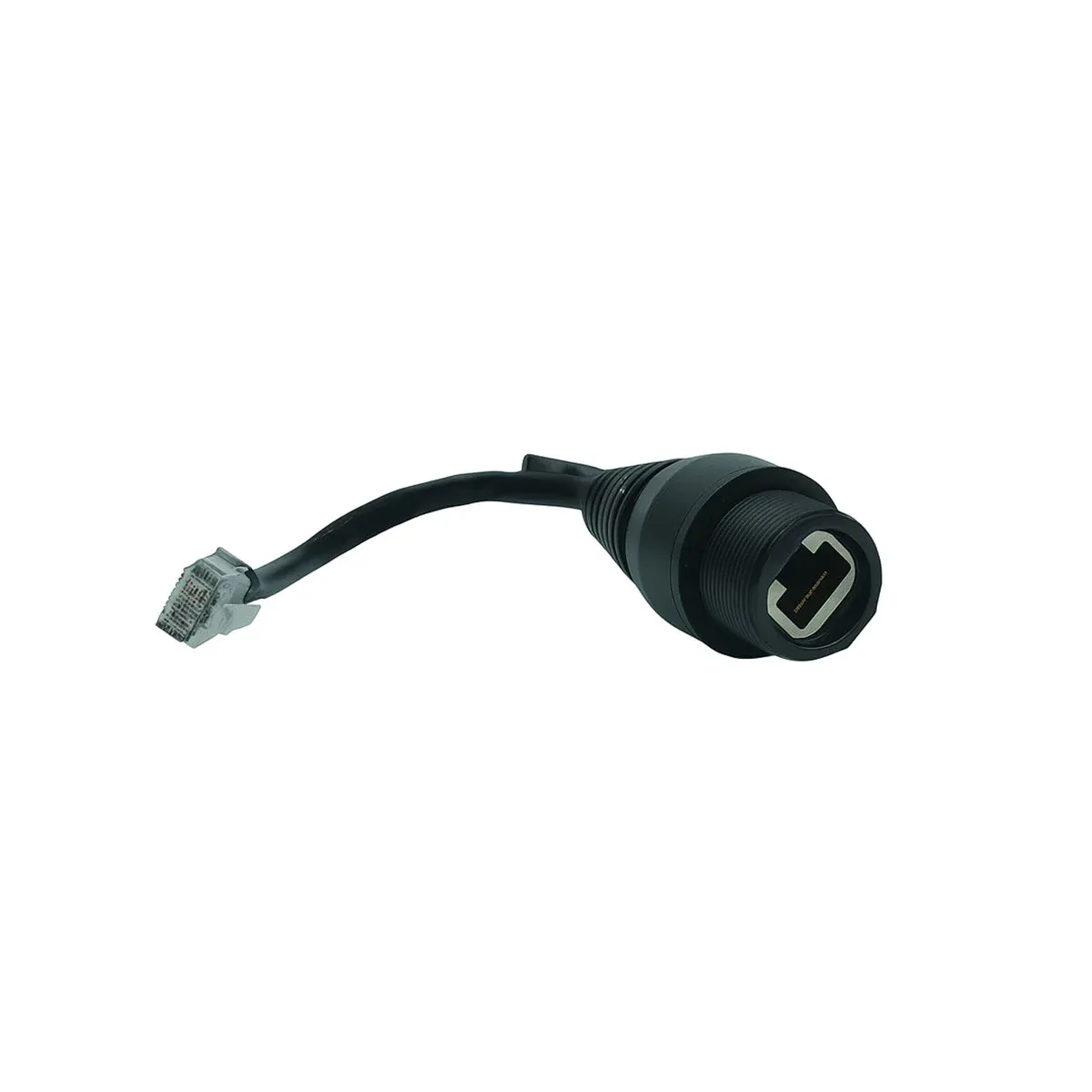

Garmin Lumishore MFD Conversion Cable, For EOS-LUX or ECLIPSE Command Center

Overview

The Garmin 010-14453-00 is a Lumishore MFD conversion cable that links a compatible Lumishore EOS-LUX or ECLIPSE Command Center with a Garmin multifunction display for control of the boat's underwater lighting system. It is used when the lighting system is being integrated into the helm display, so lighting control can sit alongside navigation, sonar, and other onboard screens.

This cable is a fit-focused accessory, not a standalone light controller or power cable. It belongs in a system that already has the correct Lumishore command hardware and compatible Garmin MFD support in place. For boats with underwater lights installed around the transom, hull sides, or swim platform, it helps keep lighting control in the main electronics area where it is easier to reach underway or at the dock.

Key features

• Connects a Lumishore EOS-LUX or ECLIPSE Command Center to a compatible Garmin multifunction display.
• Allows Garmin MFD control of compatible Lumishore underwater lighting systems from the helm display.
• Useful for EOS underwater light installations where the owner wants lighting control integrated with existing Garmin electronics.
• Suited to helm, console, and electronics-compartment routing where the lighting control hardware and display network are installed close together.
• Helps reduce the need to manage underwater lighting from a separate control point when the connected system supports MFD operation.

Compatibility and fit

This conversion cable should be matched to the Lumishore command hardware and the Garmin display installed on the vessel. It is intended for compatible Lumishore EOS-LUX or ECLIPSE Command Center setups connected to a Garmin MFD, so it should not be treated as a universal adapter for every underwater light or every display brand.

Before installation, confirm the vessel has the required Lumishore control components already in place and that the Garmin display is compatible with the lighting-control function. The cable handles the control connection between supported devices; it does not replace the underwater light power wiring, fusing, switching, or controller requirements for the lighting system.

Installation and setup

Install it as part of the helm electronics layout, keeping the cable protected from sharp edges, standing water, and strain behind the dash. A clean route with service slack makes future display or controller work easier, especially on boats where electronics panels are removed for software updates, troubleshooting, or seasonal service.

For refits, this cable is most relevant when Lumishore underwater lights are already fitted and the owner is bringing more control into a Garmin-based helm. For new builds, it should be planned alongside the lighting controller location, MFD location, and cable routing so the finished installation stays neat and accessible.
