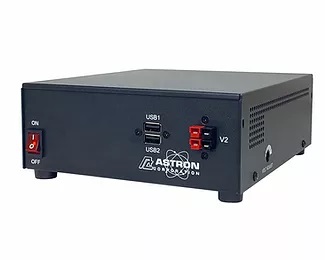

Astron SS-30-AP Power Supply 110/220VAC-12VDC 30A Converter SS-30-AP

(No reviews) Write a Review
$307.53
SKU: APL718715
MPN: SS-30-AP
UPC: 053786336597
Adding to cart… The item has been added
Description

Astron SS-30-AP Switching Desktop Power Supply

Model: SS30-AP

The SS-30 model supports currents up to 25A avg and peak up to 30A ICS (*) peak max. It is ideally suited for use with 12/13.8 VDC communications equipment. Switching technology >82% efficient meets individual power loading requirements. Included is special filter circuitry especially suited for all communications frequencies and HF.

Several protection features are built-in. Included are output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown.

Integration is seamless with standard 12/13.8 VDC equipment. Front panel 'Anderson Power Pole'; terminals and rear panel screw-wire terminals are heavy duty. Connectors are easy accessible which ensures safe and reliable installation.

Specifications
Input voltage 120 to 230 VAC, 50/60Hz (Nominal Automatic Wide-Range selected)
Output voltage 13.8 VDC (User manual adjustable ± 1 V)
2 USB ports: 5.2V, 1.5A per port
Output current 30A peak current - ICS Intermittent Communication Service 25 Amp Max Continuous
Temperature 0 to +50 °C Operating, —20 to +85 °C Storage 120 °C max over-temperature setting
Humidity 5 to 90% RH Operating, 5 to 95% RH Storage (Non-condensing)
Dimensions 2 5/8 in H x 7 in W x 8 1/4 in D
Video
PDF
Specifications
Condition: New

We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
