Airmar ST800PV-N2 NMEA 2000 Speed & Temp Transducer ST800PV-N2

Sold out
Airmar ST800PV-N2 NMEA 2000 Speed & Temp Transducer ST800PV-N2 - Apollo Lighting
Airmar ST800PV-N2 NMEA 2000 Speed & Temp Transducer ST800PV-N2 - Apollo Lighting

  • Perfect Fit, Guaranteed

    Get the right part every time

  • Expert Support

    Our in-house specialists know our products inside and out

  • Enhanced Value & Service

    We go beyond the sale with professional and balanced services

  • Wordwide Delivery

    Enjoy hassle-free worldwide delivery

Airmar ST800PV-N2 NMEA 2000 Speed & Temp Transducer ST800PV-N2

(No reviews) Write a Review
$345.00
SKU: APL766225
MPN: ST800PV-N2
UPC: 801769002423

Out of stock

Description

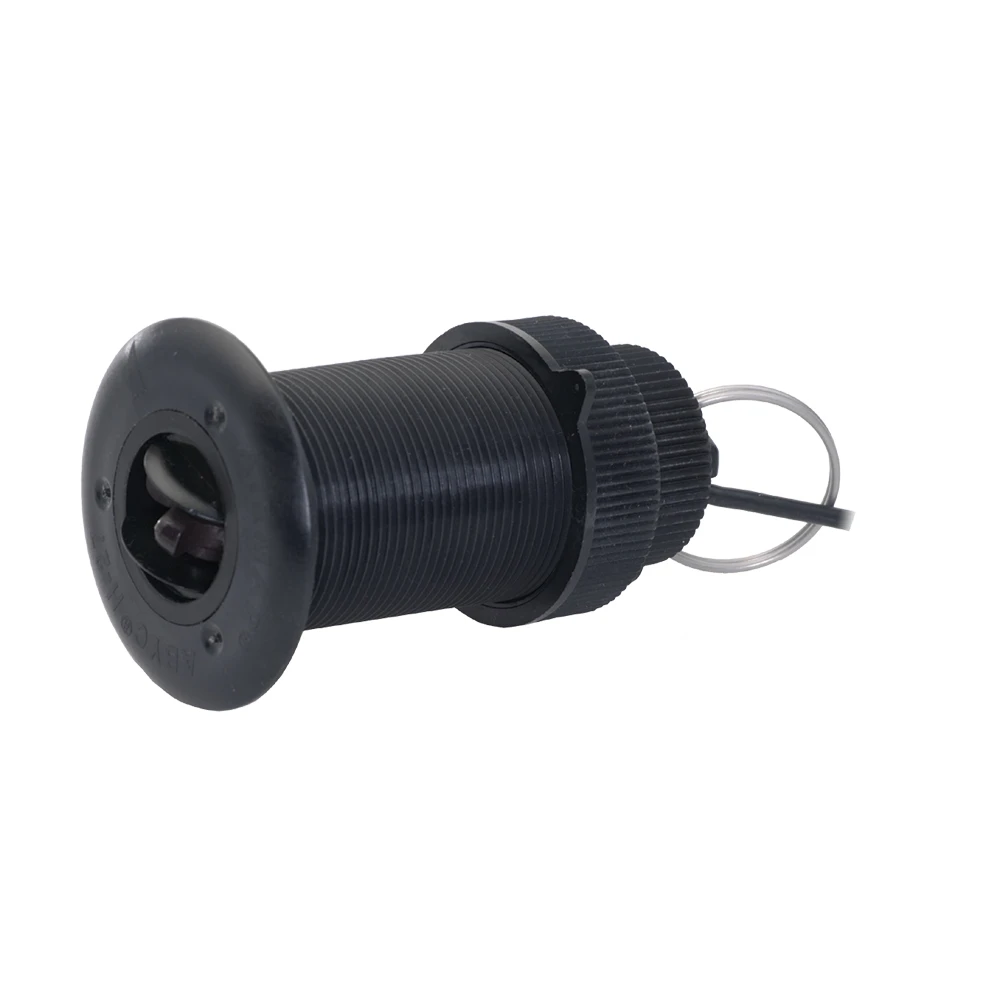

ST800PV-N2 NMEA 2000 Speed & Temp Transducer

The ST800 speed and temperature sensor process digital signals inside the thru-hull housing. Then this Smart™ Sensor sends data to a chart plotter, radar screen, or digital display in either analog or NMEA 2000® format. These low-profile units are nearly flush, minimizing drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Speed and fast-response water-temperature sensing
  • Speed range from 2 to 45 knots (2 to 52 MPH)
  • NMEA 2000 or NMEA 0183 analog output
  • Retractable insert in a low-profile housing with a water valve
  • Available in a plastic (P120) or bronze (B120) housing
  • Airmar's Smart™ Sensor technology

Specifications:

  • Plastic: 0.7 kg (1.4 lb.)
    • Bronze: 1.3 kg (2.8 lb.)
  • Hull Material: Plastic: Fiberglass or metal/Bronze: Fiberglass or wood
  • Hole Diameter: 51 mm or 2"
  • Speed Range: 2 to 45 knots (2 to 52 MPH)
  • Water Temperature: Range: -10 to 40°C (14 to 104°F)/ Accuracy: ±0.5°C (±1.8°F)
  • Pressure Rating: 3 m (10')
  • Data: Output Protocol: NMEA 0183 or NMEA 2000/Update Rate: 1 time/s
  • Power: Supply Voltage: 9 to 16 VDC/Supply Current: <200 mA/NMEA 2000 Load Equivalency Number (LEN): 2
  • Standard Cable Length: NMEA 2000: 6 m (20')/NMEA 0183: 9 m (30')
  • Includes: Blanking plug
  • Certifications and Standards: CE, IEC60945
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
