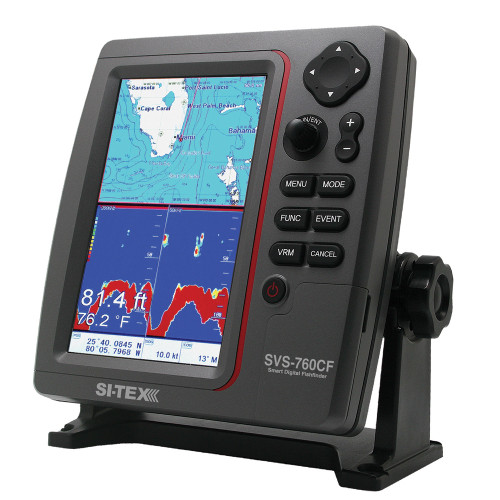

GPS Dual Frequency 600W Sonar System - 7” Color LCD with Internal & External GPS Antenna & C-MAP 4D Card

The versatile SVS-760CF+ is a combination digital echo sounder and chartplotter with a built-in 50-channel GPS receiver capable of running both C-MAP MAX and Navionics Gold cartography.

The 50/200 kHz SVS-760CF+ sounder features a powerful 600W output and a vertically oriented, sunlight-viewable 7.5" color LCD that optimizes the presentation of bottom composition/contour and fish targets beneath the vessel. With depth ranges down to 4,800 feet, a high-resolution color LCD, clearly marked controls, and large, easy-to-use controls, this sounder is ideal for professional users and serious sportfishing duty.

SI-TEX's digital-sounding technology eliminates unwanted noise and provides a sharp image of the seabed and fish targets. The unit's high-speed CPU delivers seamless zooming and provides superior readings even at higher boat speeds. This powerful processor also ensures that even the smallest fish targets are presented on the display. Among the SVS-760CF+'s long list of professional sounder features are the White Line/Black Line Bottom Discriminator to separate bottom-hugging fish from the sea floor, Auto/Manual Gain and Range Selection, Bottom Lock, Bottom Zoom, and A-Scope. Users can select from various fish symbols based on the size and type of targets being marked.

Alarms are provided for depth, fish school, and water temperature for enhanced operation and awareness. The SVS-760CF+ also features an SD card slot, allowing fishermen to back up information and record data on important fishing spots.

The SVS-760CF+ delivers all this fishfinding performance with the added capabilities of a powerful chartplotter. The ability to run both types of cartography on the same machine allows boaters to select the platform that works best for their region, personal preference, and specific boating needs on any given voyage. This machine also provides Navionics Sonar Chart Bathymetric recording capability, allowing boaters to survey their areas and have this data added to the Navionics Sonar Chart Database. The unit is also Navionics Community Layer-capable, allowing users to download the latest information for their chart area. and has a world base chart that covers everywhere down to a 10-mile scale and is supplied with a Navionics chart for North America.

The SVS-760CF+ offers tremendous memory, with storage for 20,000 marks/waypoints, 100 routes, and 50,000 track points. It is also designed for easy integration with SI-TEX's Metadata AIS module (or other AIS receivers) for enhanced situational awareness and safety at sea.

All this technology is contained in a rugged, compact IPX7 waterproof case that can be mounted indoors or out, on any style or size of boat.

Differences between SVS-760CF & SVS-760CF+

The SVS-760CF+ has an updated Android processor and only uses C-Map 4D cartridges.

Features:

• Internal and external GPS antenna
• 7.5" color LCD
• 50/200 kHz
• 20,000 marks/waypoints
• 100 routes
• 50,000 track points
• SD slot card
• 600W output
