Overview

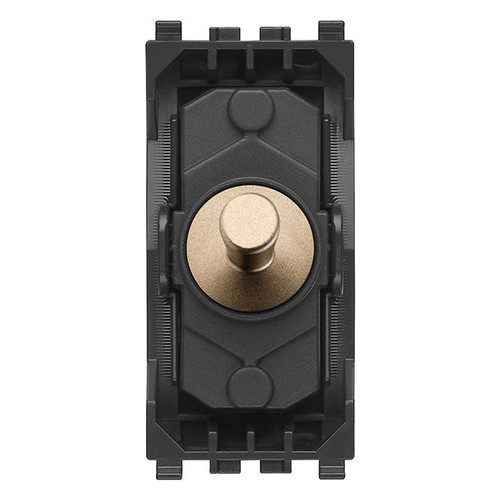

The Vimar EIKON Series is a range of 2P 2-way push buttons rated at 10 A for flush-mounted installations in the Vintage finish line. These switches use a two-pole layout with six terminals and a central OFF position, which makes them suitable for interior control points where the switch face is part of the overall finish of the space.

Each version uses built-in mounting with snap fastening and includes a label space on the device. The body measures 22.30 mm wide, 48.80 mm high, and 63.10 mm deep, which is worth checking when space is limited behind bulkheads, cabinetry, or finished interior panels on board.

This type of switch makes the most sense in protected interior areas on yachts and other vessels that already use Vimar EIKON hardware or are being fitted around that system. It works well where a flush face, metal construction, and finish-matched appearance matter as much as the switching function itself.

Key features

• 2P 2-way push button format with a 10 A rating and central OFF position
• Six-terminal switching layout for the Vintage device format
• Built-in flush mounting with snap fastening for a clean panel finish
• Metal body with integrated label space on the device
• Non-lighted configuration with no signal lamp or monitoring contact
• Compact body size of 22.30 mm x 48.80 mm x 63.10 mm

Variants

This range changes by finish rather than by switch type. The available versions cover Bronze, Gold, Grey, Nickel, Satin Gold, and White within the same EIKON Vintage 2P 2-way push button format.

Across the range, the common points are the 2P switching layout, 10 A rating, built-in mounting style, metal construction, and label space. The visible difference from one version to another is the exterior finish and color tone.

Compatibility and fit

This device belongs to the EIKON system, so the main fit check is compatibility with the rest of the series at the installation point. For marine interiors, that usually means confirming the switch location is already built around EIKON devices and that there is enough depth behind the finished surface for the 63.10 mm body.

Installation and use

The snap-engage mounting helps keep the front face neat once the device is seated correctly in its support, and the label space is useful when several lighting or auxiliary circuits are grouped together at a cabin entrance, saloon panel, or service area. It is a sensible choice for refit and new-build interiors where the switching hardware needs to stay visually consistent across the vessel.
