Overview

The Vimar VM14015.0 is a 2-pole, 1-way switch mechanism rated 16 AX at 250 V AC for switching an AC circuit from a flush-mounted Plana modular panel. It breaks two conductors together, which is useful on boats where you want a clear, single-action isolation for an AC branch circuit rather than switching only one leg.

This mechanism is lightable and supports optional LED orientation/control lighting, with an exchangeable LED module. It is built for a modular arrangement and is completed with a compatible 1, 2, or 3-module button and the matching Plana frame and cover plate, so the visible finish is determined by the parts you pair with it.

With an IP40 protection level and a built-in depth of 24.0 mm (38.7 mm overall depth), it belongs in protected interior locations such as the cabin, nav station, or inside a dry electrical panel, not in areas exposed to spray or washdowns.

Key features

• 2-pole, 1-way switch mechanism for switching and isolating an AC circuit with one rocker action
• Electrical rating: 16 AX at 250 V AC
• Flush-mounted modular format (1 module) for Vimar Plana system layouts
• Screw terminal connections for secure wiring terminations
• Optional illumination for control and orientation with an exchangeable LED light source
• Halogen-free thermoplastic body with a glossy, untreated surface
• IP40 protection for dry, interior installations
• Body size: 22.3 mm wide, 49.0 mm high, 38.7 mm deep (24.0 mm built-in depth)

Compatibility and fit

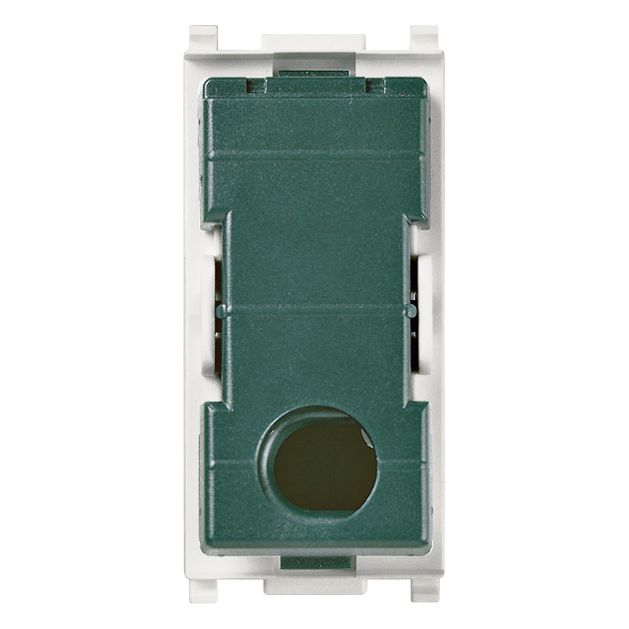

This is the switch mechanism only. It is meant to be completed with the appropriate Plana button (1, 2, or 3-module) and installed into the matching Plana modular support and cover system. The mechanism body is green, while the visible rocker and plate finish depend on the Plana parts selected for the final installation.

Installation and setup

Plan the install like any onboard AC device: isolate shore power and inverter feeds, verify the circuit is dead, and confirm the upstream breaker is sized for the load. Land conductors cleanly in the screw terminals and leave enough service loop so vibration does not work the wiring loose over time. In spaces that see humidity swings, mount it in a protected box or panel area to keep condensation and salt air away from the terminals.

Use on board

This switch is a solid match for interior AC loads up to its rating, such as cabin lighting circuits, outlets on a lightly loaded branch, or dedicated small appliances where you want a 2-pole on and off at the wall. The optional orientation lighting helps when you are moving through the boat at night without turning on overhead lights.

Maintenance and care

During routine electrical checks, confirm the mechanism remains firmly seated in its support and re-check terminal tightness if the circuit has seen heavy use or noticeable vibration. Keep cleaning gentle and avoid solvent-based products inside the switch area to prevent contamination of contacts and plastics.
