Overview

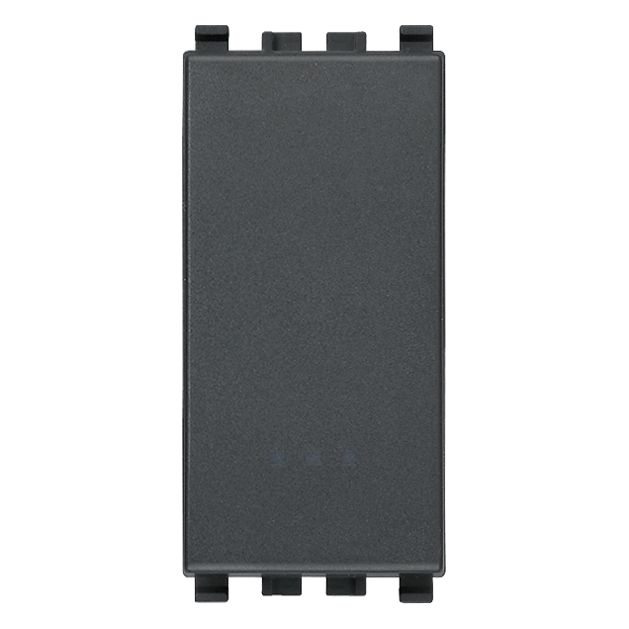

The Vimar EIKON Series is a flush-mounted 1P 20AX 250V 2-way switch range for AC circuits that need switching from two locations. It comes in 1-module and 2-module formats, supports optional LED control or orientation lighting, and is rated for self-ballasted lamps up to 250 W.

This switch uses screw terminals, a replaceable button, and a modular body for EIKON installations. IP40 protection and halogen-free thermoplastic construction suit protected interior spaces on board, such as cabins, passageways, and helm areas that stay out of direct spray.

Key features

• 20AX, 250V~ rating for mains circuits controlled from two switch locations
• Optional replaceable LED for control or orientation lighting
• Flush-mounted modular format with 1-module and 2-module versions
• Screw-terminal wiring with a 25 mm built-in depth
• IP40 protection for sheltered interior mounting locations
• Halogen-free thermoplastic body with grey, silver, or white finish options

Variants

Across the range, the changes are finish and module width. Grey, silver, and white versions are offered, and each finish is available as either a 1-module or 2-module switch.

The electrical rating stays at 20AX, 250V~, with the same 2-way switching function, optional LED lighting, and screw-terminal connection. Grey and white versions use a matt untreated surface, while silver uses a matt lacquered surface.

Compatibility and fit

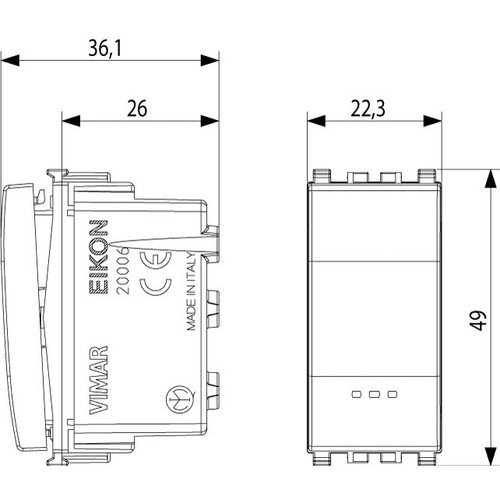

This is a 250V AC switch range, so it fits mains circuits rather than 12V or 24V DC panel systems. The 1-module versions measure 22.3 x 49 x 36.1 mm with a 25 mm built-in depth, while the 2-module versions measure 44.8 x 49 x 36.1 mm with the same 25 mm built-in depth.

Installation and onboard use

On board, it fits interior lighting circuits where one load needs control from two points, such as a cabin light switched at the entry and near a berth. It is suited to dry, sheltered mounting locations and to installations built around Vimar EIKON modular devices, where matching the finish and module width matters for a tidy panel layout.
