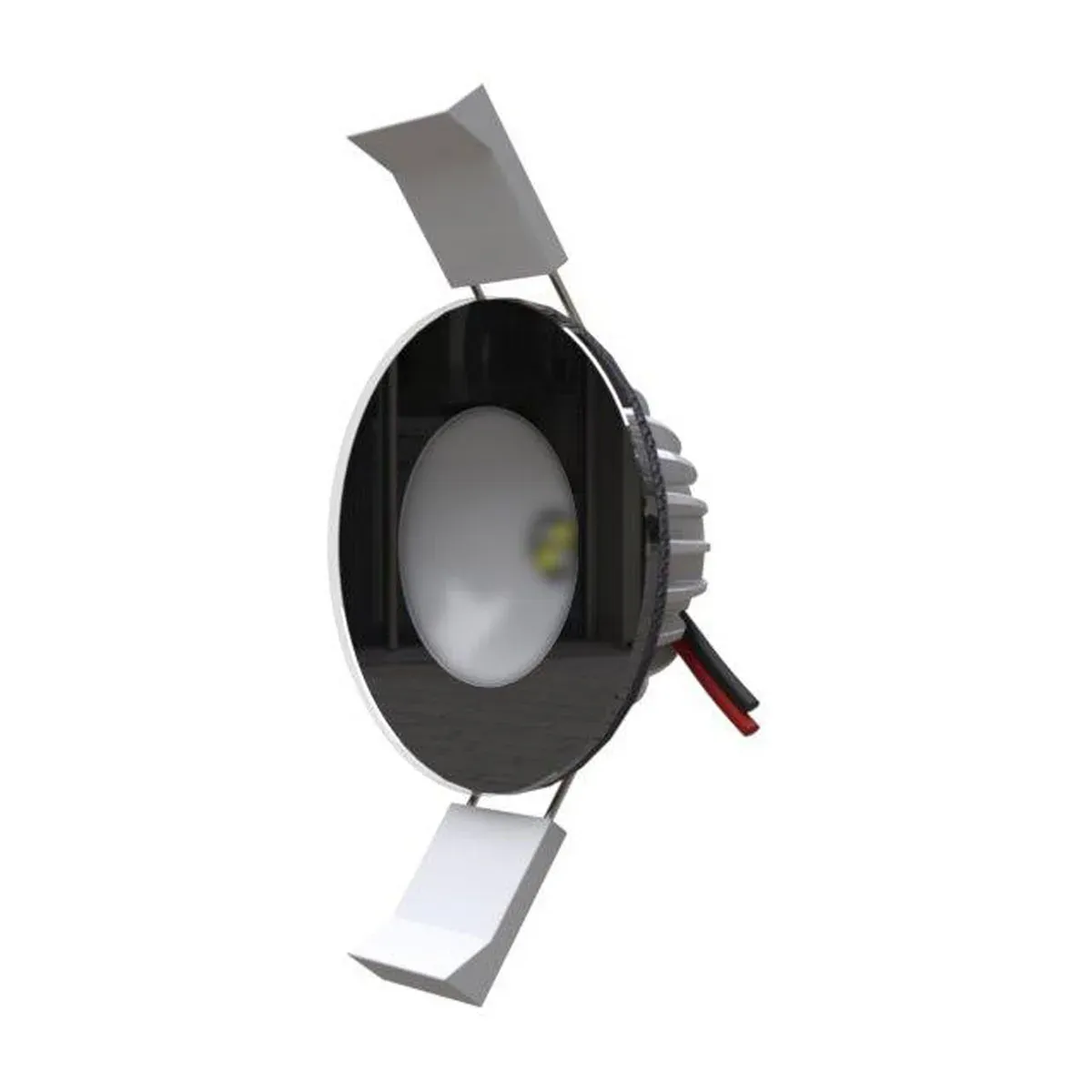

Lumishore ECLIPSE DL55 LED Downlight, 12V, IP67, 64mm Bezel

Overview

The Lumishore ECLIPSE DL55 is a low-profile LED downlight for overhead lighting in cabins, cockpits, hardtops, helm areas, and other indoor or outdoor spaces on board. It runs on 12V DC only, with a 10 - 15V DC supply range, and uses a shallow 21.2 mm body depth that helps when space behind the liner or panel is limited.

The DL55 has an IP67 ingress rating, a 64.0 mm front bezel diameter, and a 50.8 mm hole diameter for fitting. The 2-wire installation keeps wiring simple, while the built-in driver reduces the need for separate driver hardware at each light location.

Control can be kept simple with an on/off switch, or expanded through the ECLIPSE Command Center for dimming and zone control where supported by the selected light configuration.

Key features

• IP67-rated downlight for overhead spaces exposed to spray, washdowns, and damp marine air.
• 12V DC only operation with a 10 - 15V DC supply range for common small-boat and yacht electrical systems.
• Shallow 21.2 mm installed depth helps with tight headliner, hardtop, cabin, and cockpit installations.
• 64.0 mm front bezel with a 50.8 mm cutout, useful when checking fit before replacing an existing fixture.
• Simple 2-wire electrical installation with an internal driver.
• Stainless steel spring clips hold the light in place, with marine adhesive listed as an optional installation method.
• Available in single-color, dual-color, and White/RGB configurations to match task lighting, courtesy lighting, or mood lighting needs on board.
• Compatible with basic on/off switching or the ECLIPSE Command Center, depending on the control layout planned for the vessel.

Variants

This DL55 range varies by bezel finish and light color. The listed finish options are White, Black, and Chrome, while the light color options include Blue, White, Blue/White, and White/RGB.

White light suits general overhead illumination, blue is often used for low-glare accent or night lighting, Blue/White gives two lighting looks from one fixture, and White/RGB adds color control for social areas and cockpit ambience. Finish selection affects the visible trim once installed, so it is worth matching it to the headliner, hardtop, console, or surrounding hardware.

Installation and fit

Before cutting, check the available depth behind the mounting surface and confirm the 50.8 mm cutout against the planned location. The low profile makes the DL55 a practical fit for many overhead panels, but clearance for wiring and the fixture body should still be checked on the actual boat.

The 12V DC only input is important for system planning. Boats with 24V house systems will need an appropriate 12V supply arrangement rather than connecting this light directly to 24V.

Use on board

The DL55 is a good match for owners refitting overhead lighting in cabins, helm stations, cockpit overhangs, and covered exterior areas where a small recessed fixture is preferred over a surface-mounted light. It also works well when several lights are being grouped into zones for clean, consistent lighting across a larger area.
