Overview

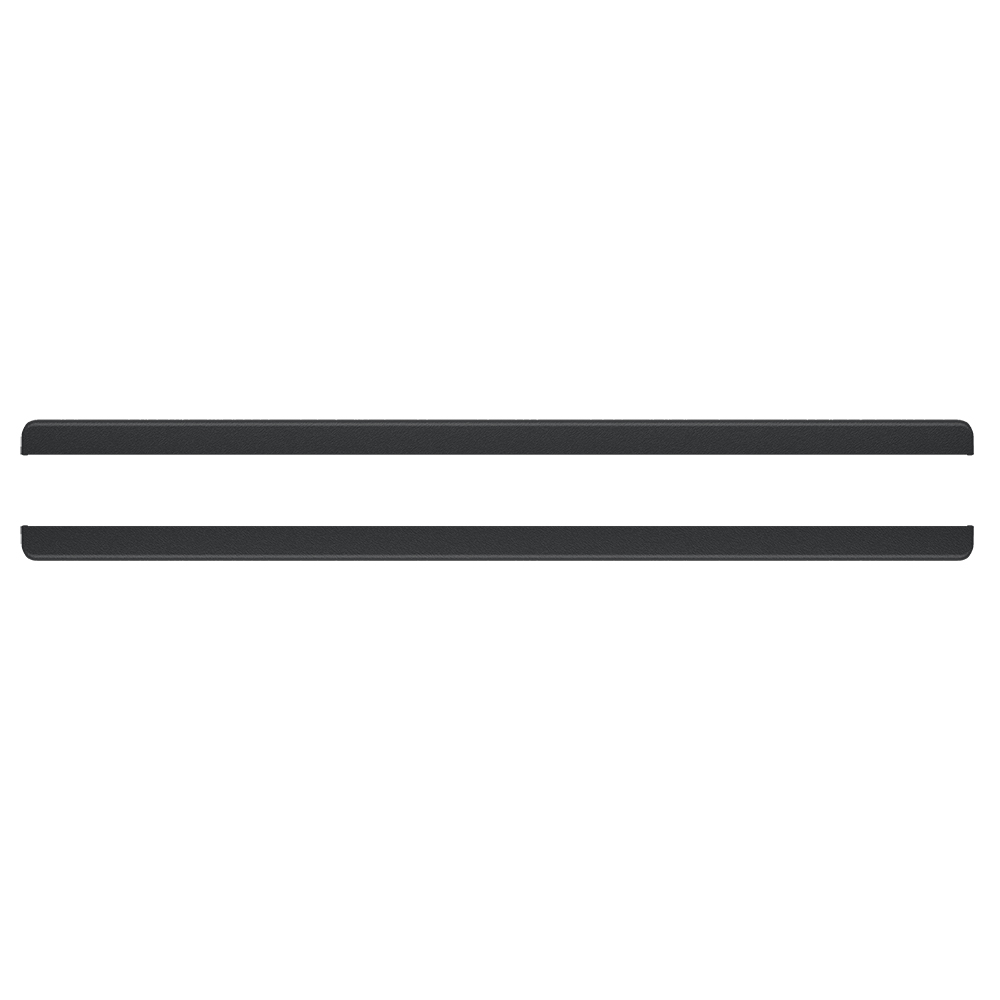

The Garmin 010-12800-02 is a trim piece snap cover used when mounting a GPSMAP 8416 or 8616 (16-inch) display into a glass helm.

This is a finishing and replacement part for the helm install, meant to replace a missing or damaged snap cover so the trim around the display sits properly and the panel edge looks tidy. It is a non-electrical accessory and does not connect to power, NMEA 2000, or the Garmin Marine Network.

Key features

• Intended for Garmin GPSMAP 8416 and GPSMAP 8616 glass helm installations
• Snap cover style trim piece for restoring the helm finish after service or refit work
• Helps keep the perimeter around the display looking clean and properly finished
• No wiring or software steps, it installs as a physical trim component

Compatibility and fit

This part matches the GPSMAP 8x16 footprint used by the GPSMAP 8416 and 8616. If your helm has a different GPSMAP size or a different mounting method, the trim pieces and snap covers are not interchangeable.

It is used with a glass helm style mount. Bracket and bail mounts typically do not use this type of trim snap cover.

Installation and setup

Installation is a simple snap-in fit. Before pressing it into place, wipe the trim area so salt, grit, or dried cleaner does not keep the cover from seating fully.

After installation, check that it sits flush all the way around. If it feels loose, re-check alignment with the trim and confirm you are working on a GPSMAP 8416 or 8616 glass helm setup.

Use on board

Small trim pieces are easy to lose during helm work, especially when pulling displays for wiring changes or seasonal service. This snap cover is a good match for owners reassembling a GPSMAP 8416 or 8616 glass helm and wanting the install to look complete again without reworking the panel.
