Overview

The Garmin Navionics+ NSEU009R is an electronic chart package covering Portugal and Spain, Northwest, for use on compatible Garmin chartplotters. It combines coastal and inland mapping in the Navionics chart style, with depth contours and tools that help you read shallows and structure. Your purchase includes a one-year subscription that unlocks daily chart updates through the ActiveCaptain app.

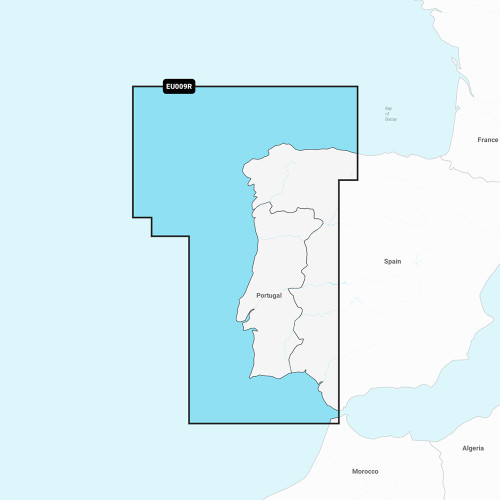

Coverage includes the Atlantic coast of Spain from Gijon to Cadiz and all of Portugal, including Lisbon. It also covers the Guadalquivir River up to Seville, Spain.

Key features

• Portugal and Spain, Northwest coverage in two versions: Garmin Navionics+ (chart code NSEU009R) and Garmin Navionics Vision+ (chart code NVEU009R).
• One-year subscription included for daily chart updates and downloadable content through the ActiveCaptain app.
• Depth range shading for up to 10 ranges so you can highlight the depths you care about for navigation or fishing.
• Shallow water shading for a user-defined depth to make skinny water stand out on screen.
• Detailed contours up to 1 foot where available, giving a clearer read on bottom shape.
• Auto Guidance+ route suggestions that use your chosen depth and overhead clearance settings as part of the route calculation.
• Available either as a microSD/SD card or as a digital download, depending on how you prefer to manage charts on board.

Variants

This chart coverage is offered in multiple configurations, with differences in chart version and delivery format.

Garmin Navionics+ focuses on the core chart presentation and navigation layers. Garmin Navionics Vision+ adds premium visual layers such as high-resolution relief shading, 3D views, aerial photos, and satellite imagery.

• 010-C1236-20: Version Garmin Navionics+; Format microSD/SD. A physical card that installs by inserting it into the chart slot on a compatible plotter.
• 010-D1838-20: Version Garmin Navionics+; Format Download. Delivered digitally and downloaded using Garmin Express.
• 010-C1236-00: Version Garmin Navionics Vision+; Format microSD/SD. Includes the Vision+ premium visual layers for added perspective when working into ports and along unfamiliar shorelines.
• 010-D1838-00: Version Garmin Navionics Vision+; Format Download. The Vision+ feature set in a digital download format, managed through Garmin Express.

Compatibility and setup

These charts are built for compatible Garmin chartplotters, so it is worth checking your exact model before purchase. For card versions, confirm whether your unit uses a microSD or full-size SD chart slot. For download versions, plan on using a computer with Garmin Express to retrieve the charts and manage updates.

To keep the charts current, pair your chartplotter with the ActiveCaptain app and activate the included one-year subscription. Once the subscription ends, the charts and any content downloaded during that period remain available, but you will not be able to download additional updates or new content unless you renew.

On-the-water use

This coverage is a strong match for skippers running the Atlantic side of the Iberian Peninsula, from coastal cruising to port-hopping passages, and for anglers who like to work a specific depth band. Auto Guidance+ can speed up route planning, but it is still a planning aid, so the suggested path should always be reviewed against conditions, local notices, and good seamanship.
