Overview

The Vimar Eikon 20331 is a polarized 2P SELV socket outlet for 24 V circuits, rated at 6 A and made for plugs 01616 and 01617. It uses one 3 mm pin and one 4 mm pin with 12.4 mm spacing between centres, so it suits low-voltage connections where the plug orientation needs to stay fixed.

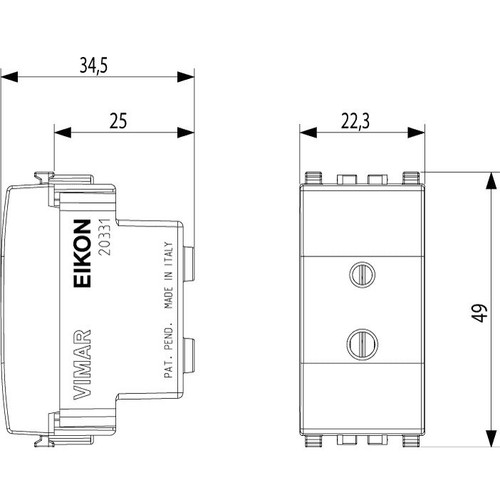

For an onboard electrical fit-out, this outlet is intended for low-voltage audio, signal, or similar circuits rather than a mains receptacle. The device body measures 22.3 x 49 x 34.5 mm, which is useful when you are checking space behind a console, cabin panel, or other protected mounting surface within a Vimar Eikon installation.

Key features

• Polarized 2P 24 V SELV outlet rated at 6 A for low-voltage circuits
• Accepts plugs 01616 and 01617 with one 3 mm pin and one 4 mm pin at 12.4 mm centres
• Compact body size of 22.3 mm width, 49 mm height, and 34.5 mm depth
• Open-face outlet with no hinged lid and no locking feature
• Available in grey, silver, and white to match different Eikon interior finishes

Variants

This outlet is offered in three finish options within the Eikon 20331 range.

The visible colour changes between variants. The polarized 2P 24 V SELV format, 6 A rating, and compatibility with plugs 01616 and 01617 remain the same across the range.

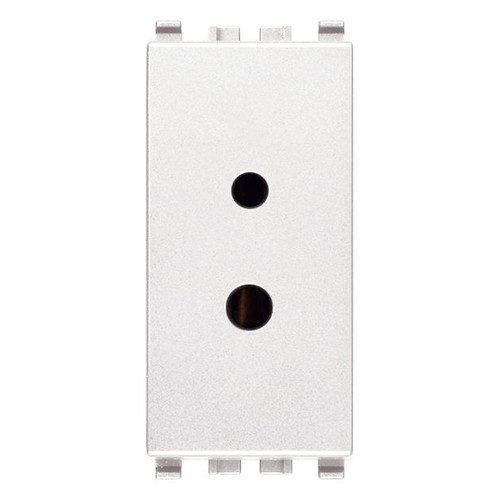

• VM20331.B: White, similar to RAL 9016. This finish keeps the outlet understated on light panels and white switch surrounds.
• VM20331.N: Silver, similar to RAL 9022. This version suits installations with cooler metallic trim or mixed silver hardware.

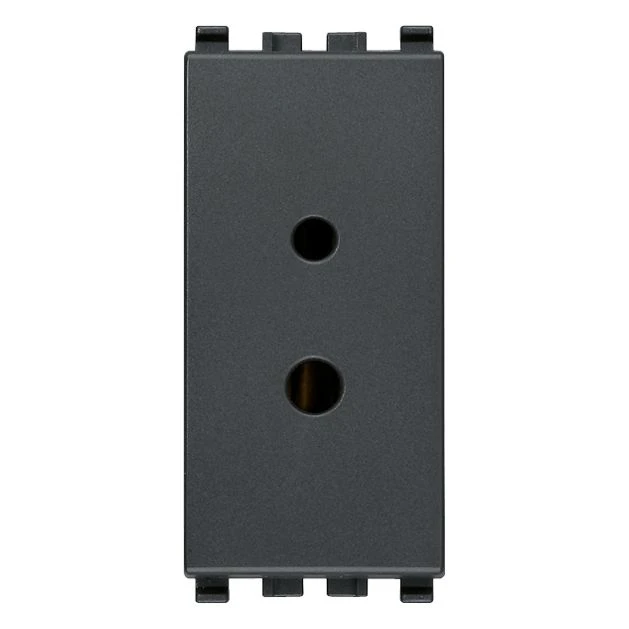

• VM20331: Grey, similar to RAL 7024. This finish works well on darker panels and more technical-looking interiors.

Compatibility and fit

This is a 24 V SELV outlet, so it is intended for low-voltage circuits and the matching polarized plug pattern, not for AC shore-power use or standard household plugs. On boats that carry both AC and DC services, that helps keep the connection point clearly dedicated to the equipment it is meant to serve.

Because the outlet face has no lid, it makes more sense in protected interior locations than in open spray areas. It is a good match for enclosed helm stations, cabin electronics panels, and other inside positions where the surrounding installation already uses Vimar Eikon devices.

Use on board

This outlet suits boats that need a fixed low-voltage connection for audio or signal-related equipment and want that connection to match the rest of the cabin switchgear. It fits best where the electrical requirement is straightforward: a 24 V SELV outlet, a matching polarized plug, and a clean finished appearance at the mounting point.
