Overview

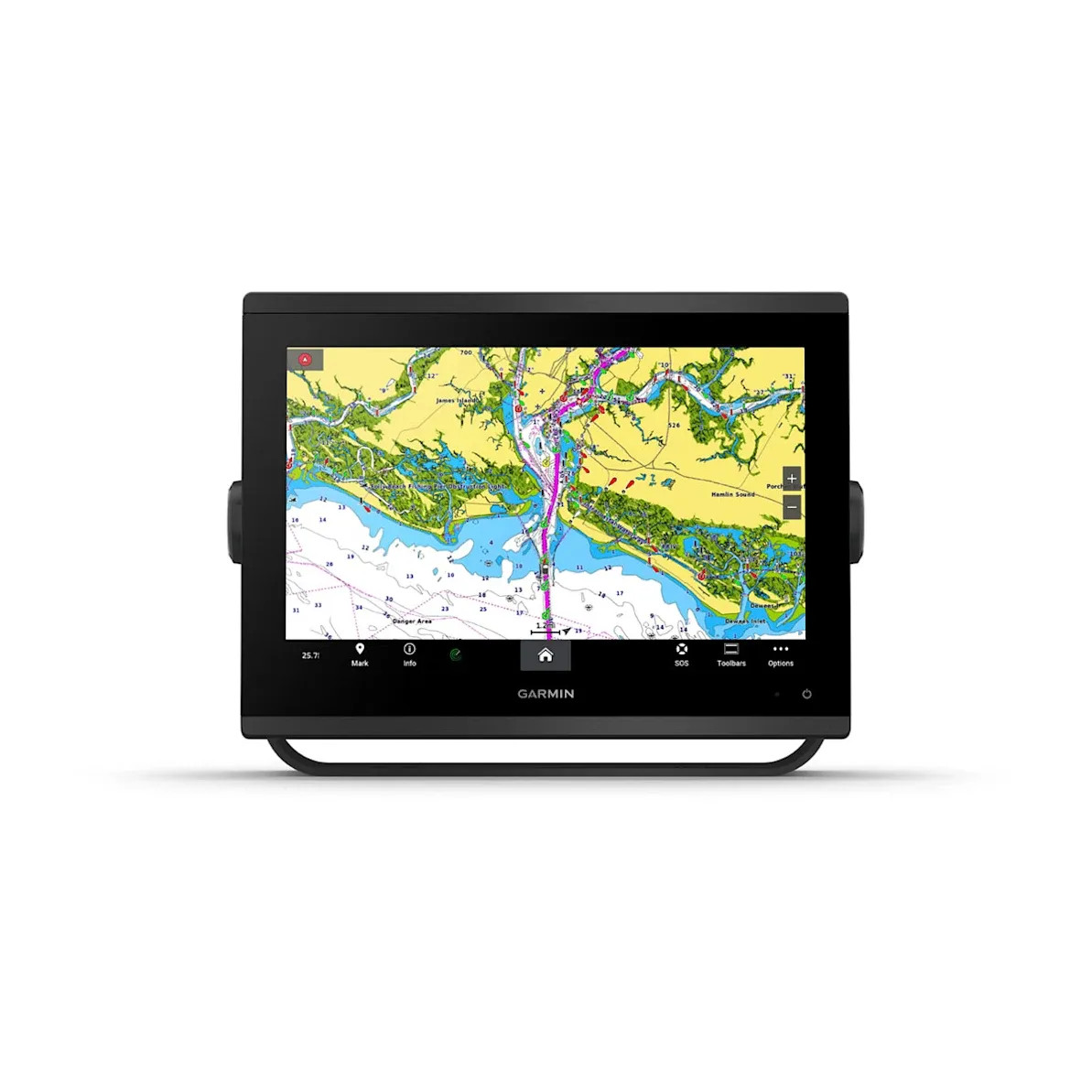

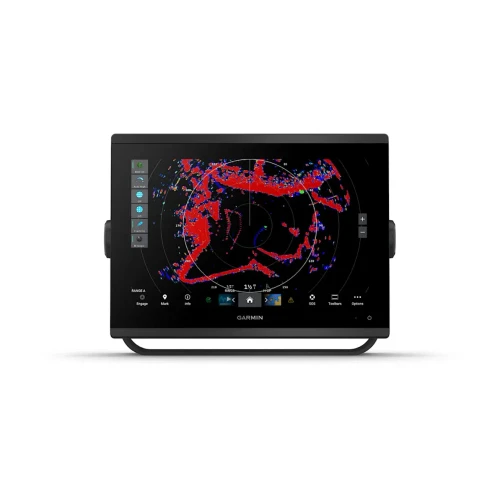

The Garmin 010-02367-61 is a 12.1 inch touchscreen chartplotter and fishfinder that brings Garmin Navionics+ mapping and built-in sonar into a single helm display. The WXGA screen runs 1280 x 800 resolution and the unit carries an IPX7 water rating for real-world spray and washdown conditions.

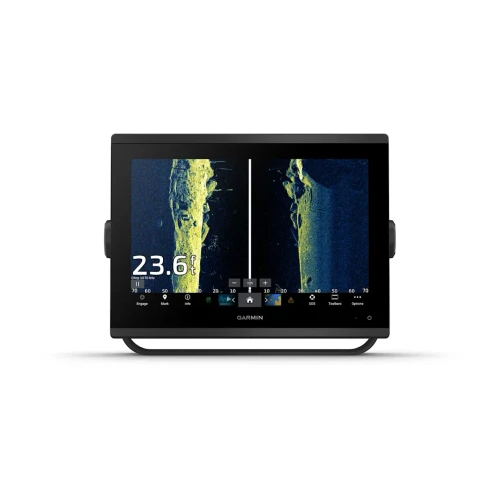

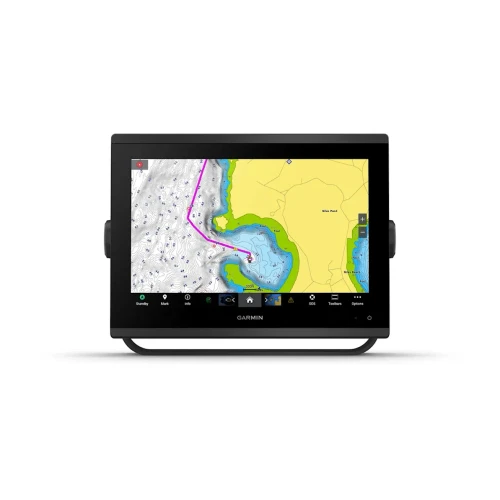

Navionics+ charts come on the included microSD card, and the package includes a 1-year subscription for downloadable daily updates. Under the waterline side, it supports Ultra High-Definition SideVü and ClearVü scanning plus 1 kW CHIRP traditional sonar through the 12-pin transducer port (a compatible transducer is required and is not included).

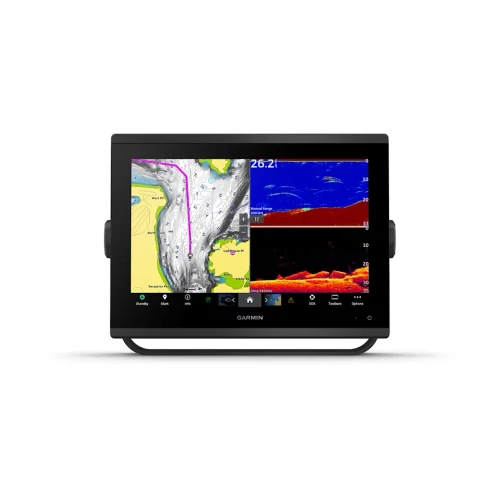

This unit makes the most sense for boats where the helm screen needs to handle both navigation and fishing, including center consoles, bay boats, cruisers, and performance sailboats that want sailing features alongside charting and sonar.

Key features

• 12.1 inch IPS touchscreen display with 1280 x 800 WXGA resolution
• IPX7 water rating with a housing built from polycarbonate plastic and die-cast aluminum
• Built-in sonar support for Ultra High-Definition SideVü and ClearVü scanning plus 1 kW CHIRP traditional sonar (transducer required, sold separately)
• Garmin Navionics+ charts on the preinstalled microSD card, including a 1-year subscription for downloadable daily updates
• Power input from 10 to 32 Vdc for 12V and 24V systems, with typical current draw around 1.7 A at 12 Vdc
• NMEA 2000 and NMEA 0183 networking for sharing data with compatible marine electronics
• Two Garmin Marine Network ports for connecting and sharing with other compatible Garmin devices
• Built-in Wi-Fi plus Bluetooth and ANT+ connectivity for app features and compatible accessories
• Two microSD card slots on the back of the unit for charts and data

Compatibility and fit

The unit measures 12.1 x 8.9 x 3.2 inches, so it fits well on larger helm panels and retrofit dash layouts where a 12-inch display makes sense. It supports bail mounting and flush mounting, and it helps to leave room behind the unit for cable bends and for access to the rear microSD slots.

It is rated for use from -15 C to 55 C, which covers typical cockpit, pilothouse, and flybridge installs. For open-helm boats, a mounting position that reduces direct spray and hard sun glare will make day-to-day use easier and also keeps connectors cleaner over time.

Electrical and system integration

Power is straightforward on both 12V and 24V boats thanks to the 10 to 32 Vdc input range. Plan your supply and protection based on the boat wiring standards in use, and keep the power run clean and well-supported so vibration does not work the terminals loose over time.

On the network side, it ties into NMEA 2000 for shared data like heading, wind, depth, engine information, and instrument pages when those sources are present on the boat. It also supports NMEA 0183 for devices that still live on that side of the system.

Sonar and transducer notes

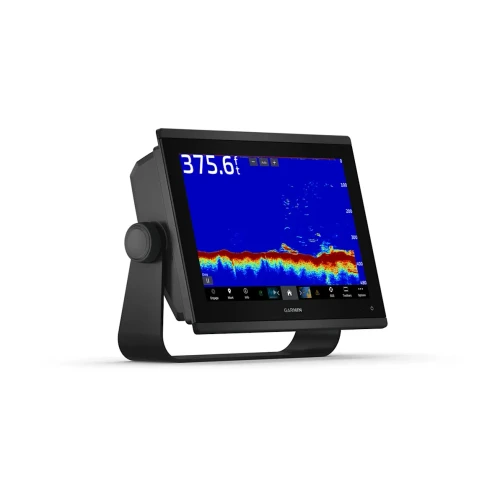

This model has built-in sonar support, but it still needs a compatible transducer connected to the 12-pin transducer port to actually transmit and receive sonar. If you already have an older 8-pin Garmin transducer, the included adapter cable helps you step into the 12-pin sounder connection without replacing everything at once.

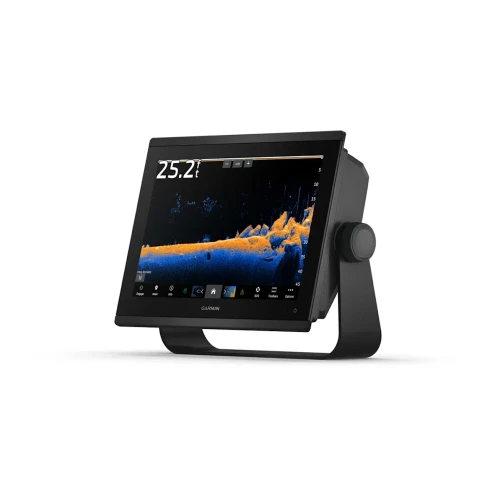

It also supports Panoptix and LiveScope live sonar when paired with the appropriate hardware, which is a common upgrade path for anglers who want real-time sonar views at the bow or over structure.

Connections and ports

For boats that run a connected helm, the rear panel supports NMEA 2000, NMEA 0183, J1939, two Garmin Marine Network ports, and a 12-pin transducer connection. It also includes video input (BNC composite) and video output (HDMI), plus USB and an external GPS antenna connection, which gives you flexibility for multi-display setups and shared video sources.

Maintenance and care

Rinse and wipe the face and bezel with fresh water after salt exposure, then dry with a soft cloth. Keep an eye on connector areas for salt creep, and use the protective cover when the boat sits uncovered to cut down on UV exposure and grime buildup at the helm.

What’s included

• GPSMAP 1243xsv chartplotter with Garmin Navionics+ charts for the U.S. and Canada (microSD card preinstalled)
• Power cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• 8-pin transducer to 12-pin sounder adapter cable
• Documentation
