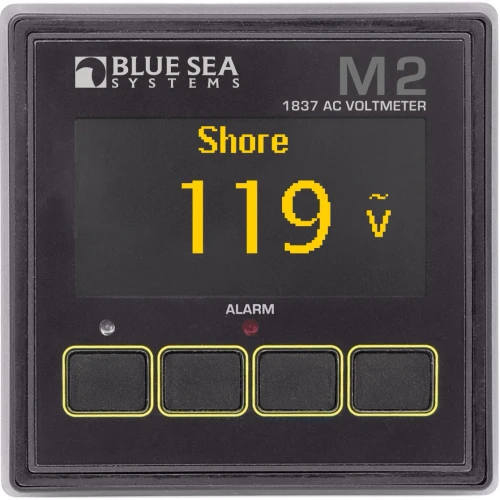

Blue Sea Systems M2 OLED Digital Monitor, IP66

Overview

The Blue Sea Systems M2 OLED Digital Monitor is a compact marine monitoring platform for keeping watch over AC power, DC battery systems, tank levels, bilge pump activity, or combined vessel systems, depending on the selected configuration. The range uses an OLED display with auto-dimming and adjustable alarms, giving the helm, nav station, electrical panel, or service area a clear readout without taking up much panel space.

These monitors are built around practical onboard checks: battery voltage and current, shore power or generator voltage, AC frequency, tank level, bilge cycle activity, and system alarms. The display size is 55mm x 28mm, the DC supply input is 7-70V DC, and the front carries an IP66 rating for the exposed face of the installed unit.

For refits and panel upgrades, the M2 line is useful when a boat needs digital information in one visible location rather than several separate analog gauges. It suits cruising boats, fishing boats, workboats, and sailboats where electrical status, tanks, or bilge activity need to be checked quickly before departure, while charging, or during a longer run.

Key features

• OLED display with auto-dimming so readings remain visible in changing cabin, cockpit, or panel lighting.
• Adjustable alarms help flag high or low readings before they become harder-to-trace electrical or system issues.
• IP66-rated installed face helps the monitor handle spray, washdown exposure, and damp marine panel locations.
• 7-70V DC supply input works with common 12V, 24V, and 48V DC vessel electrical systems.
• External MOSFET relay capability lets measured values be used to trigger supported external circuits or alarms.
• Range covers dedicated AC meters, dedicated DC meters, tank monitoring, bilge monitoring, and a vessel systems monitor.

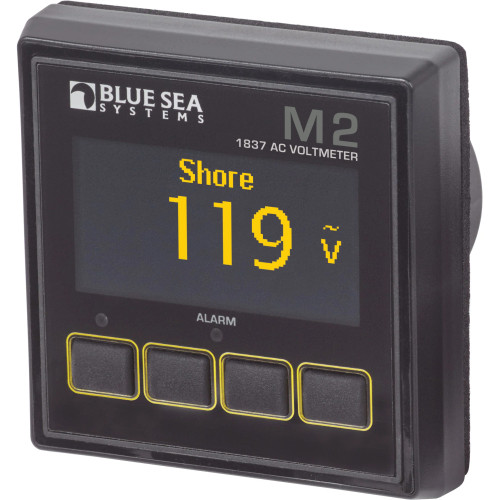

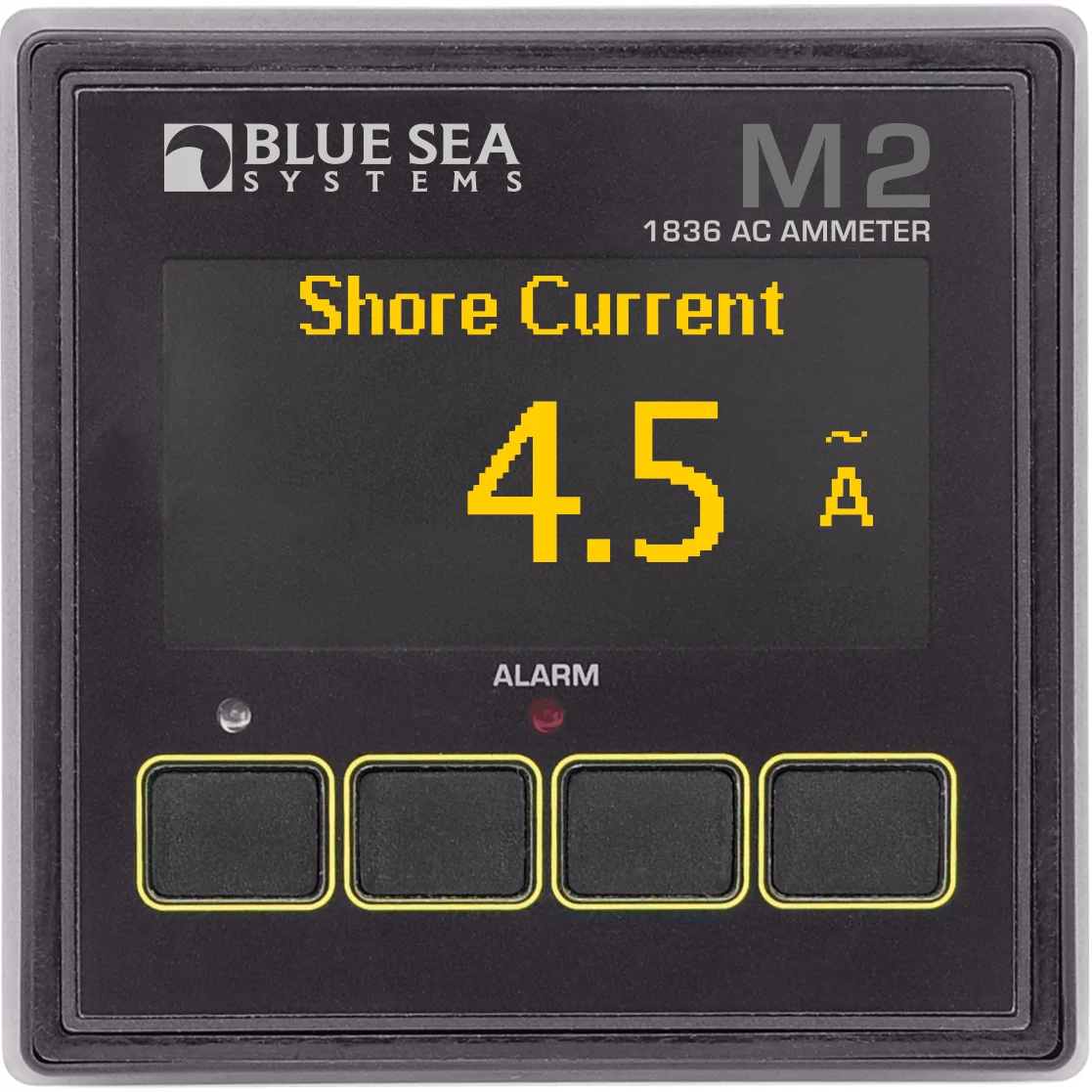

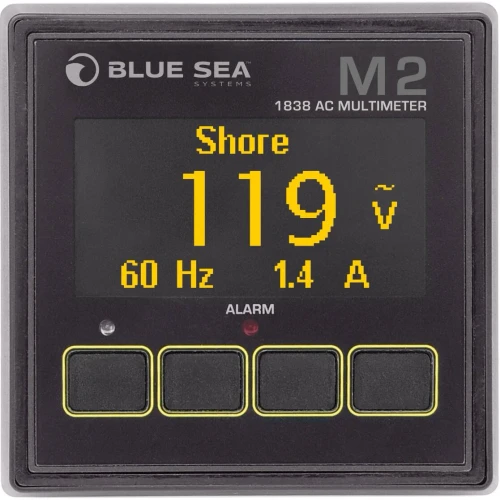

• Selected AC configurations monitor voltage, current, frequency, and power, with voltage functions covering 50 to 250V AC.

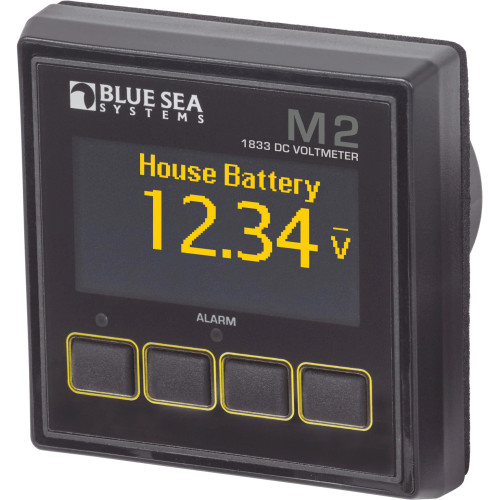

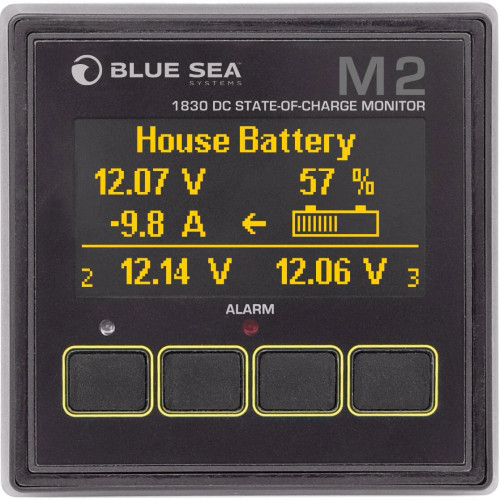

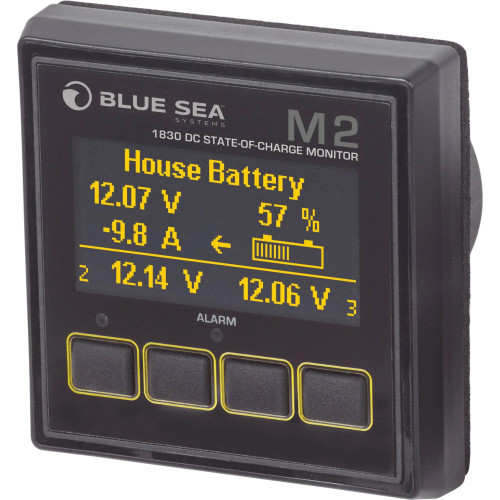

• Selected DC configurations monitor voltage, current, and battery state of charge, with DC voltage functions covering 8 to 70V.
• The Vessel Systems Monitor configuration adds NMEA 2000 certified connectivity for sharing supported monitoring data with compatible onboard displays.

Variants

This M2 OLED range varies by monitored system and meter function. The AC models cover AC voltage, AC current, or AC multimeter readings. The DC models cover DC voltage, DC current, DC multimeter readings with state of charge, tank level monitoring, bilge monitoring, or broader vessel systems monitoring.

Across the range, the display format and compact M2 panel style remain consistent, while the wiring, sensors, current measurement hardware, and available readings depend on the selected monitor type. The Vessel Systems Monitor is the broadest configuration, combining AC, DC, tank, and bilge monitoring in one unit.

Installation and setup

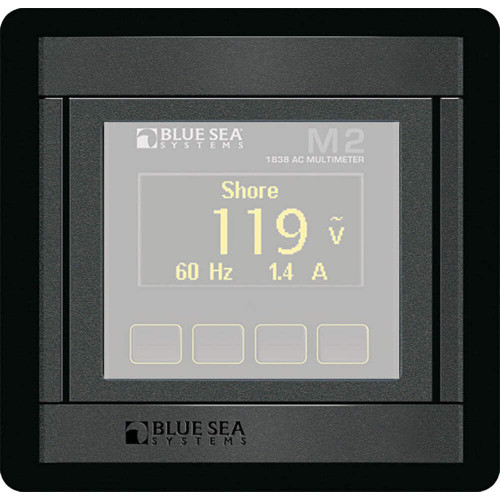

The monitor is meant for panel installation where the display can be seen and reached during normal operation. Common mounting locations include the DC distribution panel, AC shore power panel, navigation station, helm electrical area, or an engine room monitoring panel, depending on what the selected model measures.

For DC battery monitoring, plan the installation around the monitored banks, shunt placement where required, and the routing of small signal wiring back to the display. For AC monitoring, installation should be handled with proper marine AC safety practices, correct overcurrent protection, and separation between AC and DC wiring as required on board.

Compatibility and fit

Before ordering, match the selected M2 monitor to the system being measured rather than only to the panel opening. A DC voltmeter is suited to battery-bank voltage checks, a DC ammeter or multimeter is used where current and state of charge matter, and the AC versions are for shore power or generator circuits that need voltage, current, frequency, or power information.

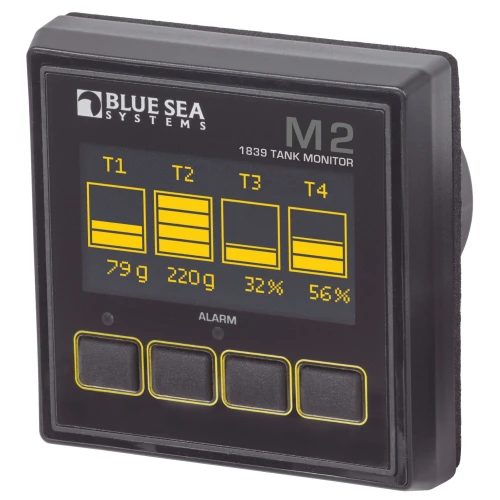

Tank and bilge versions serve different onboard jobs. The tank monitor handles level monitoring for up to four tanks, while the bilge meter tracks up to four bilges and can show activity such as pump cycles and run-time information. The vessel systems version is better suited to boats that want several of these functions consolidated in one display location.

Use on board

On a cruising boat, this monitor range helps make pre-departure checks more direct: battery condition, charging behavior, AC input, tank level, and bilge activity can be reviewed from the panel instead of being guessed from separate indicators. On fishing boats and workboats, the same information is useful during long days with electronics, pumps, refrigeration, and charging loads cycling on and off.

The M2 OLED Digital Monitor is a good match for owners upgrading older gauges, builders laying out a cleaner electrical panel, or technicians adding a focused monitor for one system without replacing the entire vessel monitoring setup.
