Overview

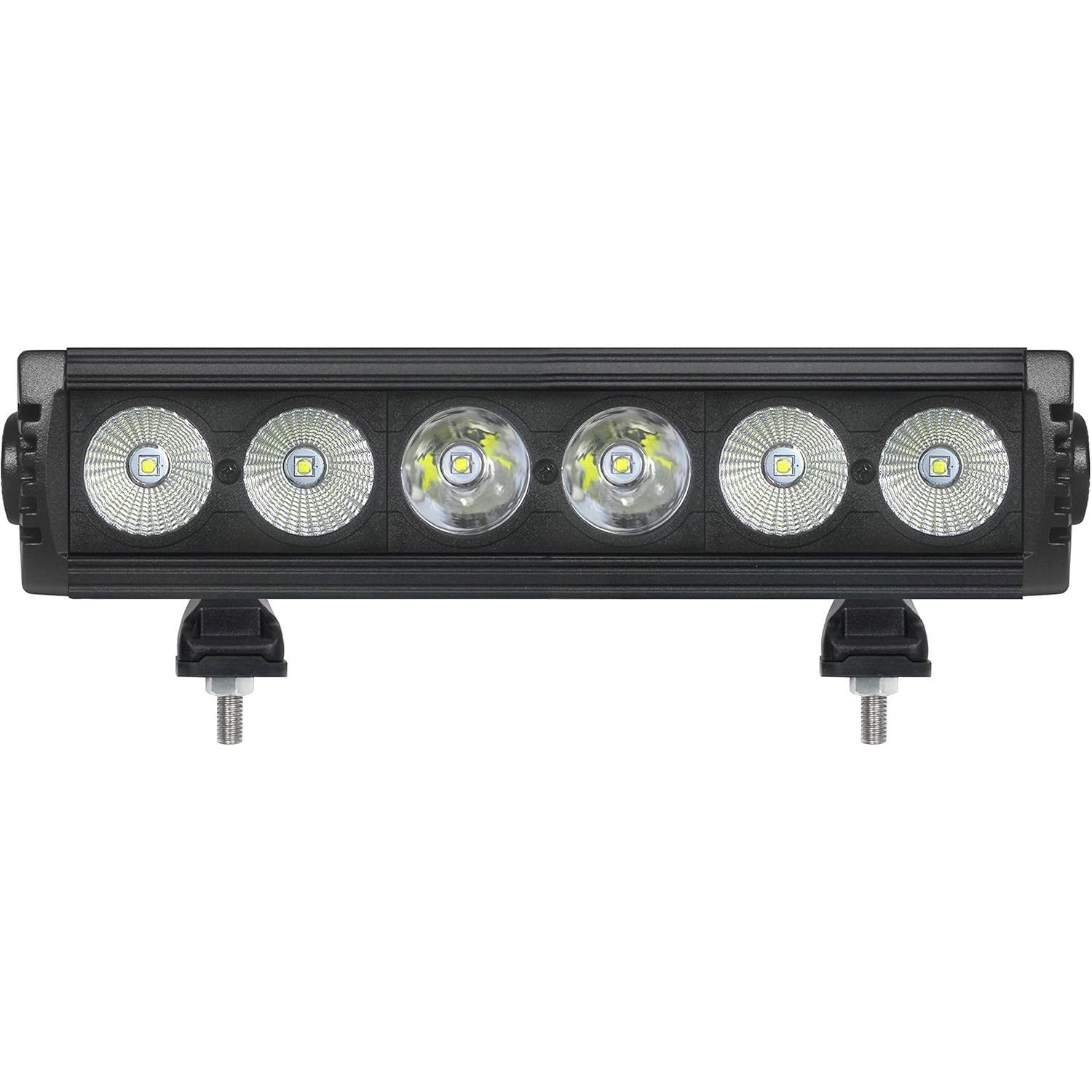

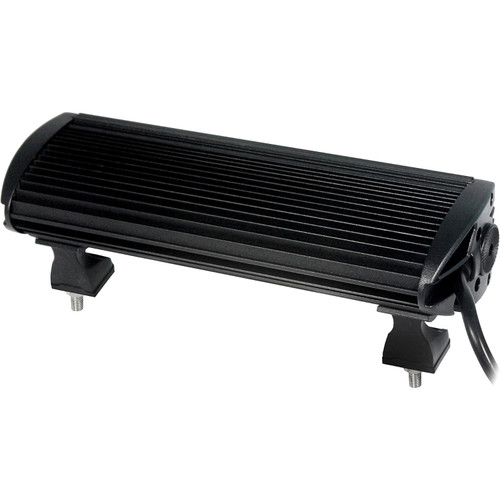

The Hella Marine 357209001 is a ValueFit Design Series 6-LED light bar with a combo beam for deck, spreader, and general work lighting on boats. It runs on 10-30 V DC (12 V and 24 V systems) and draws 60 W.

Light output is rated at 3,000 lm, and the housing carries an IP67 rating for spray and washdowns when installed with proper sealing and wiring protection. The bar measures 289 x 65 x 90 mm (11.37 x 2.56 x 3.54 in) and uses a die-cast aluminum housing with a clear polycarbonate lens.

This size and beam style make sense when you want one fixture that can light up a working area close to the boat while still throwing useful light forward for docking, line handling, and after-dark tasks.

Key features

• 6 high-power LEDs with a combo beam pattern (wide spread with added reach)
• 10-30 V DC input for common 12 V and 24 V electrical systems
• 60 W draw, roughly 5 A at 12 V and 2.5 A at 24 V for circuit planning
• IP67-rated enclosure for wet environments and regular washdowns
• Die-cast aluminum housing with a clear polycarbonate lens
• Overall size: 289 x 65 x 90 mm (11.37 x 2.56 x 3.54 in)
• Stainless steel mounting fasteners help reduce corrosion issues in saltwater use

Installation and setup

Mount it where the beam can do its job without shining directly into the cockpit or reflecting off shiny hardware. On a hardtop, radar arch, or mast spreader, aim the bar slightly down so light lands on the deck and transom area instead of the horizon.

Use a backing plate or substantial washers on thin panels, and bed any fastener penetrations so water stays out of the core. If mounting to aluminum structures, take basic anti-galvanic precautions at the hardware and contact points.

Electrical and system integration

This is a straightforward DC light with wire leads, so it ties into your existing switched circuit rather than a marine network. Plan a clean run back to a protected distribution point, and use tinned marine wire with heat-shrink terminations to keep corrosion out of the connections.

Because it is a 60 W load, pay attention to voltage drop on longer runs to towers, arches, and spreaders. Keeping the wiring sized for the run and the environment helps the light stay bright at the fixture when the alternator is not running.

Compatibility and fit

The 289 mm overall length suits smaller boats where a long bar would look out of place or be hard to mount. It is also a practical option on sailboats where a compact spreader light can be positioned to light the foredeck without adding much windage.

This is auxiliary lighting meant for working areas and visibility around the boat. It is not a navigation light and should not be used in place of required running lights.

Maintenance and care

Rinse with fresh water after salt exposure and check mounting hardware periodically for tightness, especially if the boat sees pounding or vibration. Clean the polycarbonate lens with mild soap and water and avoid harsh solvents that can haze plastic over time.
