TACO Marine Side Mount Table Pedestal, Type 304 Stainless Steel, 17-3/4 in H, 12 in W, 1-5/8 in Tube, Polished

Overview

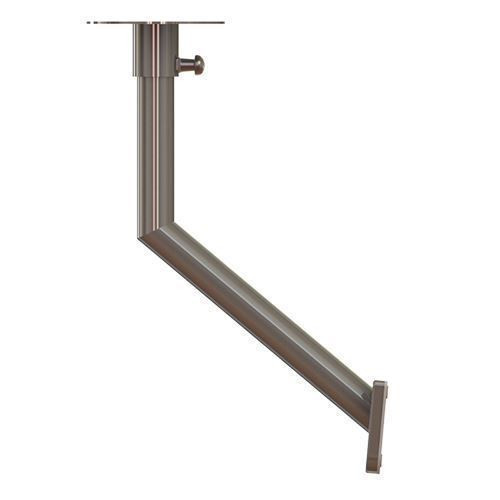

The TACO Marine F16-0005A is a removable side mount table support arm for boats where a fixed table pedestal would take up too much walkway, cockpit, cabin, or deck space. It uses a 125 degree bent leg, measures 17-3/4" high by 12" wide, and accepts a 1-5/8" tube size, giving boat owners a clear way to check fit before replacing or building out a side mount table setup.

The polished Type 304 stainless steel construction suits marine interiors and protected exterior seating areas, while the white Delrin insert helps the table support interface feel finished and reduces metal-on-metal contact at the tube connection. The removable format is useful when the table is only needed for meals, entertaining, rigging prep, or dockside use, then needs to come out of the way for movement around the boat.

Key features

• Removable side mount table support arm for boat table pedestal systems.
• 125 degree bent leg helps support a side mounted table while keeping floor space more open.
• Type 304 stainless steel with a polished finish for a clean match with marine hardware and seating areas.
• White Delrin insert at the tube connection for a finished interface point.
• 17-3/4" height, 12" width, and 1-5/8" tube size for fit checks during replacement or installation planning.
• Useful for cockpits, cabins, pontoons, and seating areas where a removable table makes the space easier to move through.

Installation and fit

This support arm is meant for a side mount table pedestal arrangement, so fit should be checked against the matching table base, side mounting bracket, tube diameter, and the available swing and clearance around the seating area. The 12" width and 125 degree leg shape matter when planning how far the table projects from the mounting point and how much passage space remains when the table is installed.

Before installation, confirm that the mounting surface is strong enough for table loads and normal movement on board. On fiberglass or cored panels, proper backing, sealant, and corrosion-aware fastener selection help keep the installation secure in a wet marine environment.

Use cases on board

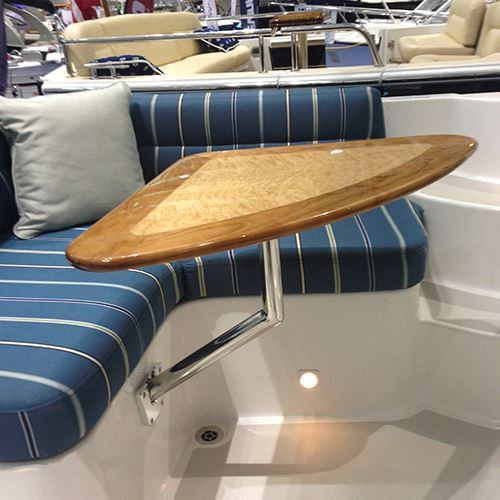

This table support is a practical match for boats that need a removable table in a compact layout, including pontoon seating zones, cockpit lounges, cabin dinettes, and deck areas used for meals or casual entertaining. It is especially useful where a permanent pedestal would interfere with foot traffic, storage access, or boarding movement.

For owners refreshing older table hardware, the confirmed 1-5/8" tube size and 17-3/4" height are the key dimensions to compare with the existing pedestal parts before ordering.
