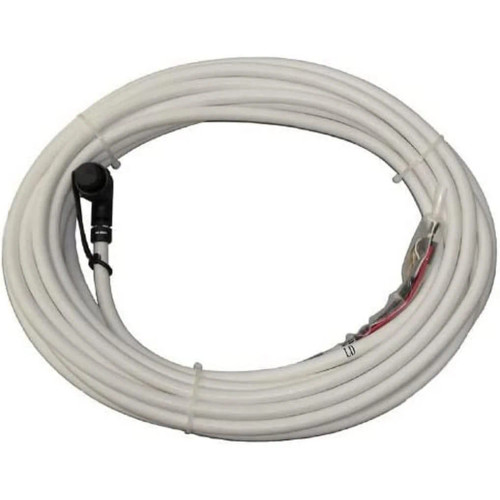

Raymarine Digital Radar Extension Cable, For Digital Radomes and HD/SHD Digital Open Arrays

Overview

The Raymarine Digital Radar Extension Cable is a cable range for extending the connection run on compatible Raymarine digital radar installations. It is available in 2.5 m, 5 m, and 10 m lengths, giving installers a clean way to bridge extra distance between the radar scanner location and the vessel’s electronics routing path.

This cable is used with Raymarine digital radomes and HD/SHD digital open array radar systems. It is a practical fit when the radar is mounted on a mast, radar arch, hardtop, or other elevated location where the original cable path does not reach the display or network area without an extension.

Key features

• Extension cable range for Raymarine digital radar installations.
• Compatible with Raymarine digital radomes and HD/SHD digital open array radar systems.
• Available in 2.5 m, 5 m, and 10 m lengths to suit different cable routing layouts.
• Helps manage longer cable runs through a mast, arch, hardtop, cabin liner, or console area.
• Useful for refits and new installations where the radar scanner location sits farther from the electronics hub.

Variants

The product is offered in multiple cable lengths so the same radar extension can be matched to the vessel’s installation route.

The cable length changes between variants. The product type and intended use remain focused on Raymarine digital radar extension applications.

• A92141D: 2.5 m cable length. This shorter extension suits installations where only a small amount of extra reach is needed behind a console, through a hardtop, or near the radar mounting point.
• A55080D: 5 m cable length. This mid-length option gives more routing flexibility for typical runs through a radar arch, cabin top, or helm area without moving to the longest cable in the range.
• A55081D: 10 m cable length. This longer extension is suited to taller masts, longer deck runs, or refit layouts where the radar cable path needs more distance before reaching the electronics area.

Installation and setup

Before installation, the cable path should be measured along the actual route, not in a straight line. Allow space for service loops, bends, cable supports, and the path through bulkheads or tubing so the selected length reaches without tension at either end.

On boats exposed to salt spray and vibration, the cable should be supported along the run and kept away from sharp edges, heat sources, and moving hardware. Any deck or bulkhead penetrations should be sealed as part of the vessel installation so the radar wiring remains protected over time.

Compatibility and fit

This cable is intended for Raymarine digital radar systems, including digital radomes and HD/SHD digital open array radar installations. It should be matched to the radar model, existing cable run, and connector layout already on the boat before purchase.

It is a good match for owners and installers who already have the correct Raymarine radar system in place but need extra cable length for a clean, serviceable installation.
