Overview

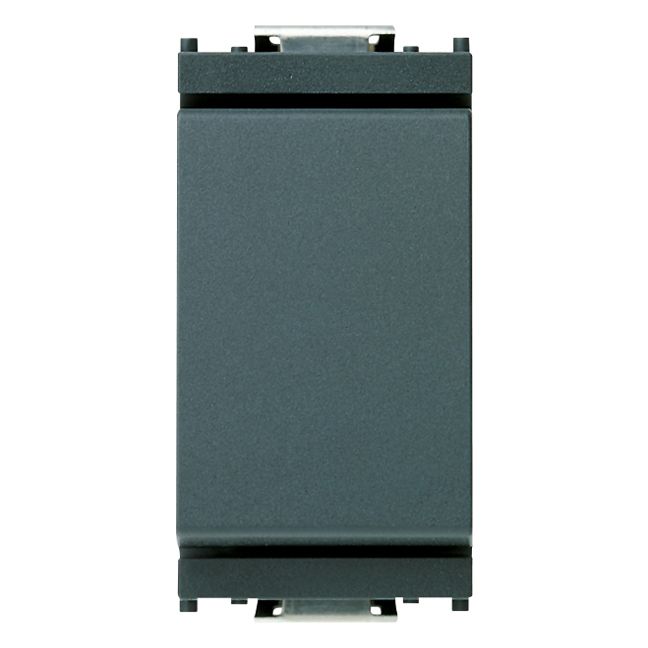

The Vimar Idea 16004 is a one-module 2-way rocker switch for 250 V circuits, rated at 10 AX, with support for self-ballasted lamps up to 100 W. It fits the Vimar Idea modular system and uses screw terminals, snap fastening, and a thermoplastic body with a matt finish.

This switch is used when one light needs control from two locations, such as a cabin entrance and berth area or two access points in a passageway. With IP40 protection, it belongs in interior spaces that stay sheltered, not on exposed decks or in areas that see washdowns or regular spray.

Key features

• 2-way switching layout for one lighting circuit controlled from two points
• Rated 10 AX at 250 V, with a 100 W limit for self-ballasted lamps
• One-module Idea mechanism with flush-mounted installation
• Screw terminal connections with snap-in fastening
• Thermoplastic, halogen-free body with a matt surface finish
• IP40 protection for protected interior locations
• Front label space for circuit identification

Variants

This product is offered in two color configurations within the same switch format.

Across the two variants, the switching function, 10 AX / 250 V rating, one-module format, flush mounting, and IP40 protection stay the same. The visible change is the front color.

• VM16004.B: Color Ivory. This version suits installations with lighter trim, plates, or interior finishes.
• VM16004: Color Gray. This version matches gray device layouts and darker surrounding trim.

Installation and fit

This mechanism is made for flush-mounted modular installations and takes one module position in the Idea system. The body measures 24.8 mm wide, 50.1 mm high, and 36.5 mm deep, with a built-in depth of 23.3 mm, which helps when checking box depth and clearance behind the mounting surface.

The unit does not include a mounting plate on the mechanism itself, so it should be matched with the correct support and cover components from the same system.

Use on board

On a boat, this switch makes sense where a vessel uses a modular mains-voltage switching layout in protected interior areas. It is a practical fit for cabins, saloons, passageways, or other dry accommodation spaces where a clean flush-mounted finish matters and the switch is kept away from direct water exposure.
