Overview

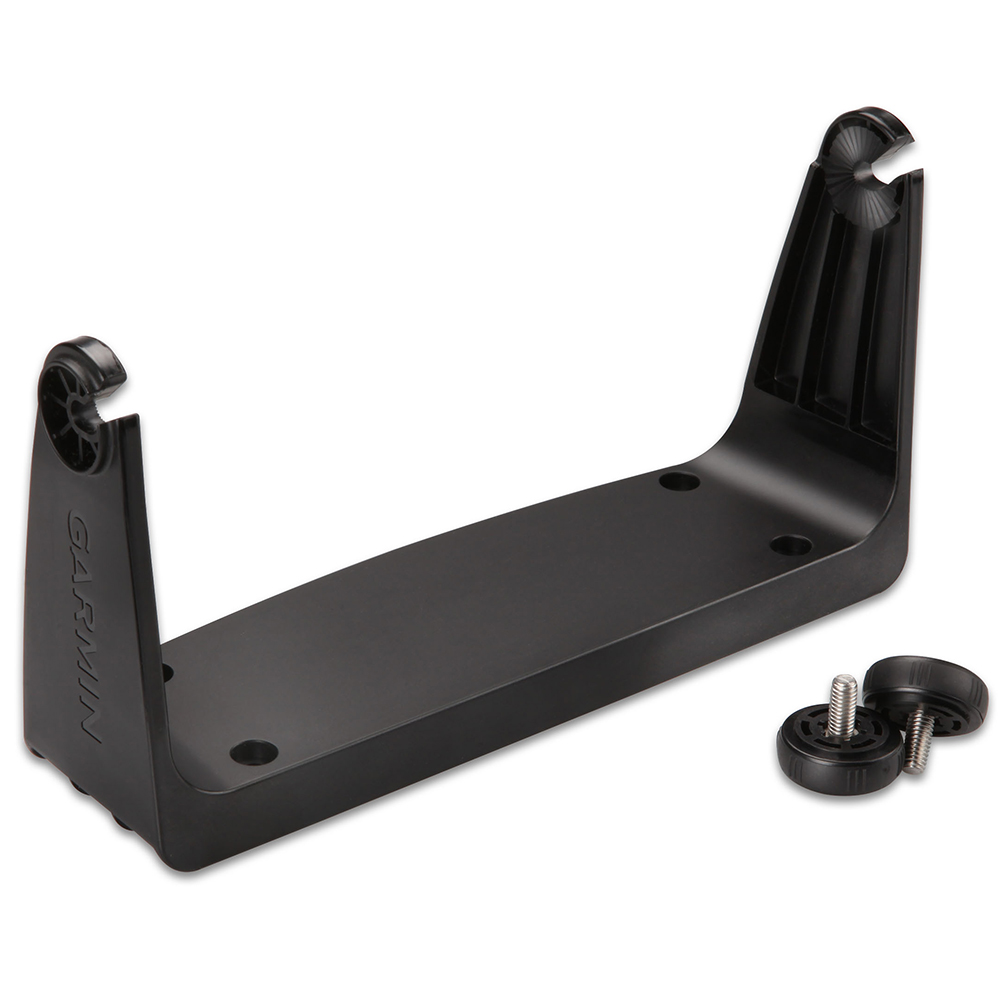

The Garmin 010-11967-00 is a bail mount with adjustment knobs for surface-mounting compatible 7-inch Garmin chartplotters at the helm. It fits echoMAP 70dv, echoMAP 70s, GPSMAP 741, and GPSMAP 741xs units and lets you tilt the display to match your sightline.

This style of mount is a practical choice when you want the unit on top of a dash, console, or electronics box instead of flush-mounted in a cutout. Once installed, the bracket holds the plotter steady, and the side knobs let you set the viewing angle for seated or standing operation.

Key features

• Compatible with Garmin echoMAP 70dv, echoMAP 70s, GPSMAP 741, and GPSMAP 741xs displays
• Bail-style surface mount with side knobs for quick tilt adjustment
• Angle range helps manage glare and keeps the screen readable from different helm positions
• Useful on open cockpits and enclosed helms where the display needs to be repositioned during the day

Compatibility and fit

Confirm the model name on your display before ordering. This mount matches the echoMAP 70dv/70s and GPSMAP 741/741xs form factor, and Garmin units outside that group often use a different bracket pattern.

Installation and setup

Mount the bracket to a flat surface that is rigid enough for a plotter in chop. Leave clearance behind the display for cables and connectors, and make sure the unit can tilt without hitting a windshield frame, steering wheel, or grab rail.

Use fasteners that suit your mounting material and the loads at the helm. On thin panels, backing plates or large washers help spread the load. After the first few runs, recheck hardware and knob tension since vibration can settle a new install.

Use on board

This mount is a good match for boats running an echoMAP 70 or GPSMAP 741 series display where you want an adjustable viewing angle without committing to a flush cutout. It is commonly used on center consoles, walkarounds, and pilothouse helms where crew move between seated and standing positions.

Maintenance and care

Rinse the mount and knobs with fresh water after saltwater use and keep salt buildup from collecting around moving points. Snug the knobs firmly so the display does not drift, but avoid overtightening.
