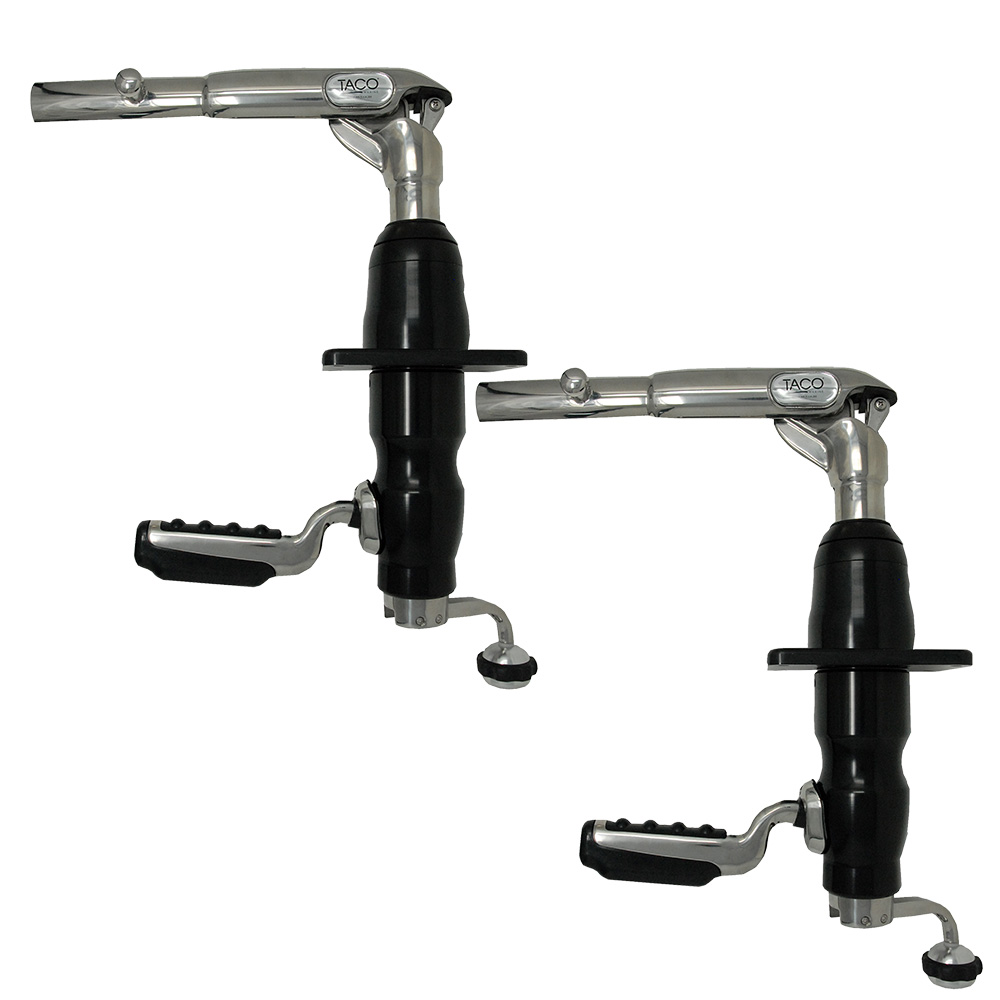

TACO Marine Grand Slam 390BHC Outrigger Mount, For 1-1/2 in Outriggers, Black Anodized Aluminum, SS316L, Pin-Locking

Overview

The TACO Marine GS-390BHC is a Grand Slam 390BHC outrigger mount for 1-1/2 inch outriggers, finished in black hard coat anodized aluminum for a clean Blackout Series look and added protection in exposed marine use. It is built for larger center console fishing boats in the 25 to 40 ft range and fits T-tops with a maximum thickness of 2-5/8 inches.

This mount is made for crews who need to control outrigger lift and rotation from the boat deck, including when conditions are less than calm. The stronger gusset support, thicker arm, secure locking head, elevation crank handle, and offset handle all support practical day-to-day use under a T-top, where clearance and reach matter.

Construction combines cast stainless steel Type-316L with machined aluminum, giving the mount the strength needed for longer outrigger poles while keeping the black anodized finish consistent with modern tower and hardtop hardware.

Key features

• Black hard coat anodized aluminum finish suits exposed T-top installations and matches the Blackout Series appearance.
• Made for 1-1/2 inch outrigger systems and pairs with TACO Deluxe Aluminum or Carbon Fiber Tele-Outriggers.
• Built for center console boats in the 25 to 40 ft range.
• Compatible with T-tops up to 2-5/8 inches thick.
• Stronger gusset support and a thicker arm help handle the torque and pressure created by longer outrigger poles.
• Elevation crank handle lets the crew lift the outrigger from under the T-top.
• Horizontal rotation can be controlled from under the T-top, keeping adjustments reachable from the deck.
• Offset handle gives better hand clearance around the hardtop structure.
• Secure pin-locking head helps hold the outrigger position during trolling and offshore runs.
• Cast stainless steel Type-316L and machined aluminum construction suits the saltwater environment when installed and maintained properly.

Installation and fit

Before installation, confirm that the boat uses 1-1/2 inch outrigger poles and that the T-top thickness does not exceed 2-5/8 inches. This mount is intended for under-T-top control, so the handle path, crank access, and clearance around the frame should be checked before drilling or final fastening.

The 25 to 40 ft boat range is a useful fit guide for center console owners upgrading from lighter-duty outrigger bases or setting up a boat for serious trolling spreads. It is a strong match for offshore fishing layouts where the crew needs quick access to lift and rotation without climbing or reaching above the top.

Materials and corrosion resistance

The black hard coat anodized aluminum finish helps the mount hold up in sun, spray, and regular washdowns, while the Type-316L stainless steel components add strength in areas that see load and movement. As with any exposed outrigger hardware, rinsing with fresh water after saltwater use and checking moving parts during routine maintenance will help keep operation smooth.

Use on board

This mount suits fishing crews running longer outrigger poles from a T-top on a larger center console. The deck-level lift and rotation controls are useful when setting a trolling spread, clearing lines, or making adjustments while the boat is moving in rougher water.

What’s included

• Pair of Grand Slam 390BHC outrigger mounts
