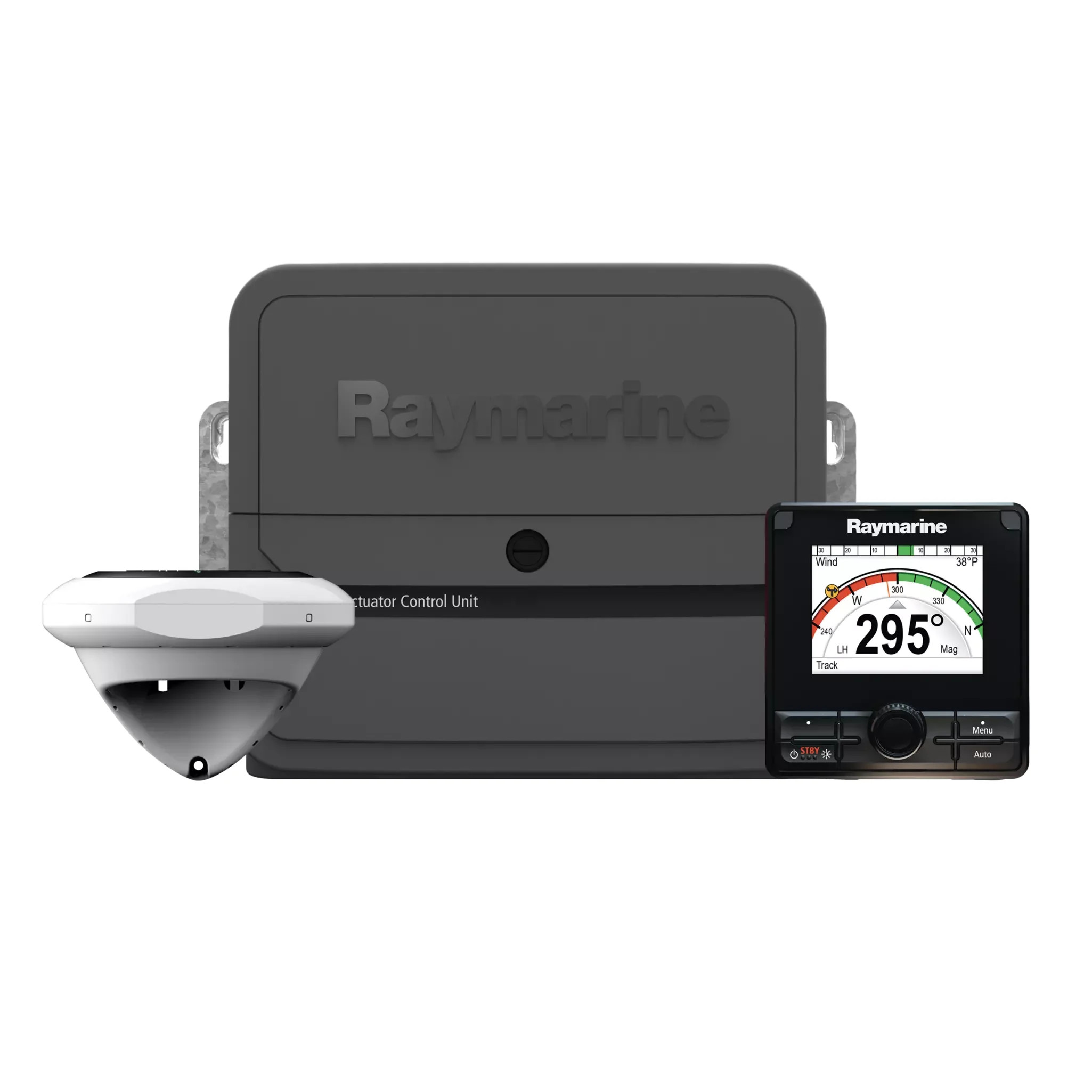

Raymarine EV-200 Power Pilot Autopilot Pack, Without Drive, p70Rs, EV-1, ACU-200, 12V
-
Perfect Fit, Guaranteed
Get the right part every time
-
Expert Support
Our in-house specialists know our products inside and out
-
Enhanced Value & Service
We go beyond the sale with professional and balanced services
-
Wordwide Delivery
Enjoy hassle-free worldwide delivery
Overview
The Raymarine T70156 is an EV-200 Power Pilot autopilot pack for powerboats with hydraulic steering, supplied without the hydraulic drive unit. It is a practical upgrade path for boats that already have a compatible Type 1 hydraulic drive, or for installations where the drive unit will be selected separately to match the vessel steering system.
The system uses the EV-1 sensor core with 9-axis heading and motion sensing, an ACU-200 actuator control unit, and a p70Rs autopilot control head. This combination helps the pilot react to heading, pitch, roll, and yaw so it can hold course more smoothly as sea conditions and boat behavior change.
SeaTalkng networking keeps the autopilot connected to the rest of a Raymarine electronics system, while the EV-200 setup avoids the long compass calibration routines found on older pilot systems. The drive unit is not included, so hydraulic drive compatibility should be confirmed before installation.
Key features
- EV-200 Power Pilot pack for hydraulic outboard and inboard powerboat steering systems.
- Supplied without the hydraulic drive unit, making it suitable when a compatible Type 1 drive is already installed or purchased separately.
- EV-1 sensor core uses 9-axis heading and vessel motion sensing for adaptive autopilot control.
- ACU-200 actuator control unit handles autopilot drive control and ties into the SeaTalkng network.
- p70Rs control head gives helm access to autopilot modes and course control through a rotary control interface.
- No lengthy compass calibration process is required after installation.
- Hydro-Balance steering control helps reduce hydraulic steering oscillation and drive-unit hunting.
- SeaTalkng connectivity supports integration with compatible Raymarine displays, sensors, and network components.
Installation and setup
This pack belongs in a below-deck autopilot installation where the ACU, EV sensor, control head, cabling, and hydraulic drive all need to work as one steering system. The EV-1 sensor core can be mounted above or below deck, which gives installers more freedom to place it away from magnetic interference and heavy vibration.
Because this version does not include the drive unit, the key installation step is matching the separate hydraulic drive to the boat steering system. Before ordering or fitting the system, confirm the steering type, cylinder volume, available mounting space, and the required Raymarine drive unit for the vessel.
Electrical and system integration
The EV-200 system is built around Raymarine SeaTalkng networking, so it is a strong match for boats already using Raymarine multifunction displays or planning a Raymarine-based electronics layout. The included cabling kit supports the network backbone and spur connections needed to link the pilot components together.
For best results, autopilot power, drive wiring, network layout, and helm control placement should be planned before installation begins. This is especially important on fishing boats, coastal cruisers, and powerboats that need the autopilot to hold a steady course while the crew manages navigation, lines, or deck work.
What’s included
- EV-1 Sensor Core
- p70Rs Autopilot Control Head
- ACU-200 Actuator Control Unit
- Evolution Cabling Kit
- EV Unit O-Ring Pack, set of 2
- Wall Mounting Bracket
