Overview

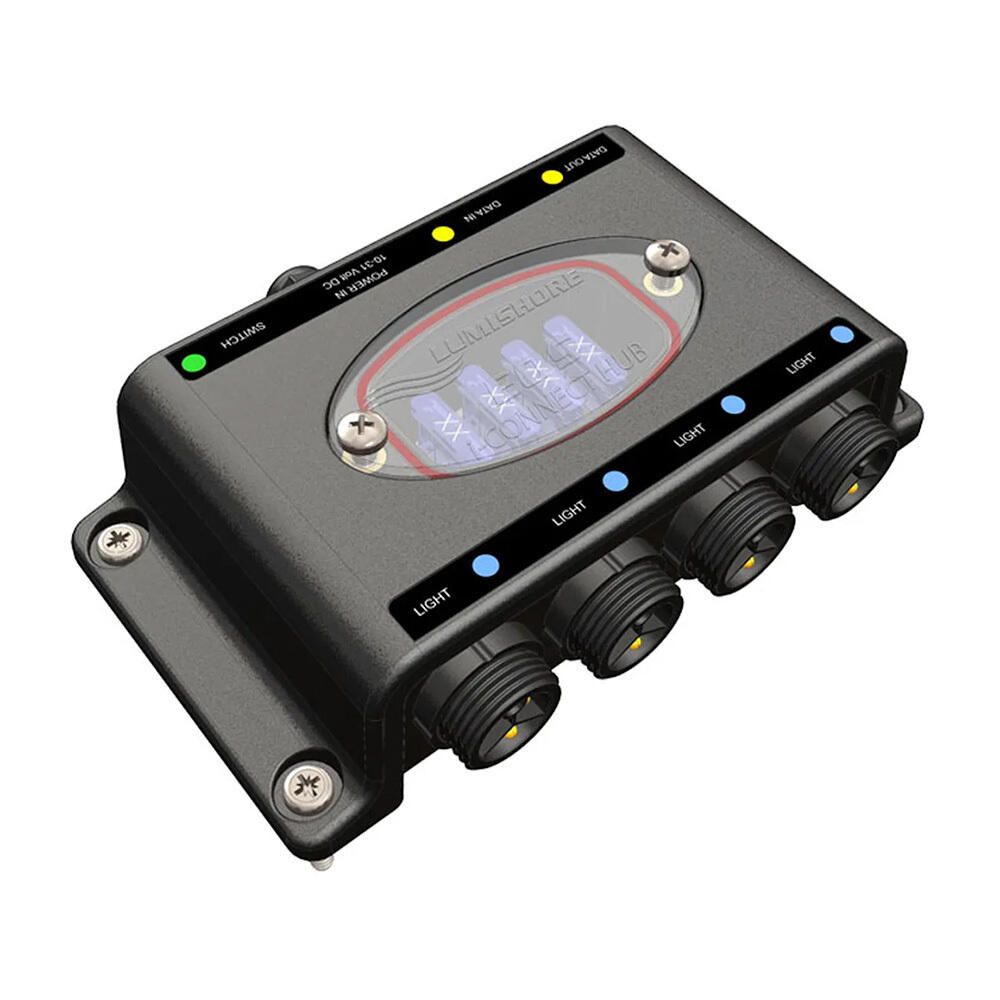

The Lumishore 010-04357-00 is a Lumishore EOS i-Connect Hub Kit with a 1 m DMX cable for wiring and controlling EOS Series underwater lights through a single IP68 junction box.

It supports up to 4 lights per hub and runs on 10.5 to 31 V DC for 12 V and 24 V systems. Each output is individually fused with a replaceable blade fuse, and each circuit has its own status LED to make troubleshooting faster when one light or cable is acting up.

The enclosure is compact at 148 mm x 79 mm x 38 mm (not including cable glands) and is built from weatherproof ABS, which makes it practical for installs inside lockers, behind liners, or other protected spaces close to the transom wiring runs.

Key features

• Supports up to 4 EOS Series lights per hub; up to 4 hubs per installation (16 lights total)
• 10.5 to 31 V DC input for 12 V and 24 V systems
• Max input current 20 A; max output current 5 A per light circuit
• IP68 ingress protection for the enclosure and cable entry/exit points
• Replaceable blade fuse for each light output, plus a status LED for each circuit
• Built-in switching relay, noise filter, and reverse polarity protection
• Includes a 1 m DMX cable for linking the hub to the control side of the system

What’s included

• EOS i-Connect hub junction box
• 1 m DMX cable

Installation and setup

Mount the hub in a protected, accessible location inside the hull where you can reach the fuses and see the status LEDs. Keep it out of areas that hold standing water, and support the cabling so vibration and movement do not load the connectors or cable glands.

Connect the DMX cable from the hub to the control side of your setup, then plug each EOS light into its own output. Leave a small service loop and label the light runs so it is easy to match an output to a specific light later.

Electrical and system integration

Feed the hub from a DC supply within 10.5 to 31 V DC and plan the upstream wiring and protection for up to 20 A maximum input. Since each light circuit is individually fused at the hub, a fault on one light is less likely to take down the rest of the lighting set.

The built-in relay handles switching of the connected lights, and the built-in noise filter helps keep lighting loads from interfering with other electronics on board.

Compatibility and fit

This hub is intended for Lumishore EOS Series underwater lights and Lumi-Link based control installations. It is used in systems controlled by an EOS-LUX Command Center, an EOS-LUX-SUPRA display, or a compatible MFD integration path, depending on how the boat is set up.

It is a good match for boats running multiple EOS lights on the transom or along the hull sides where you want one service point for power distribution, fuses, and clean cable routing.

Maintenance and troubleshooting

If a single light stops working or stops responding, the per-circuit status LEDs and individual fusing help narrow the issue quickly. After any service, reseat the cover and check the cable glands so the IP68 sealing stays intact.
