Overview

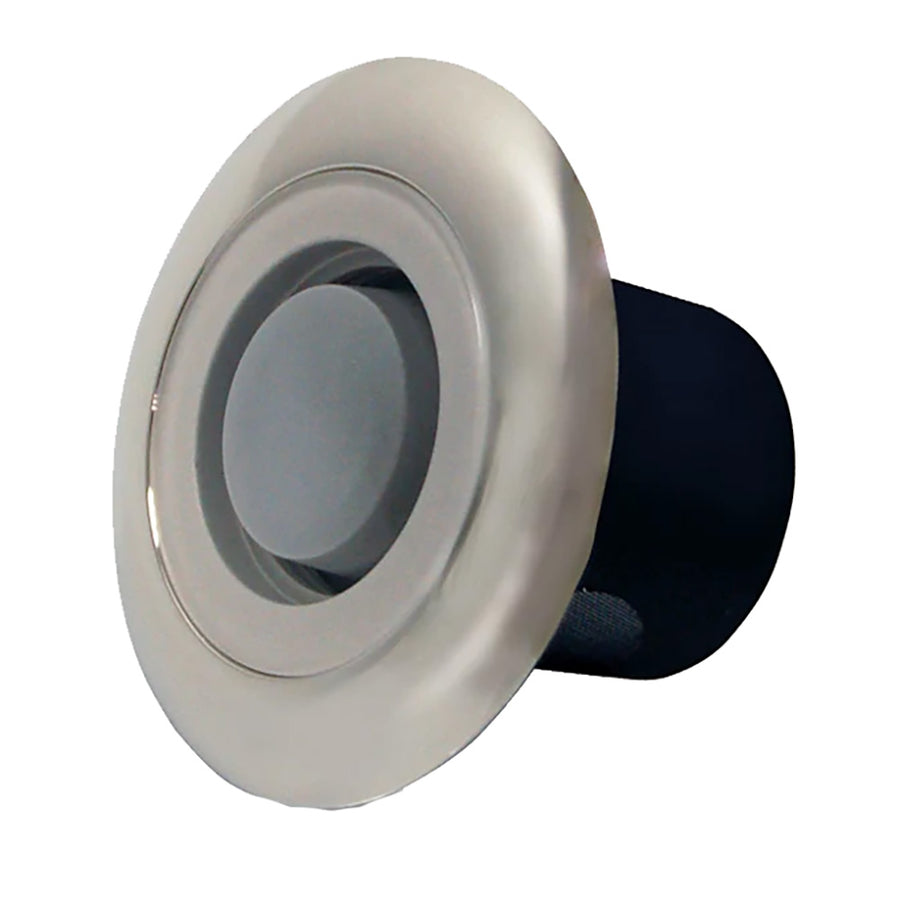

The Lumishore 010-04441-00 is a CL25 LUX courtesy light that adds low-profile accent lighting to steps, walkways, and cockpit or cabin transitions, with full-spectrum CRGBW color plus tunable white from 2700K to 6500K. It runs on 10.5 to 31 V DC, so it fits both 12V and 24V systems, and the housing is IP68 rated for interior or exterior mounting in wet areas.

For clean installs, the front bezel measures 45 mm with a 25 mm hole cut-out, and the body depth is about 23.7 mm. The bezel is 316L stainless steel with a chrome finish, paired with a black ABS body, which helps it hold up around salt spray, UV, and vibration common on deck and in cockpits.

This light is powered through the LUX Light Control Module and uses a simple 3-wire connection. It can be controlled from a momentary switch, and it supports expansion to compatible MFD control and a dedicated lighting display when the rest of the LUX system is in place. It is fully sealed, but it is not intended for permanent submersion.

Key features

• Full-spectrum CRGBW output plus tunable white lighting (2700K to 6500K) in one fixture
• Wide input range (10.5 to 31 V DC) for 12V and 24V boats
• IP68-rated light for interior or exterior installs in wet areas (not for continuous underwater mounting)
• Low-profile footprint: 45 mm bezel, 25 mm cut-out, about 23.7 mm depth
• 316L stainless steel bezel with black ABS body for typical saltwater and washdown environments
• Runs from the LUX Light Control Module, supporting up to 16 courtesy lights per module
• Momentary-switch control with an upgrade path to compatible MFD control and a dedicated lighting display
• Built-in electrical protections including reverse polarity and surge protection, plus ISO 8846 ignition protection

Installation and setup

Plan for a flat mounting surface and a clean 25 mm cut-out, then secure the body with screw fixings. For exterior or wet-area installs, sealing behind the bezel helps keep water out of the mounting surface. Keep wiring runs tidy back to the LUX Light Control Module and leave service slack so the fixture can be removed later without pulling the harness tight.

Electrical and system integration

The CL25 uses a 3-wire connection to the LUX system and is intended to be driven by the LUX Light Control Module rather than third-party dimmers. Power draw is small for a courtesy light, with a typical current draw of about 0.06 A at 12 V and 0.03 A at 24 V, and a power rating of 0.5 W per light, which makes it easy to add multiple lights without stressing house circuits when the system is planned correctly.

Use on board

This light fits boats that need controlled courtesy lighting in the cockpit, around steps, along side decks, at companionways, or under toe-kicks, especially when you want both color effects and usable white light from the same fixture. It is also a good match for owners building a boat-wide LUX lighting system where multiple lights are grouped under a controller for consistent dimming and color behavior.

Maintenance and care

Rinse salt residue from the bezel during routine washdowns and clean with mild soap and water. Avoid harsh chemical cleaners around the lens and sealing surfaces, and check mounting screws and sealant periodically if the light is installed in a high-spray area.
