Overview

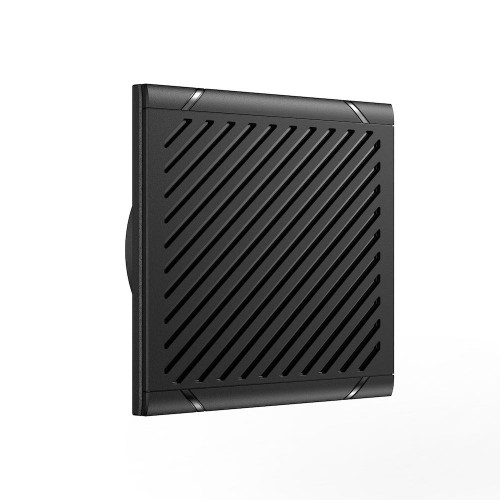

The Simrad 000-15651-001 is a wired external speaker that lets you hear VHF traffic and alerts away from the handset, which helps when the helm or cockpit is noisy.

It works with Simrad blackbox VHF systems such as RS100, RS100-B, V100, and V100-B, and it is also used with the NRS-1 and NRS-2 VHF series. A 5 m (16.4 ft) cable is included for flexible routing.

Speaker volume is managed from the wired handset it is assigned to, so you can balance levels across different listening positions on board.

Key features

• Wired external speaker for compatible Simrad VHF systems, including RS100/RS100-B, V100/V100-B, and NRS-1/NRS-2
• Up to four speakers can be configured to one wired handset with an individual volume offset for each speaker
• Volume is controlled from the assigned wired handset for centralized adjustment
• Handset speakers can be turned off when you only want external speaker audio
• Includes a 5 m (16.4 ft) cable for routing from the radio location to the mounting point

Installation and setup

Mount the speaker where it faces the working position and where the rear of the unit can stay dry and ventilated. Route the cable with a drip loop, protect any bulkhead pass-through with a grommet, and keep the run clear of high-current DC wiring to reduce the chance of noise pickup.

After the speaker is connected and assigned in the VHF system, adjust volume from the wired handset. When multiple SP100 speakers are installed, per-speaker offsets help keep volume consistent between a speaker that is close by and one that is farther away.

Compatibility and fit

This is an external speaker accessory for Simrad VHF installations that support handset-controlled speaker volume. Confirm your VHF model supports the SP100 connection and external speaker configuration before ordering, especially if your system is outside the RS100/V100 or NRS series.

Who it suits on board

It suits boats that run loud at the helm or have a second operating position where you want to hear VHF calls without moving the handset.
