Overview

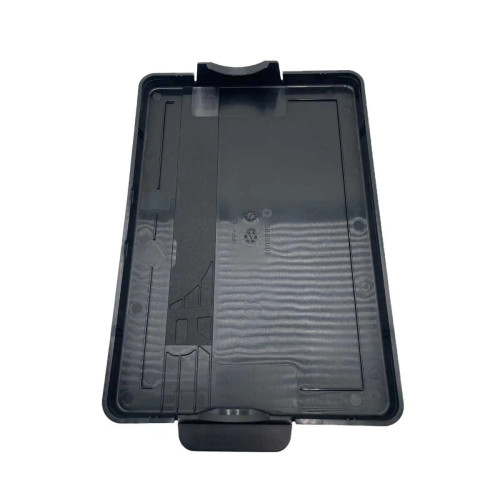

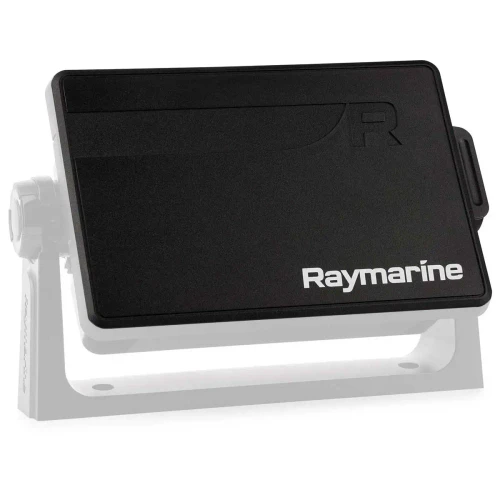

The Raymarine R70525 is a 7-inch trunnion mount suncover for Raymarine Axiom 7 non-Pro multifunction displays. It fits the display when the unit is mounted on a trunnion bracket, helping protect the screen face while the helm is not in use.

This cover is meant for the common bracket-mounted setup found at consoles, flybridges, cockpits, and dash areas where the display is exposed to sun, spray, dock dust, and day-to-day handling. It is a cover only, not a mounting kit, and it should be matched to the correct Axiom 7 mounting style before ordering.

Key features

• Fits Raymarine Axiom 7 non-Pro displays in a trunnion mounted installation.
• Made for the 7-inch trunnion mount configuration, not the surface mount or front mount suncover versions.
• Helps shield the display screen from UV exposure when the electronics are not being used.
• Useful for helm stations, cockpit displays, flybridge electronics, and other exposed onboard mounting locations.
• Lightweight accessory with listed package dimensions of 1 in H x 6 in W x 9 in L and a listed weight of 0.25 lb.

Compatibility and fit

This suncover should be used with an Axiom 7 non-Pro display when the display is installed on a trunnion bracket. Raymarine uses different covers for different display sizes and mounting methods, so a 7-inch bracket-mounted display needs this trunnion mount version rather than a surface mount cover.

Before replacing a lost or damaged cover, check the display size and how the unit is mounted. This part is not intended for Axiom Pro displays, larger Axiom screen sizes, or installations that require a different style of cover.

Installation and use

The cover slips over the display face when the electronics are powered down or the boat is sitting between trips. It is a practical add-on for protecting the screen at the dock, on the trailer, or during storage periods when the helm is exposed.

For running at high speed or trailering the vessel, remove and stow the cover so it cannot loosen or be lost in wind. Keeping it inside a console compartment or electronics bag between uses also helps prevent scratches and keeps the cover easy to find before the boat is put away.

Care on board

Rinse salt and grit from the cover before wiping it down, especially after fishing trips or longer coastal runs. A quick fresh-water rinse helps reduce abrasive buildup that can transfer to the display face the next time the cover is fitted.
