Overview

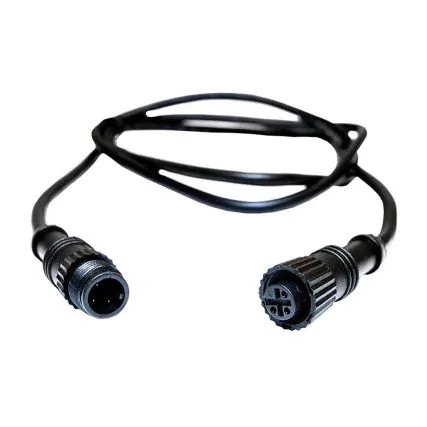

The Lumishore 010-14461-00 is a 1 m (3 ft) DMX extension cable used in Lumishore EOS lighting installs to link driver modules in a series run or add length to an existing DMX cable.

It carries the three-core DMX signal (Data+, Data-, and ground/shield) through a male-to-female connection, so you can add reach without cutting into the harness. This is commonly used to extend the 5 m DMX cable supplied with some EOS light set layouts when the hub, controller, or driver modules land farther apart than expected.

Key features

• 1 m (3 ft) extension length for adding reach between DMX-connected lighting components
• Used to connect Lumishore driver modules in series or extend an existing DMX run
• Three-core DMX wiring with Data+ (black), Data- (white), and ground/shield screen
• Male-to-female DMX connectors for a clean in-line extension

Compatibility and fit

This cable is meant for Lumishore EOS DMX wiring between compatible hubs, controllers, and driver modules that use the matching Lumishore DMX connectors and pinout. It is a lighting data cable, not a network drop for marine electronics.

Installation and setup

Plan the run so the connectors stay accessible and are not sitting in bilge water. Support the cable with cushioned clamps, keep it away from sharp edges, and leave a little service slack so vibration does not work the connectors loose over time.

For system changes that need extra distance, keep the DMX lead intact and extend it with the correct extension cable rather than cutting and splicing.

Use cases on board

This extension is helpful when adding lights to a transom, moving a hub into a drier compartment, or routing around tanks and stringers where a straight shot is not possible. It makes sense for boats with multi-zone EOS installs where modular cabling saves time during future service or upgrades.

Maintenance and care

During routine checks, confirm the connectors are fully seated and free of salt buildup. If the area gets frequent washdowns, rinse with fresh water and let the connectors dry before re-mating them.
