Overview

The Garmin 010-12199-01 is a flush-mount installation kit for compatible 4-inch echoMAP units, including the echoMAP 4Xdv series. It lets you recess the display into a helm panel or electronics pod so the screen sits close to the surface and stays fixed in place. The kit supplies a cutout template, mounting hardware, and installation instructions to help you lay out the opening and secure the unit neatly.

Flush mounting works best when you have a flat dash area and enough clearance behind the panel for the back of the unit and the connectors. If your console has a cored panel, sealing the cut edges before final mounting helps keep moisture out over time.

Key features

• Flush-mount kit for Garmin 4-inch echoMAP family displays, including echoMAP 4Xdv models
• Template helps you mark the cutout and mounting-hole locations before you start cutting
• Includes mounting hardware and installation instructions for a straightforward install
• Made for in-dash mounting on most flat surfaces such as helm consoles and electronics pods
• Low-profile mounting style that keeps the unit fixed compared with a bracket mount

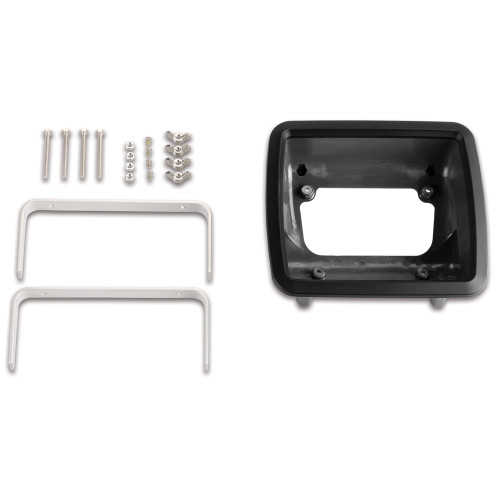

What’s included

• Flush-mount cutout template
• Mounting hardware
• Installation instructions

Compatibility and fit

This kit is intended for Garmin 4-inch echoMAP units, including echoMAP 4Xdv and echoMAP CHIRP 42/43/44/45 models, along with ECHOMAP Plus 42/43/44/45cv units. Match the kit to the exact model name printed on your display, and confirm you have the panel space needed for the unit’s bezel and the rear clearance for cabling.

Installation and setup

Use the provided template to confirm placement on the dash and to check behind-panel clearance before cutting. Once the opening is cut, dry-fit the unit, verify connector access, and route cables so they are not forced into tight bends when the unit is secured.

On fiberglass or cored panels, sealing the cutout edges helps protect the laminate or core from water intrusion. After the unit is fastened, recheck that the front controls are accessible and that the display face sits evenly against the panel.

Use on board

This mount style suits boats where the display stays on the helm full time and you want a dash surface that is easier to wipe down after spray or fish slime. It also helps when space is tight and a bracket mount would protrude into a walkway or get bumped during docking and anchoring.
