Overview

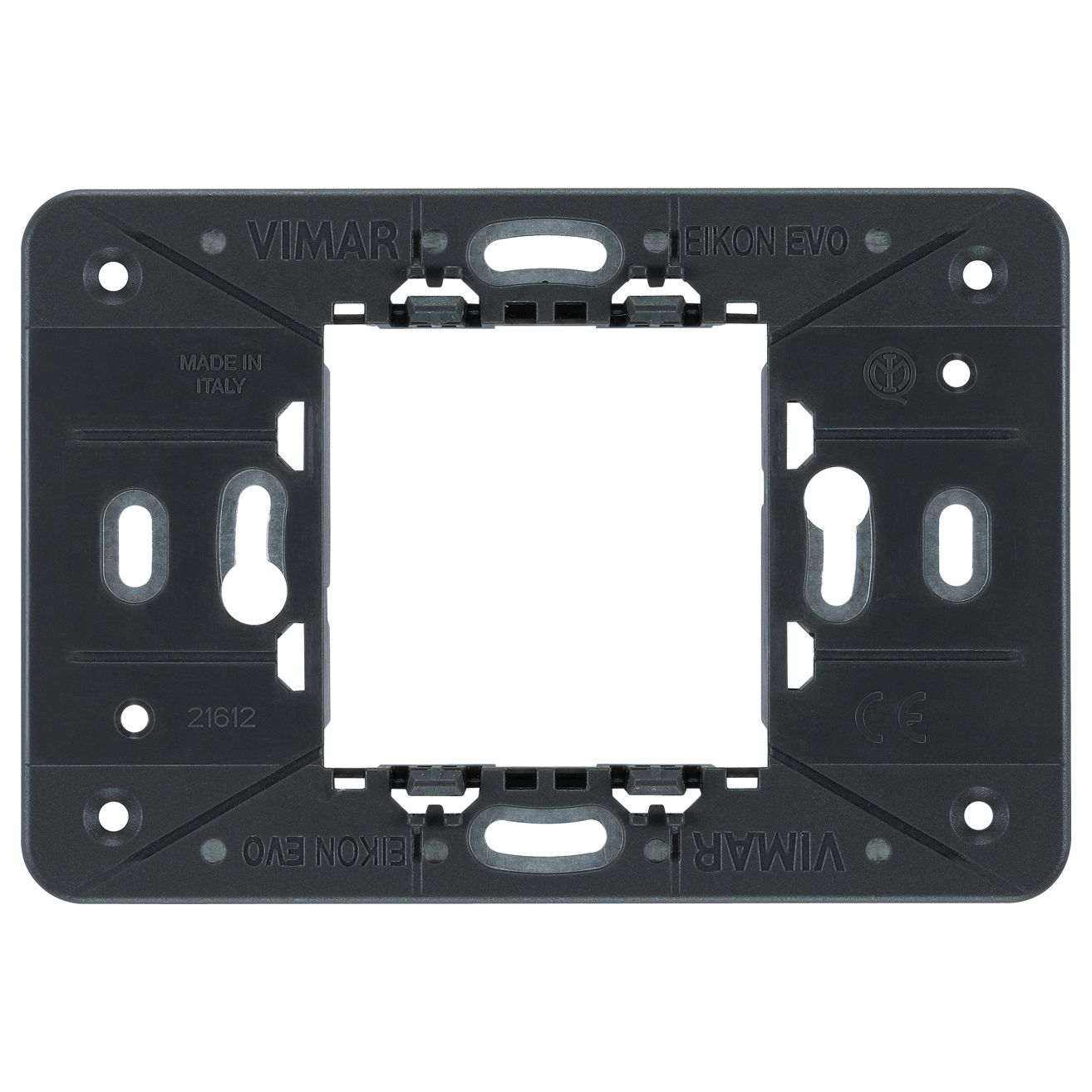

The Vimar VM21612 is a 2-central-module mounting frame with fixing screws for Vimar Eikon modular wiring devices in a flush-mounted installation.

It mounts to a 3-module mounting frame and to boxes with 60 mm fixing centres or a 56x56 mm mounting box. Module inserts fit from the front, and the frame can be installed horizontally or vertically (2 modules across, or 1 module when mounted vertically).

This is the support frame only, not a back box. It is not suitable for 60 mm round junction boxes, floor boxes, wall duct systems, or 35 mm DIN-rail mounting.

Key features

• 2-central-module mounting frame with screws for Vimar Eikon modular devices
• Fits a 3-module mounting frame and boxes with 60 mm fixing centres or a 56x56 mm mounting box
• Front-side module insertion for easier alignment and access during wiring
• Installs horizontally or vertically (2 modules horizontal, 1 module vertical)
• Thermoplastic frame for flush-mounted installations
• Not suitable for 60 mm round junction boxes, floor boxes, wall duct systems, or 35 mm DIN-rail mounting

Compatibility and fit

This frame is for rectangular box installations that use 60 mm fixing centres or a 56x56 mm mounting box, and for setups that use a 3-module mounting frame but need a 2-central-module support. Confirm the box type and fixing-centre spacing before ordering, since it does not fit standard 60 mm round junction boxes.

Installation and setup

Fix the frame to the box using the supplied screws, then mount the Eikon modules from the front side in the required orientation. Once devices are secured and lined up, the matching cover plate can be fitted to finish the installation.

Use cases on board

This frame is a good match for boats already using the Vimar Eikon modular system in interior panels and bulkheads, where a clean flush fit matters and the mounting box matches the 60 mm fixing-centre or 56x56 mm format. It is a poor fit for refits built around 60 mm round boxes or DIN-rail enclosures.

In areas exposed to spray or washdowns, plan the installation inside a protected panel or enclosure and use cover plates and sealing methods suited to that location.
