Overview

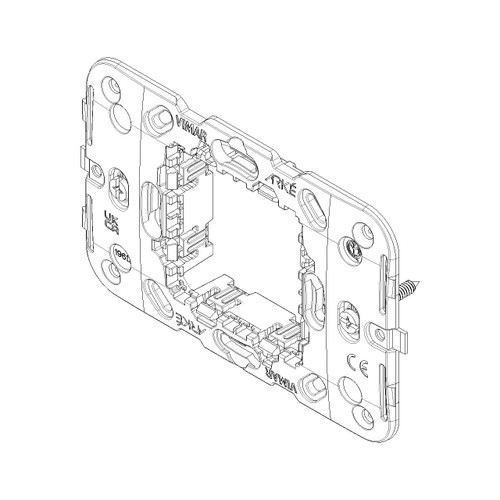

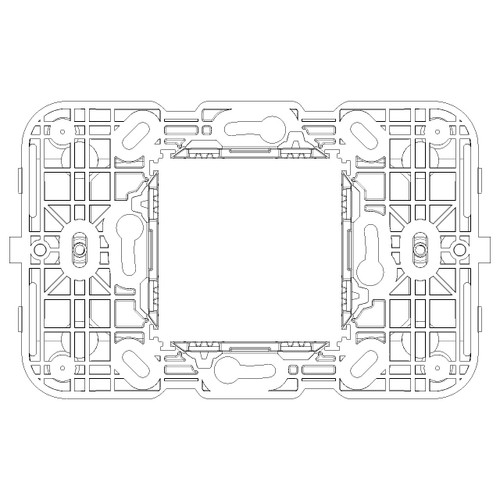

The Vimar VM19612 is a 2-central-module mounting frame with screws, made to mount compatible Vimar modular devices in a 3-module opening and align with 60 mm fixing centres or a 56 x 56 mm mounting box. It can be installed horizontally or vertically, which helps when you are matching existing plates and box orientation on board.

This support sits behind the front plate and gives you a stable fixing point for switches, outlets, or other modular inserts where you want a neat, serviceable finish in a cabin, nav station, or electrical panel. The semi-transparent body makes it easier to see alignment and wiring positions during fit-out.

Key features

• 2-central-module support with fixing screws for secure mounting
• Fits 3-module mounting frame layouts and boxes with 60 mm fixing centres or a 56 x 56 mm mounting box
• Installs in horizontal or vertical orientation
• Semi-transparent frame helps with positioning and wiring visibility during installation
• Honeycomb structure adds stiffness while keeping the frame light
• Corner slots allow panel fixing; hooking teeth help when ganging multiple supports in a row
• Central slots help level the support during final tightening

Compatibility and fit

This mounting frame is intended for Vimar modular devices that use the 2-module central format within a 3-module space. Before ordering, confirm the module count of the devices and the box style already installed on the boat, especially the fixing-centre spacing and whether the opening is set up for a 3-module layout.

Installation and setup

Mount the frame to the box or panel using the fixing points provided on the support, then secure the inserts and front plate according to the device layout. When building multi-position switch banks, the frame features make it easier to keep adjacent supports aligned so the plates sit straight and the gaps stay even.

Allow enough clearance behind the panel for wiring bends and strain relief, and tighten fasteners until snug without forcing the plastic.

What’s included

• Mounting frame
• Fixing screws

Use on board

This type of support is a good match for interior electrical points where you want a clean modular finish, such as lighting control panels, cabin outlets, or a nav-station switch group. For locations exposed to spray or washdowns, pair the installation with suitable protective enclosures and compatible devices for that environment.

Maintenance and care

During routine checks, verify that mounting screws remain tight and that the frame is not under stress from cable pull or misalignment. If the area has seen salt exposure, a light fresh-water wipe-down around the installation helps reduce salt buildup behind trim plates.
