Overview

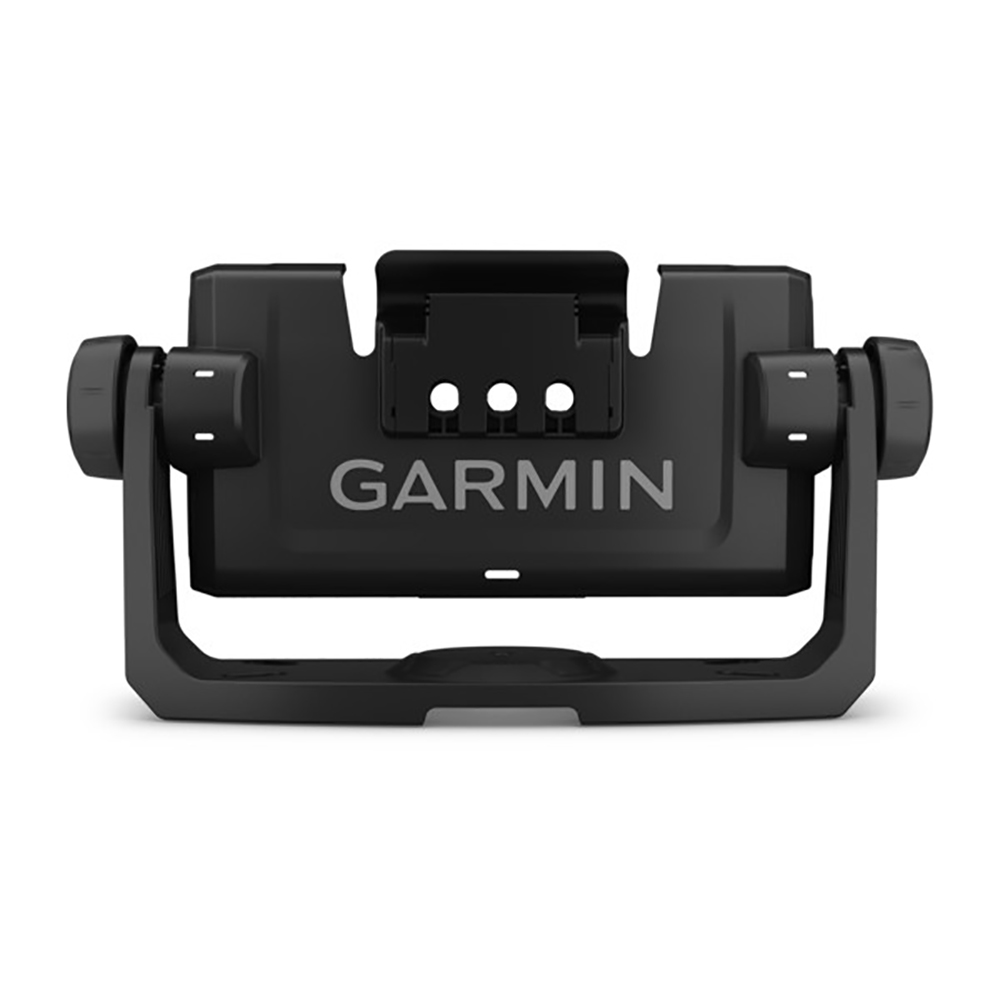

The Garmin 010-12671-03 is a tilt/swivel surface mount with a quick-release cradle for 6-inch echoMAP Plus and ECHOMAP UHD cv chartplotter and sounder units.

It fastens to a flat helm surface and lets you set the screen angle with the side knobs, then rotate the display to suit how you run the boat. The cables plug into the cradle, so the unit can be seated or lifted off without unplugging the connectors each time.

Key features

• Surface-mount bail bracket with side knobs for controlled tilt and swivel at the helm.
• Quick-release cradle keeps cable connections in place so the display can be removed without unplugging the harness.
• Compatibility: echoMAP Plus 62cv, 63cv, 64cv, 65cv.
• Compatibility: ECHOMAP UHD 62cv, 63cv, 64cv, 65cv (including the 63cv Ice Fishing Bundle).
• Black finish that blends with common dash and electronics layouts.

Installation and setup

Fasten the base to a flat section of dash, console top, or electronics box using hardware suited to your mounting surface. Leave room behind the cradle for cable bends and a drip loop so water does not track toward the connections.

Plug your power and transducer or network leads into the cradle, then seat the display into the cradle and snug the knobs to hold your viewing angle. For trailering or storage, the display can be lifted off while the wiring stays secured at the mount.

Compatibility and fit

This mount is intended for the specific 6-inch models listed in the Key features section. Check the exact model name on the front bezel before ordering to avoid mixing mounts between different echoMAP sizes or series.

On-board use

This mount fits well on boats where the helm position changes between sitting and standing and you want to adjust the screen to cut glare while underway. It is also handy when you remove the display between trips to keep electronics protected from sun, spray, and dockside handling.

What’s included

• Tilt/swivel mount with quick-release cradle (black).
