Overview

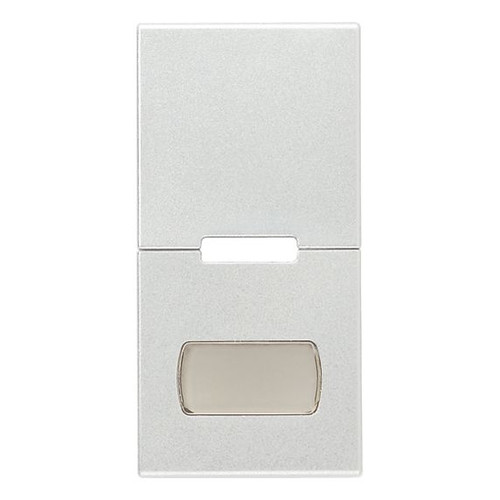

The Vimar Eikon 20531 is a family of interchangeable 1-module buttons for compatible Eikon simple push-button and rocker push-button positions. The front piece measures about 44 mm high by 22.2 mm wide with about 5.7 mm face depth, so it is meant to match existing Eikon hardware rather than replace the whole mechanism.

This range is made from thermoplastic with a matt surface, and the visible finish changes by version. Grey and white versions use an untreated matt face, while silver versions use a lacquered matt face.

On board, this is the kind of spare part used when a vessel already has Vimar Eikon switching at the helm, in the cabin, or in service spaces and the panel needs a matching replacement after wear, relabeling, or refit work. The family includes plain fronts as well as versions with one name plate, two name plates, a customizable name plate, or a sun regulation symbol.

Key features

• Interchangeable 1-module button family for Vimar Eikon control points
• This is the visible button front, not the complete electrical mechanism or cover plate
• Front size about 44 x 22.2 mm with about 5.7 mm face depth
• Thermoplastic construction with a matt surface across the range

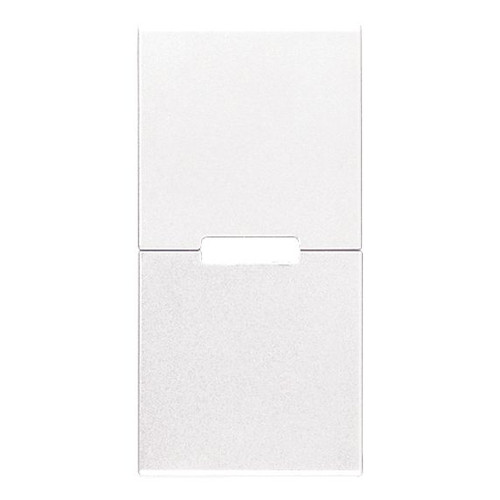

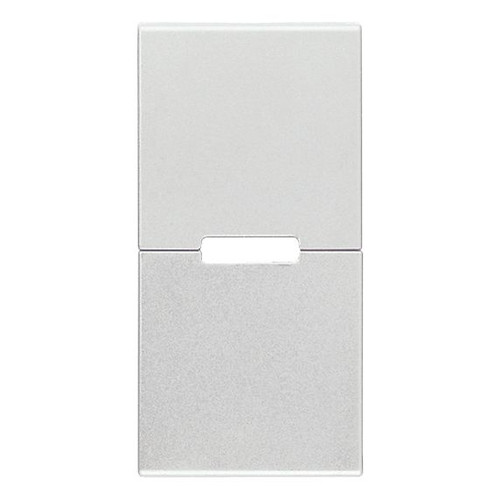

• Finish options in this range include grey, white, and silver

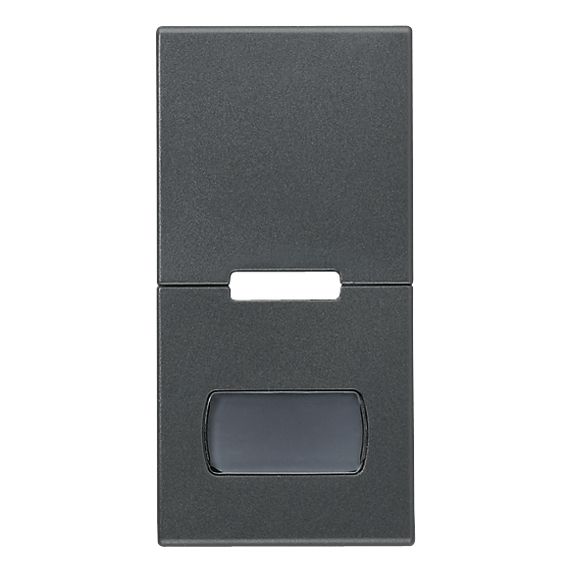

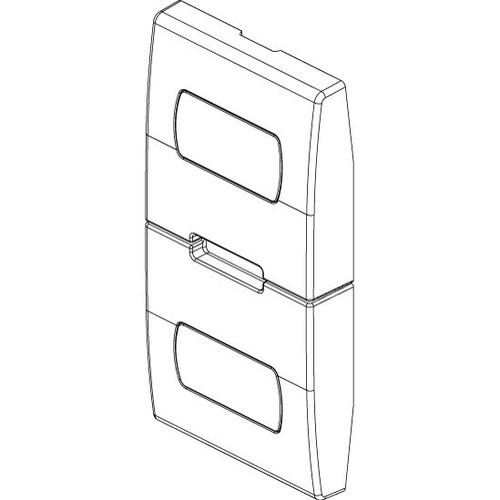

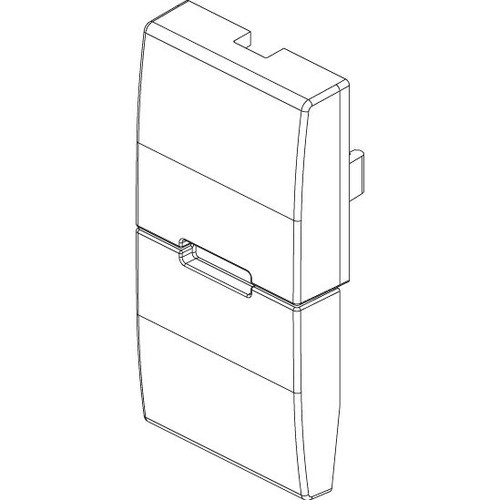

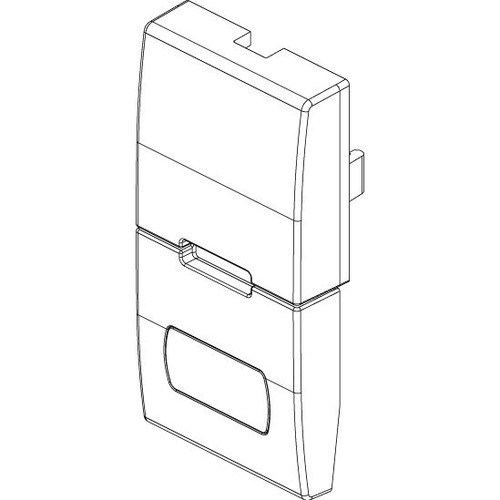

• Available front styles include plain, one name plate, two name plates, customizable name plate, and sun regulation symbol versions

Variants

This range varies by finish and by the marking style on the front. The listed versions are available in grey, white, and silver, with front options that include no symbol, one name plate, two name plates, one customizable name plate, and a sun regulation symbol.

Those changes mainly affect how the switch point looks and how it is identified on the panel. Plain versions keep the face clean, name-plate versions leave room for circuit labels, and the sun regulation symbol version suits locations used for light adjustment or dimming control.

Compatibility and fit

Fit depends on the existing Eikon assembly already installed on board. This family is intended for compatible 1-module Eikon button positions, and the front style needs to match the function behind the panel, especially where the location needs a plain face, a label window, or a symbol-marked front.

This part does not replace the mechanism, the mounting frame, or the cover plate. It suits boats that already use Vimar Eikon hardware and need the switch bank to stay visually consistent during maintenance or interior updates.

Electrical and system integration

The catalog class for this family is a touch rocker for bus system hardware, but the button itself does not add control electronics. It is listed with no KNX, KNX-RF, radio-frequency, LON, or Powernet function in the front piece, so system behavior stays tied to the compatible mechanism installed behind it.

Installation and setup

For replacement work, the important checks are the Eikon series, the 1-module format, the finish already used on the panel, and the front marking needed at that switch location. That is usually the difference between a straight cosmetic swap and a button that does not match the panel legend.

It suits refits where the switching hardware is still in service and only the visible operating piece needs to be renewed or relabeled.
