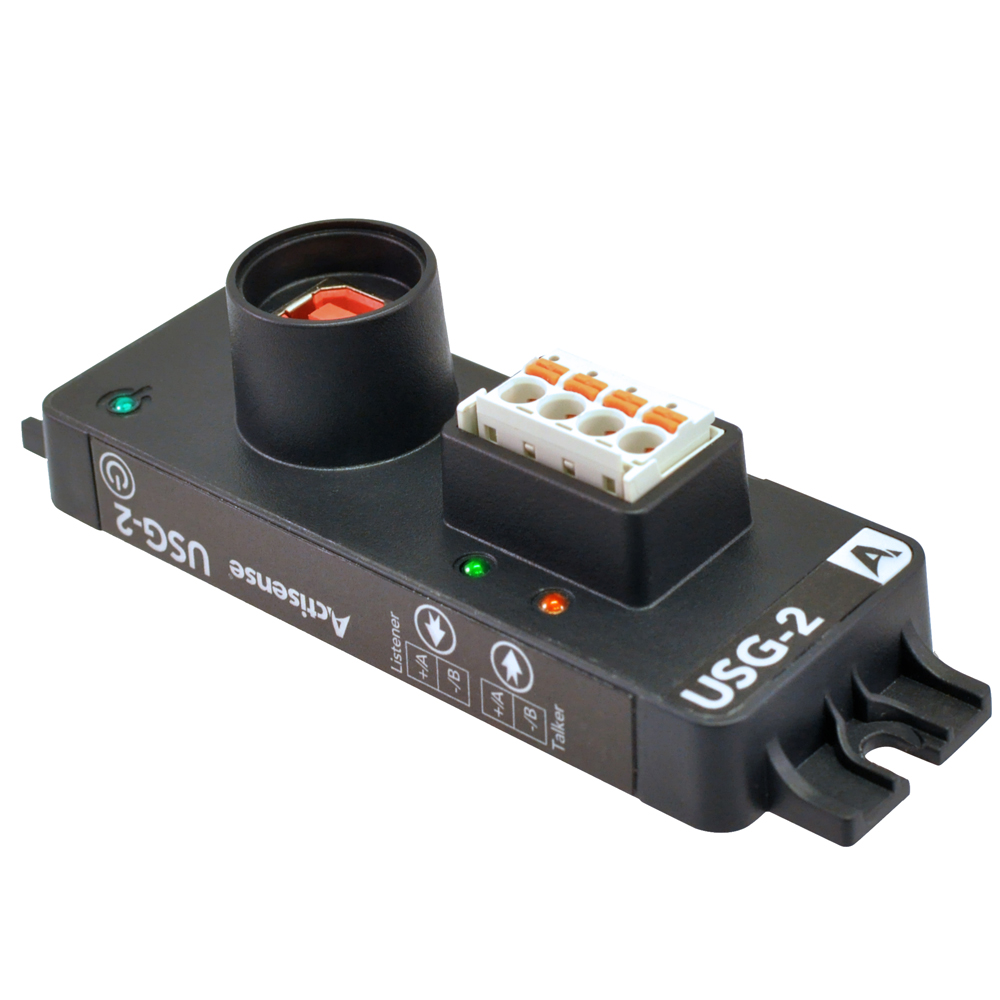

Actisense USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183, RS422 and RS232 USG-2

(No reviews) Write a Review
$167.66
SKU: APL979849
MPN: USG-2
UPC: N/A

Out of stock

Description
USG-2 Isolated USB To Serial Gateway For Use w/NMEA0183,RS422 And RS232

The USG-2 converts a USB port into a bi-directional serial port suitable for
connecting to a marine standard NMEA 0183 data bus.

It provides a far safer connection when compared to standard USB to serial converters. Electrical isolation is provided by the ISO-Drive™ output and OPTO-isolated input making installation simple and free from groundloops.
The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low level signals that are often too small to be received by a PC serial port.

The high quality, shielded USB lead included with the USG-2 makes connection to a PC simple while providing a high level of water protection when connected to the custom designed USB socket. The pluggable screwless connector makes installation quick and easy, and the specifically designed DIN rail mount option ensures a reliable secure bulkhead mount for the USG-2. Multiple LEDs make diagnosing connection issues quick and easy. The blue power LED illuminates solid blue when the USB driver has successfully loaded and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present.

Features:
  • NMEA 0183, RS422
  • RS232 compatible
  • ISO-Drive™ technology
  • Isolated input (2500V)
  • Isolated output (1500V)
  • Encapsulated electronics
  • High retention USB socket
  • Diagnostic LEDs
  • Baud rates from 300 to 230400 bps
  • Bulkhead mount, with optional DIN rail mount kit
  • Pluggable screwless connector with locking latch & strain
Video
PDF
Specifications
Condition: New
Color Temperature:
Lens Type:
Resistant Material:
Product Type:
Light Color:
Product Color:
Power:
Operating Voltage:
Accessory Type:
Product Material:
Light Switch:
LED Light:
Amperage:
Light Type:
Cut out:
Button Type:
Lumens:
Dimmable:
Depth:
Front:
Flexible:
Diffuser Type:
Mounting:
Visibility:
Adjustable:
Noise Decibels:
Cabling Type:
Frequency Response:
Compatibility:
Display:
Output Voltage:
Beam Angle:
Electric Current (Power):
Dimming Type:
ANT Frequency:
Connection Type:
Average lifetime:
Model compatibility:
Voltage Protection:
Total Length:
Chain Length:
Frequency:
LED's per meter:
Modules Quantity:
Sensor type:
LED's Quantity:
Connectivity:
Breaking Capacity:
Channels:
Bulb Type:
add_pdf_link:
Rope Length:
Map Zone:
Holders Cuantity:
Kilowatts:

We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
