Overview

The Vimar Neve Up is a 2P+E 16A universal SICURY socket outlet for flush-mounted 250 V AC installations in dry interior spaces on board. It is built in a 2-module format with screwed terminals, runs at 16 A and 250 V, supports 50 to 60 Hz systems, and measures 44.8 x 47 x 35.9 mm.

This outlet accepts 2P 2.5 A Europlugs, 2P and 2P+E 10 A and 16 A Italian standard plugs, and 2P+E 16 A German standard plugs. The body is thermoplastic and halogen-free, and the IP20 rating makes it a fit for cabins, saloons, nav stations, and other protected interior panels rather than exposed deck or washdown areas.

Key features

• 16 A, 250 V outlet for 50 to 60 Hz AC systems in protected interior spaces
• Universal socket pattern for Europlug, Italian 10 A and 16 A, and German 16 A plug formats
• SICURY enhanced contact protection for safer day-to-day use
• Flush-mounted 2-module device with screwed terminal connections
• Thermoplastic, halogen-free construction with IP20 protection
• Compact body size of 44.8 mm wide, 47 mm high, and 35.9 mm deep

Variants

This product is offered in three color configurations within the same Neve Up outlet format.

Across the listed variants, the electrical rating, 2-module layout, flush-mount installation, and external dimensions remain the same. What changes is the visible finish and color of the front.

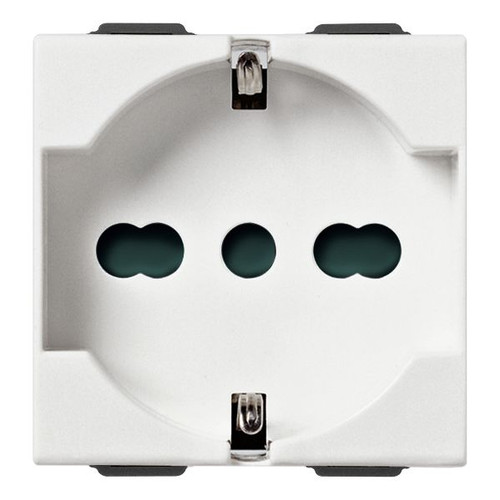

• VM09210: Color White. Glossy white front with a RAL 9003 appearance. It blends into light cabin panels and other interiors where the outlet should stay visually discreet.

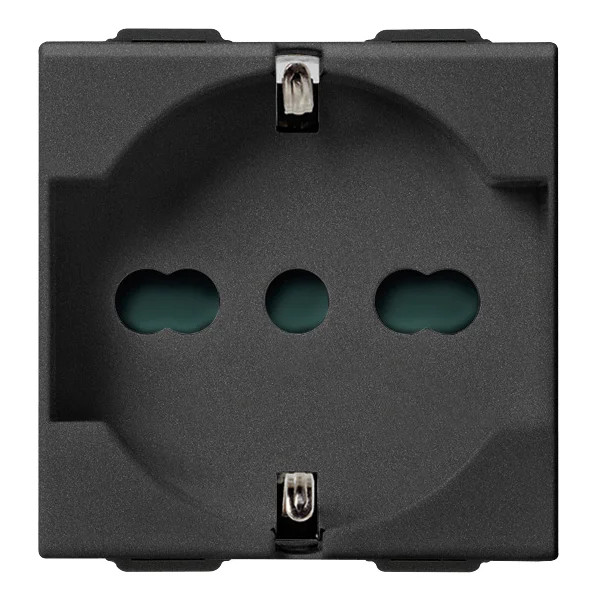

• VM09210.CM: Color Carbon Matt. Anthracite tone with a matt, lacquered finish and a RAL 7016 appearance. It suits darker helm, cabin, or console panels.
• VM09210.R: Color Red. Glossy red front with a RAL 3001 appearance. It stands out more clearly where a socket position needs to be easy to identify at a glance.

Compatibility and fit

This outlet is part of the Neve Up range and uses the 2-module device format, so the surrounding support and cover arrangement needs to match that series. It is a practical choice when onboard appliances, chargers, or shore-fed accessories use a mix of common European plug styles.

Installation and setup

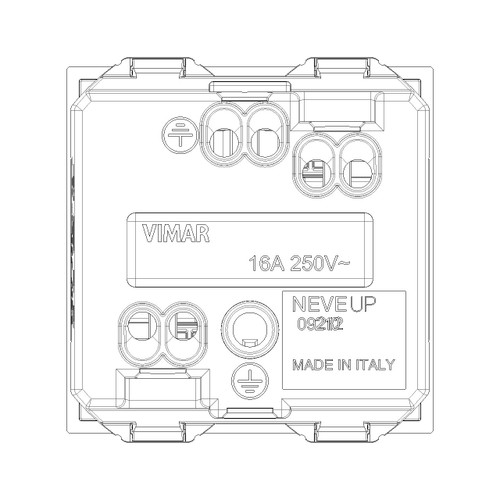

The screwed terminal connection suits fixed wiring by a qualified installer, and the 35.9 mm device depth should be checked against the available recess behind the panel. Because the outlet is rated IP20, it should be mounted in enclosed interior locations and kept away from spray, condensation-prone lockers, and washdown zones.

Use on board

This range makes sense for refits and new builds that need a European AC socket below deck and want the face color to match the surrounding switchgear. It is a good match for sailboats, motorboats, and catamarans where the outlet will live in a dry accommodation or helm area.
