Overview

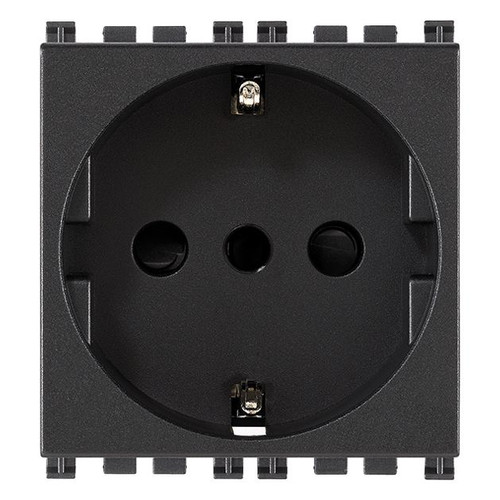

The Vimar Arké 19209 P30 socket outlet is a 2-module Italian-standard socket for flush-mounted AC installations, rated at 16A, 250V, and 50/60 Hz. It uses the P30 format with lateral and central earth contacts, includes enhanced contact protection, and connects with screw terminals.

On a boat, it suits interior AC points where the electrical plan already uses an Italian P30 outlet in the Arké modular range. The body is thermoplastic, halogen-free, matt finished, and sized at 44.8 x 49 x 38.9 mm with an IP20 rating, so it belongs in dry interior spaces rather than exposed or washdown areas.

Key features

• 16A, 250V Italian type P30 socket with lateral and central earth contacts
• 2-module Arké format for flush-mounted installations
• Screw-terminal connection for fixed wiring
• Enhanced contact protection
• Thermoplastic construction with halogen-free material and matt finish
• IP20 rating for protected interior mounting points
• Device size of 44.8 x 49 x 38.9 mm

Variants

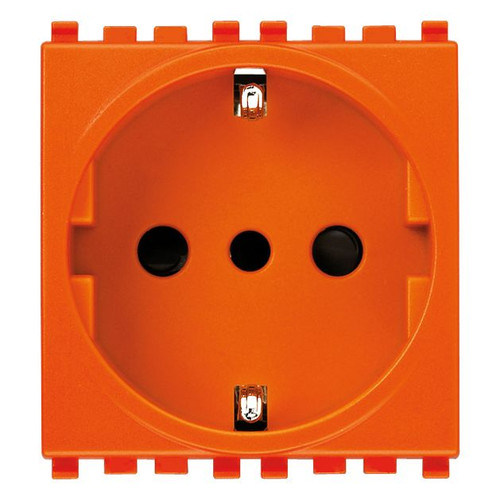

This range is offered in several colour finishes, and the visible front colour is the main change between variants. The available colours are red, orange, metal, grey, green, and white.

Grey, metal, and white are the standard versions. Red, orange, and green are configured for dedicated supply lines. Across the range, the electrical format remains a 16A, 250V Italian type P30 outlet in the 2-module Arké device format.

Compatibility and fit

Check that the support frame and cover plate on the boat are set up for a 2-module Arké device and that the mounting space can accept the 38.9 mm depth. Because it uses flush mounting, snap engagement, and screw terminals, it fits interior panel and wall installations where the outlet stays protected from spray and routine washdowns.

Use on board

This outlet is a good match for cabins, galleys, nav stations, and service areas where the vessel uses Italian-standard AC fittings and the mounting point stays dry. The dedicated-line colours also help when specific circuits need to be identified clearly at the outlet face.
