Overview

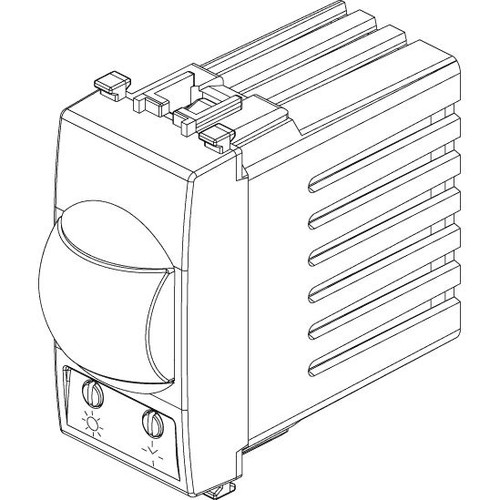

The Vimar EIKON Series is an IR relay switch for automatic light control in a flush-mounted installation. It uses an infrared motion sensor with an adjustable dusk/dawn threshold and an adjustable time-delay cycle, and the range is built around a normally open 6 A relay output with 120 V~ or 230 V~ supply options at 50-60 Hz.

This is a 1-module EIKON device with snap engagement and a thermoplastic body. On board, it makes the most sense in protected interior spaces where hands-free lighting is useful, such as cabins, passageways, or heads, rather than in exposed exterior locations.

Key features

• Integrated infrared motion sensor for automatic light switching
• Adjustable dusk/dawn threshold and adjustable time-delay cycle
• Normally open 6 A relay output
• Available for 120 V~ or 230 V~ systems, both at 50-60 Hz
• 1-module flush-mounted format with snap engagement
• Thermoplastic construction with matte grey, silver, or white finishes depending on variant

Variants

This range varies by supply voltage and finish. The six configurations cover 120 V~ and 230 V~ versions, and each voltage is offered in grey, silver, and white.

The silver versions use a lacquered matte surface in RAL 9022, while the grey and white versions use an untreated matte surface in RAL 7024 and RAL 9016. The sensing function, adjustable dusk/dawn threshold, adjustable timer cycle, 6 A normally open relay output, 1-module format, and flush-mounted installation style stay the same across the range.

Electrical and system fit

Check the vessel's lighting circuit before ordering. These are line-voltage devices, so the 120 V~ versions belong on 120 V~ systems and the 230 V~ versions belong on 230 V~ systems. They are not switches for 12 V or 24 V DC lighting circuits.

Because this is an EIKON 1-module insert, fit depends on using the matching modular support and cover components in that series. The flush-mounted body keeps the installation tidy in cabins and service spaces where a surface-mounted switch would stand out or take up more room.
