Overview

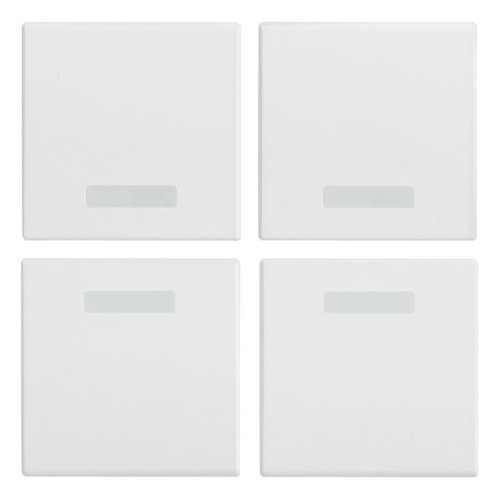

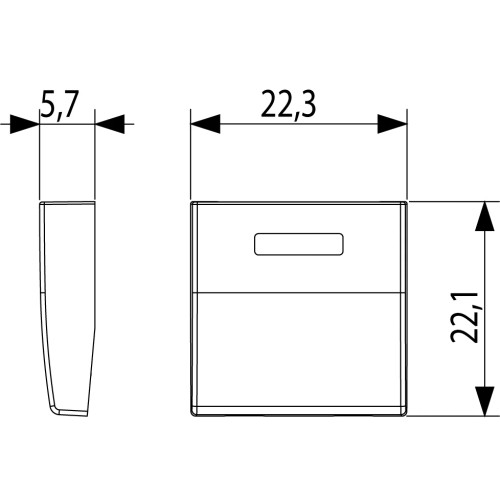

The Vimar EIKON series 1-module four half-button cap set is a spare control element for compatible Vimar EIKON switch or push-button controls. It uses four interchangeable half-button caps in one 1-module position, includes a monitoring window/light outlet, and measures 22.30 x 22.10 x 5.70 mm.

This is the visible cap set rather than the switching mechanism behind it, so it matters when you are replacing worn or marked buttons while keeping the existing control assembly in place. The caps are made from halogen-free thermoplastic with a matt surface, and the rated protection is IP40.

On board, it fits places inside the cabin, interior lighting controls, or a sheltered helm station where Vimar EIKON trim is already installed. IP40 suits indoor use and is not for open deck positions or areas that get direct washdown.

Key features

• Spare 1-module set with four interchangeable half-button caps
• For switch or push-button use on compatible Vimar EIKON controls
• Monitoring window/light outlet remains available in the cap design
• Halogen-free thermoplastic body with matt finish
• IP40 rating for protected interior installations
• Compact size of 22.30 x 22.10 x 5.70 mm
• Range includes neutral-face and direction-arrow versions
• Available in grey RAL 7024, white RAL 9016, and silver RAL 9022

Variants

This range changes by face marking and finish color. The listed versions are available with a neutral face or with direction arrow symbols, and in grey, white, or silver. The silver option corresponds to the Next finish.

The grey and white versions use an untreated surface, while the silver versions are lacquered. Across the listed variants, the matt surface, IP40 rating, monitoring window/light outlet, and 22.30 x 22.10 x 5.70 mm size remain the same.

Compatibility and fit

Match this spare part to a Vimar EIKON 1-module button assembly before ordering. It is a cover/control element for domestic switching devices, uses clamp mounting, and suits switch or push-button applications, but it is not a touch sensor connector for a bus system and it is not a complete switch mechanism.

For refit work on a boat, this suits owners who need to restore the look, symbol marking, or color of an existing control point without replacing the rest of the assembly. It is especially relevant where the electrical device behind the face is still serviceable and only the visible button set needs replacement.

What's included

• Four 1-module interchangeable half-button caps
