Overview

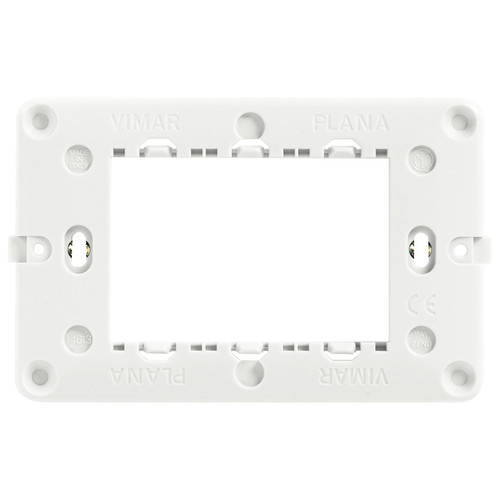

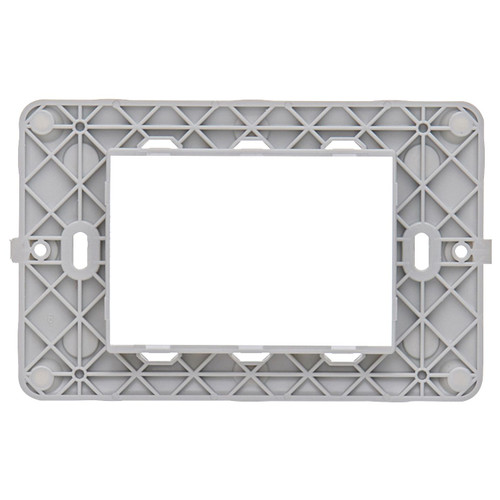

The Vimar Plana mounting frame is a 3-module flush-mount frame with screws for 3-module mounting boxes. It supports a horizontal 3-module layout or a vertical 1-module layout, which helps when panel space or device orientation needs to match the way the boat is wired.

This frame is made from thermoplastic, and the module inserts mount from the front side. That keeps access straightforward during assembly or service and makes it a practical piece for recessed switch and socket panels in cabins, utility spaces, and other protected onboard interiors.

Key features

• 3-module mounting frame for 3-module mounting boxes
• Flush-mounted format with screws included
• Supports horizontal and vertical mounting orientation
• Front-side module mounting for easier fitting and replacement
• Thermoplastic construction that keeps weight low and avoids corrosion concerns from exposed metal frame parts

Variants

This frame is offered in two color configurations.

The difference between variants is the frame color. The mounting format stays the same across the range, including 3-module support, screw fixing, flush mounting, and front-side module installation.

• VM14613: Green. The green finish gives the frame more visual contrast on service panels or other locations where components need to be easier to spot at a glance.
• VM14613.G: Grey. The grey finish gives the installation a quieter look that blends more easily into cabins, helm panels, and other finished interior spaces.

Compatibility and fit

This frame sits within the Vimar Plana range and is intended for installations built around a 3-module mounting box. It is a good match for new builds and refits that use Vimar modular controls in protected onboard spaces where a clean flush finish matters more than exposed-deck weather sealing.

For boat work, the main fit check is the box format and module layout. When the panel already uses a 3-module box, this frame gives the inserts the correct support point and keeps the assembly simple during replacement or panel rework.

What’s included

• 3-module mounting frame
• Mounting screws
