Overview

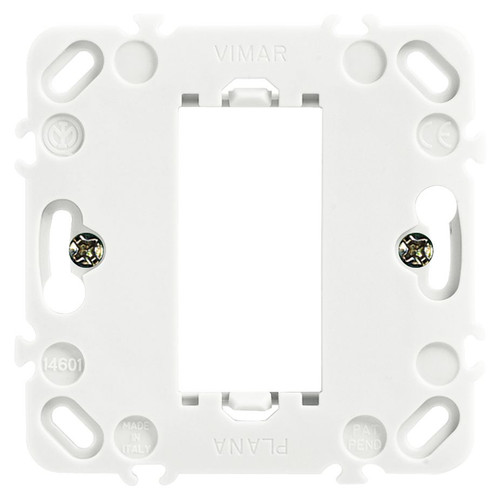

The Vimar Plana Series is a 1-module mounting frame with claws for ø 60 mm mounting boxes. It is built for flush-mounted installations and gives you a straightforward support point for a single Plana module where space is tight and alignment matters.

The semi-transparent frame helps during wiring and positioning, while the honeycomb structure adds strength to the support itself. It can be mounted horizontally or vertically, accepts front-side module installation, and includes corner slots for panel fixing plus hooking teeth that help line up multiple modules in series.

Key features

• 1-module mounting frame with claws for ø 60 mm mounting boxes
• Flush-mounted format for clean installations in standard wall or panel cutouts
• Front-side module installation for easier assembly and service access
• Horizontal or vertical mounting to suit different switch and control layouts
• Semi-transparent frame, honeycomb structure, corner slots, and hooking teeth that help with wiring visibility, panel fixing, and series mounting

Variants

This frame is offered in two color configurations.

Across the listed versions, the frame format remains the same: a 1-module mounting frame with claws for ø 60 mm mounting boxes. The stated difference between variants is the product color.

• VM14601: Product color Green. The listed change here is the frame color, which matters when matching the support with the rest of a Plana installation.
• VM14601.G: Product color Grey. This version keeps the same frame format and changes the visible color to grey.

Installation and fit

This support is intended for flush-mounted work in ø 60 mm boxes and is arranged for front access when fitting the module. The claw fixing makes it useful where that retention method is preferred, and the option to mount it either horizontally or vertically gives more freedom when laying out controls in a cabin, utility space, or interior panel.

Use on board

This product is a good match for interior switch and control points on boats that use the Vimar Plana modular system. It also suits refit jobs where a single module needs a clean support frame that can be fixed neatly and combined in series with adjacent modules when the layout grows.
