Overview

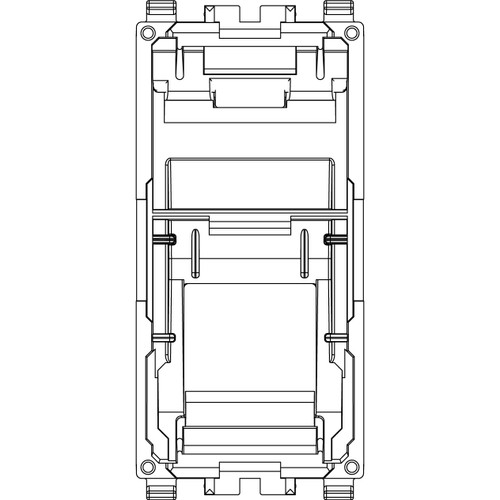

The Vimar EIKON RJ45 slating adaptor is a transition adaptor for fitting an RJ45 Keystone connector into a Vimar Netsafe structured wiring and EIKON device layout. The body measures 22.3 x 49 x 26.1 mm and includes a front label space, which helps when you need to identify network drops at a glance.

On board, this type of adaptor suits enclosed interior installations where you want an RJ45 outlet to sit neatly with the rest of the switching range, such as a nav station, cabin media area, or communications panel. It is the visible adaptor piece at the outlet, so the network category and termination are set by the Keystone connector fitted behind it.

Key features

• Takes an RJ45 Keystone connector in Vimar EIKON and Netsafe structured wiring installations.
• 22.3 x 49 x 26.1 mm body size for checking clearance in panels, boxes, and furniture cutouts.
• Front label space for marking network ports and cable runs.
• No hinged lid on the front, which keeps the socket easy to access in protected interior locations.
• Three finish options across the range: grey RAL 7024, silver RAL 9022, and white RAL 9016.

Variants

This adaptor is offered in three color configurations so the finished outlet can match the surrounding EIKON trim.

The difference between variants is the finish. The RJ45 Keystone format, front label space, and 22.3 x 49 x 26.1 mm dimensions stay the same across the range.

• VM20343.K: Grey, RAL 7024. This is the darkest finish in the range and blends more naturally with darker switch surrounds and interior panels.
• VM20343.K.N: Silver, RAL 9022. This finish suits installations where the surrounding trim already uses a silver tone.
• VM20343.K.B: White, RAL 9016. This keeps the outlet visually light on white cabin liners, lockers, and switch areas.

Compatibility and fit

This adaptor is part of the EIKON and Netsafe system family, so it makes sense when the rest of the installation already follows that format. Because there is no front lid, it suits protected interior positions rather than open deck or washdown locations.

It is a sensible fit for refits that add tidy RJ45 points for a router, switch, onboard PC, or entertainment network without breaking the look of an existing EIKON panel.
