Overview

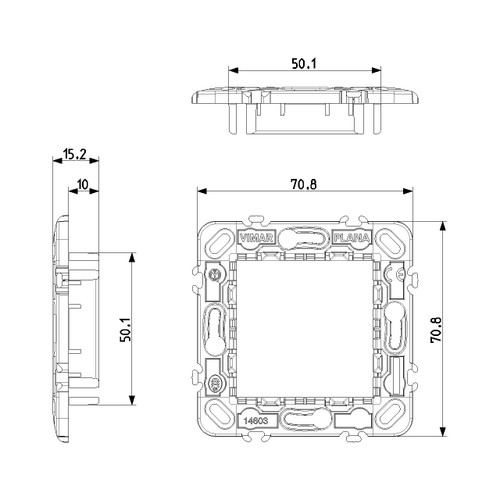

The Vimar PLANA 2-module mounting frame is a flush-mounted support for modular devices with 71 mm centre spacing. It fits 60 mm fixing centres or 56x56 mm mounting boxes, supports a 2-module layout in horizontal installation or 1 module in vertical installation, and uses a thermoplastic body with a honeycomb structure that adds stiffness to the frame.

This frame uses a screwless support format and front-side insertion for the module inserts. The transparent version makes wiring easier to see during assembly, while the frame also includes corner slots for panel fixing, central slots for levelling against the wall, and hooking teeth for linking multiple modules in series.

On board, it suits interior flush-mount electrical points where compatible Vimar PLANA devices are being fitted into cabin panels, consoles, or service spaces. It is a mounting frame rather than a sealed cover, so the final finish and the level of environmental protection depend on the matching device, cover plate, and mounting box used around it.

Key features

• 71 mm centre spacing for Vimar PLANA 2-module installations
• Fits 60 mm fixing centres or 56x56 mm mounting boxes
• Works in horizontal or vertical orientation, with 2 modules horizontal or 1 module vertical
• Screwless mounting frame with front-side insertion of the module inserts
• Thermoplastic construction with a honeycomb structure that stiffens the frame
• Corner slots for panel fixing, central slots for levelling, and hooking teeth for series mounting of multiple modules

Variants

This product is available in more than one finish within the same PLANA 2-module 71 mm frame format.

Across the listed versions, the visible change is frame color. The mounting format, module count, and installation orientation remain the same in the configurations shown here.

• VM14603: Green. This version keeps the same flush-mounted 2-module frame layout and suits installations where that color matches the surrounding trim.
• VM14603.G: Grey. This version changes the visible finish of the frame while keeping the same installation format.

Compatibility and fit

This frame belongs to the Vimar PLANA wiring series, so it should be paired with PLANA modular devices and the matching cover plate format built around a 2-module, 71 mm support. Checking the device series before ordering matters more than outside size alone, especially in refit work where other Vimar ranges can look similar but use different supports.

For marine interiors, this frame makes sense in enclosed helm stations, cabins, utility areas, and other protected spaces where a flush finish is preferred. In exposed locations, the surrounding enclosure and cover components determine whether the final assembly is suitable for spray, washdowns, or other demanding conditions.
