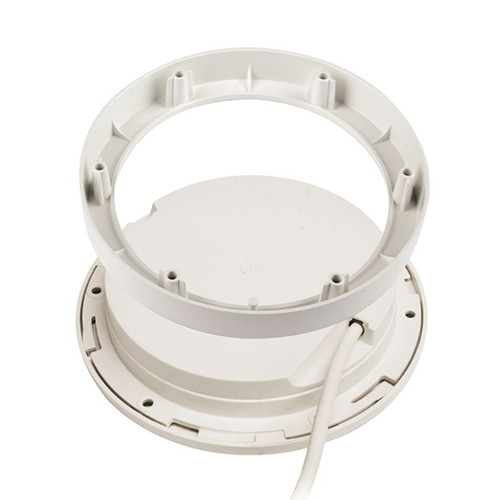

Hella Marine EuroLED 150 Round Downlight, Multivolt 9-33V DC, Completely Sealed, Recessed Mount
Overview
The Hella Marine EuroLED 150 Touch Lamp is a recessed round downlight family for 12V and 24V systems, built around Multivolt 9 to 33V DC electronics and a low 4.0W draw (about 0.33A at 12V, 0.16A at 24V).

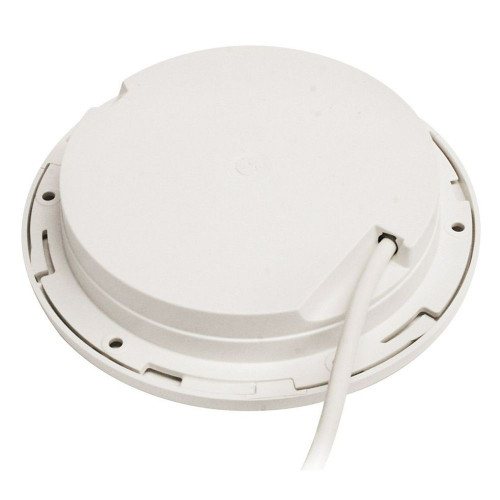

It installs as a 150 mm round lamp with a 124 mm cutout and roughly 20 mm mounting depth, making it a straightforward swap for many common 150 mm downlight openings. Each lamp is supplied pre-wired with 500 mm of marine cable and built as a sealed unit for interior or exterior locations where washdowns and moisture are part of life onboard.
Key features
- Multivolt 9 to 33V DC input for stable output on 12V or 24V boats, including long cable runs and voltage fluctuation.
- Low power consumption at 4.0W, with typical current draw around 0.33A at 12V and 0.16A at 24V.
- Recessed mount format: 150 mm overall face, 124 mm cutout, and approximately 20 mm depth.

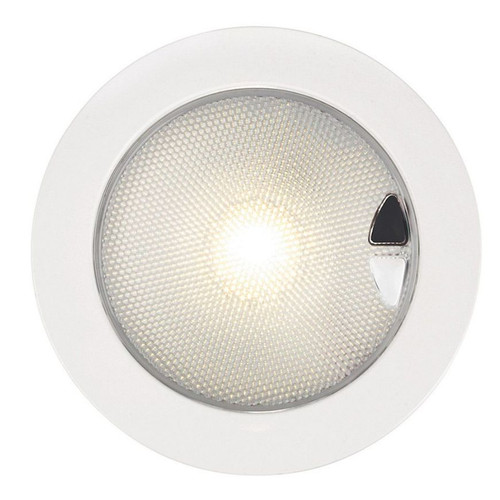

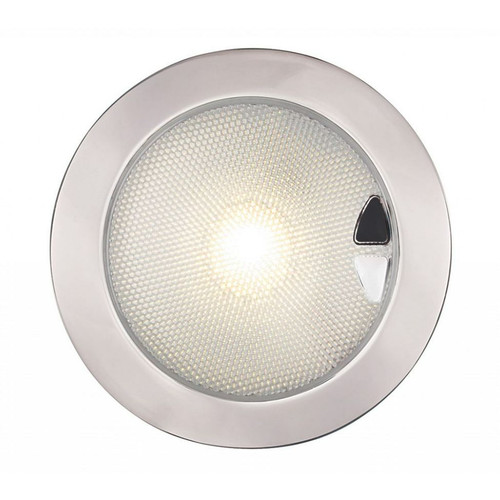

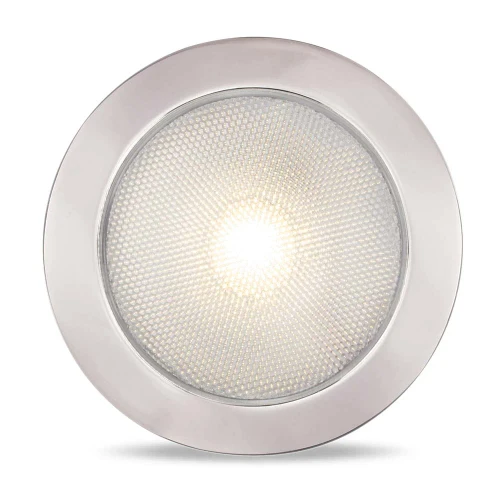

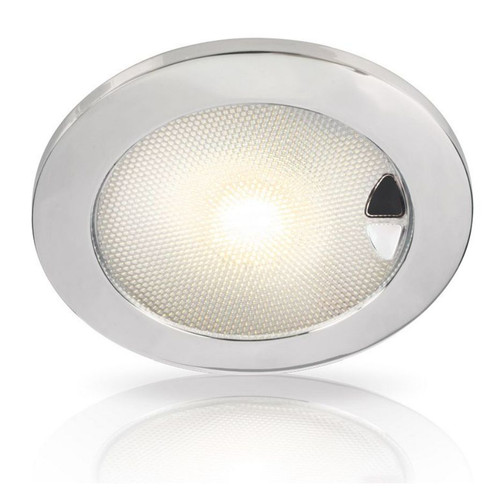

- Trim options: UV resistant white plastic rim or a 316 stainless steel rim for areas that see more salt spray.

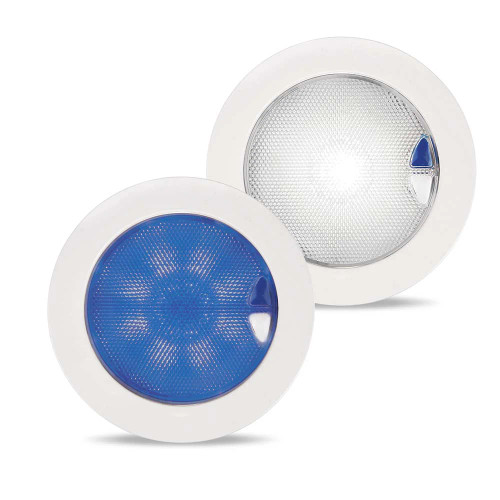

- Lighting options include Warm White (3000K), White, and dual-colour combinations (White/Red, White/Blue, Warm White/Red).
- Touch Switch versions use sealed touch pads on the lamp face for control; dual-colour Touch versions add dimming via touch and remember the last intensity setting.
- Version Standard models run as a conventional on/off downlight controlled from your boat switch circuit.
- CE approved and built to handle shock, vibration, and moisture common in marine installations.
Variants
This range is offered in multiple configurations that change the control style, trim material, and the light colour (single-colour or dual-colour).
Options include Version Touch Switch or Version Standard, trims in white plastic or 316 stainless steel, and output in Warm White, White, or dual-colour (White/Red, White/Blue, Warm White/Red). Core fit is consistent across the range as a 150 mm recessed lamp with a 124 mm cutout, approximately 20 mm depth, Multivolt 9 to 33V DC input, and 4.0W power draw.
Installation and fit
Plan for a 124 mm cutout and enough clearance behind the mounting surface for the lamp body and cable. On thin headliners or panels, use appropriate backing support so the lamp sits flat without flexing when the boat is moving.
For exterior or damp interior areas, route the cable away from chafe points and leave a service loop so the lamp can be removed later without stressing the wiring.
Electrical and control notes
These lamps run on DC power only and are polarity conscious. If wired in reverse, the lamp will not operate, but the protection circuitry prevents damage.
Touch Switch versions are controlled at the lamp face. For dual-colour Touch models, the colour pad selects the coloured mode and the white pad selects white, with dimming activated by holding a finger on the pad. Standard versions are switched by applying or removing power from the supply circuit.
Use cases on board

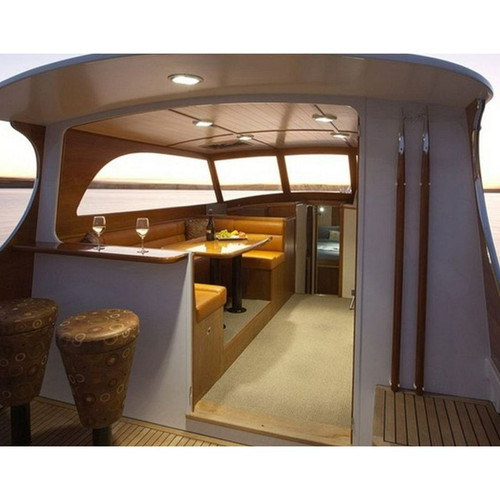

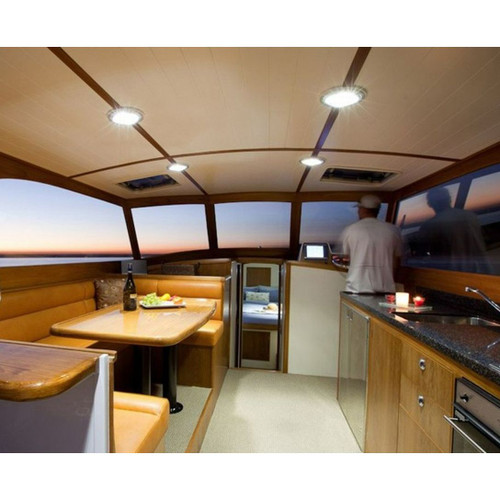

This format is a good match for cabins, heads, galleys, and covered cockpits where you want a low-draw downlight that stays consistent across 12V and 24V systems. Dual-colour versions are also a practical choice at the helm or in the cockpit when red or blue light is preferred for low-glare night operation.
