Overview

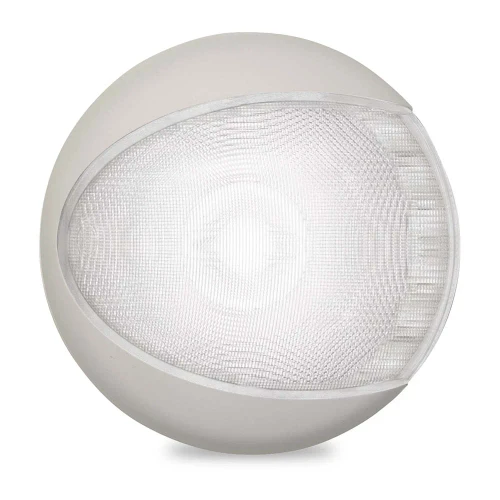

The Hella Marine EuroLED130 is a 130 mm round surface-mount LED downlight that runs on Multivolt 9-33 V DC (12 V/24 V nominal). White output is 5000 K and draws 4.0 W (about 0.33 A at 12 V, 0.16 A at 24 V). The lamp is IP6K6/IP6K7 completely sealed, so it suits interior spaces and exposed areas where spray and washdowns are part of normal use.

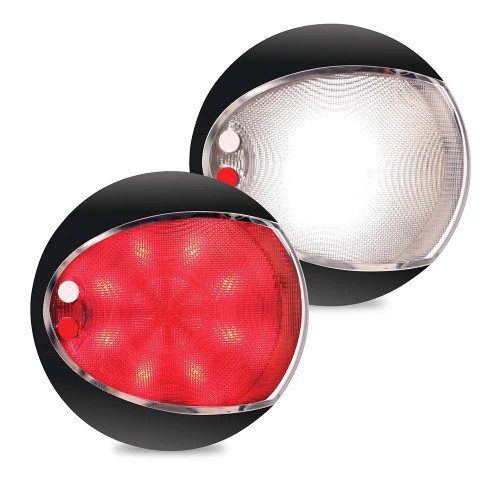

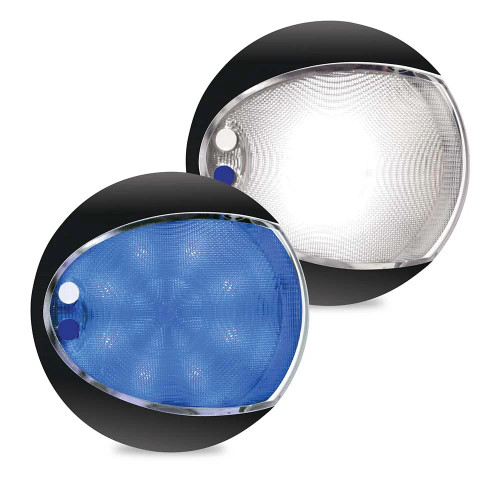

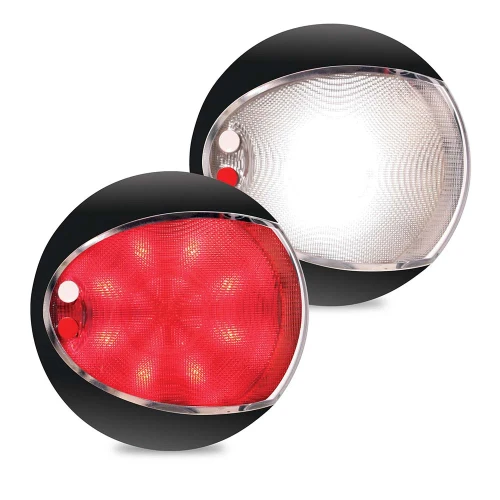

This range covers simple on-off lighting and versions with touch control on the lamp face. Dual-colour options add a second colour alongside white (red or blue), which is useful when you want light on board without the full glare of white at night.

Key features

• Multivolt 9-33 V DC input for 12 V and 24 V systems
• 4.0 W white output (about 0.33 A at 12 V, 0.16 A at 24 V)
• 5000 K white light for a neutral, daylight look
• IP6K6/IP6K7 completely sealed housing and cable entry for wet locations
• UV resistant enhanced impact acrylic lens and housing with a heavy duty nylon shroud
• Surface-mount footprint: 130 mm round lamp with fasteners on 110 mm centres
• Low EMC noise to help avoid interference with onboard radio communications
• Touch Switch models use sealed touch pads; dual-colour versions add dimming and last-level memory

Variants

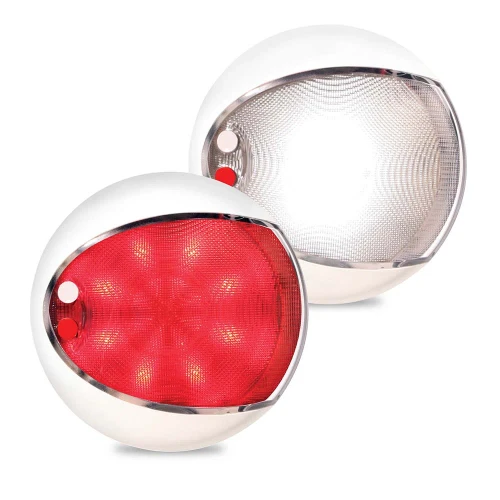

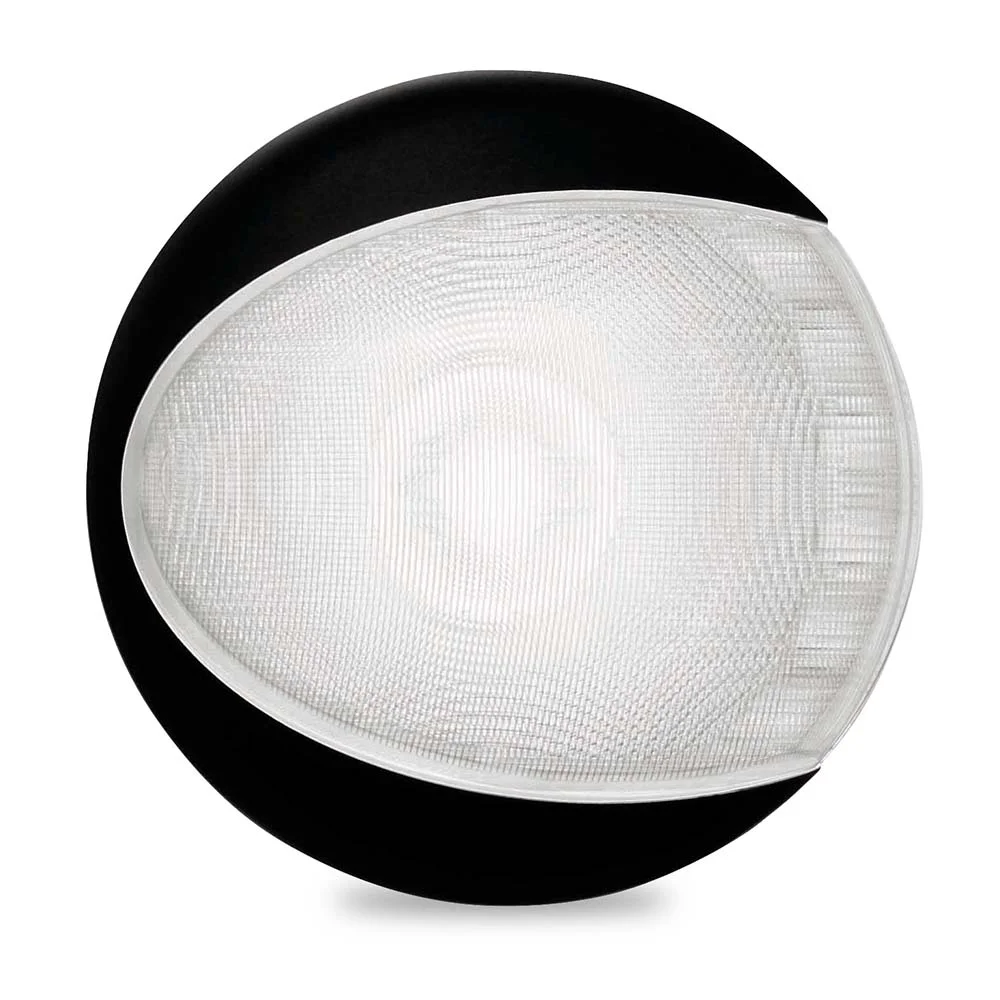

EuroLED130 is offered in Standard and Touch Switch versions, with black or white housings.

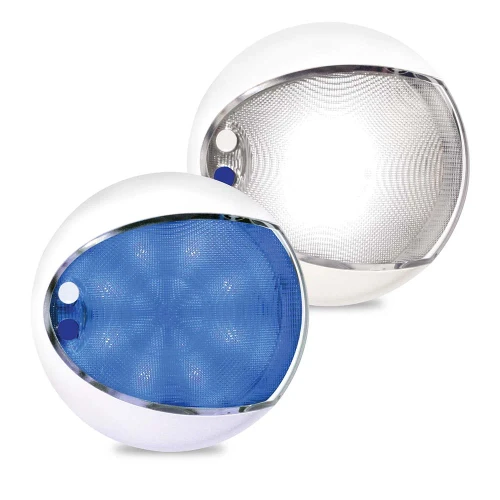

Light colour options across the range include white only, white and red, and white and blue. Touch Switch versions can be operated at the lamp, and dual-colour models also support remote momentary switching using the third control wire.

Installation and setup

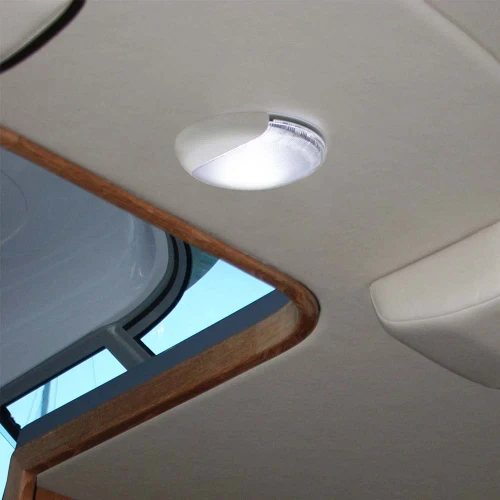

This is a surface-mount lamp intended for flat panels such as cabin headliners, hardtops, cockpits, lockers, and bulkheads. Mounting uses two fasteners on 110 mm centres; 5 mm screws or bolts are typically used and are not supplied. If you pass the cable through a drilled hole, keep edges smooth so the insulation cannot chafe over time.

The shroud clips over the lamp body and should be pressed on until it sits flush. When mounting multiple lamps close together, leaving a small gap between housings makes future removal easier.

Electrical and control notes

Plan for a 2 A maximum fuse on the supply. The LED module is polarity conscious, so a reversed connection will stop the lamp from operating even though the unit is protected against reverse polarity and voltage spikes.

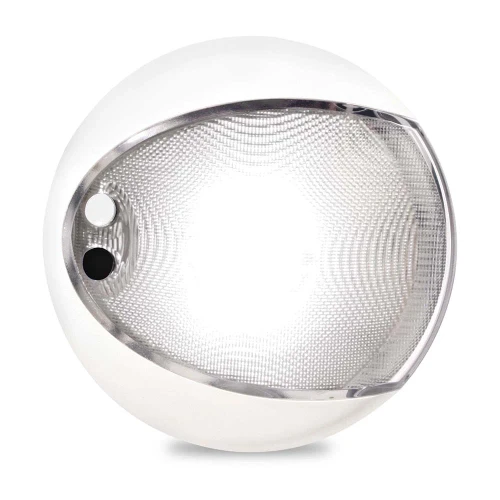

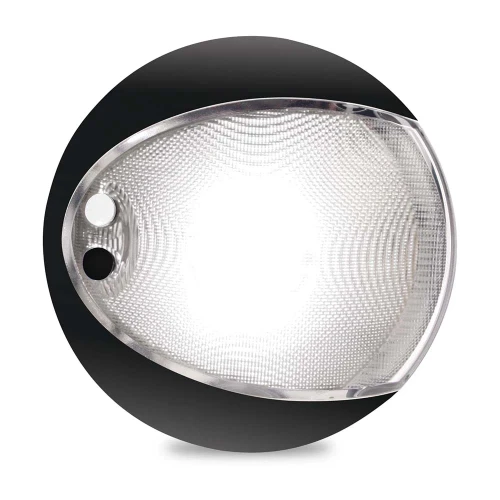

Standard versions are switched from your existing lighting circuit. Touch Switch versions provide on-lamp control, and dual-colour Touch models use an external momentary on-off-on style switch if you want remote control from a panel location.

Use on board

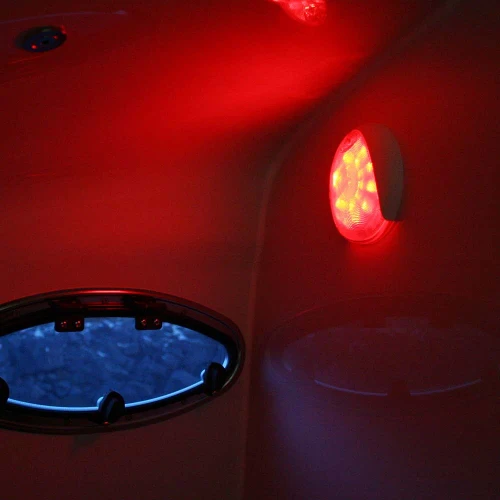

White-only versions are a good match for general cabin lighting, heads, and under-hardtop lighting where you want clean 5000 K illumination without taking extra space for a recessed fixture. Dual-colour versions suit night running and late dockside work, since red or blue light can be used when you want lower glare and less disruption to night vision.

Maintenance and care

Rinse salt off the lens and shroud with fresh water when needed. For cleaning, use mild soap and water and avoid harsh solvents that can haze acrylic. Periodically check the cable run and the mounting fasteners in high-vibration locations.
