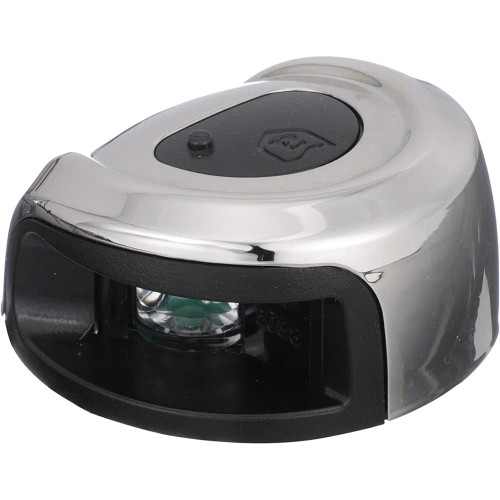

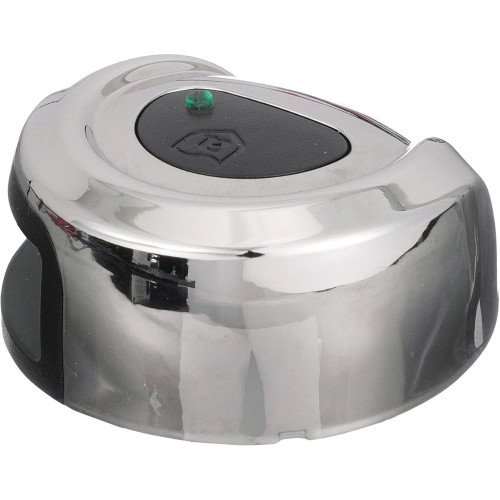

Attwood Marine LightArmor LED Navigation Sidelights, 2NM, IP67, Stainless Steel, Deck Mount

Overview

The Attwood Marine LightArmor is a round deck-mount LED navigation sidelight range for boats that need 2 nautical mile port and starboard visibility in a low-profile stainless steel housing. These lights are built for 12V navigation-light circuits and are intended for boats up to 65.6 ft, or 20 m, where a 2-NM sidelight is required.

The stainless steel housing gives the light a clean deck appearance while helping it stand up to spray, washdowns, and regular outdoor exposure. An IP67 rating supports exposed installation areas, and the LED light engine stays cool to the touch during use.

This range is useful for replacing worn sidelights on runabouts, pontoons, center consoles, fishing boats, and other small to mid-size vessels where a round deck-mount footprint and separate red and green navigation visibility are needed.

Key features

• 2-NM LED sidelight visibility for navigation-light installations on boats up to 65.6 ft, or 20 m.
• Round deck-mount format for horizontal mounting on the bow or forward deck area.
• Stainless steel housing with an IP67 rating for exposed marine locations that see spray and washdowns.
• USCG-certified navigation lighting with compliance to EN/ISO 19009:2015.
• LED light engine runs cool to the touch and is rated for long service life.
• Telltale indicator on top of the housing helps confirm that the light is illuminated during operation.
• Color-coded cores help simplify installation and reduce mix-ups between port and starboard wiring.

Variants

This LightArmor sidelight is offered as a red and green pair or as individual red and green lights for one side of the vessel.

The visible light color and side configuration change between variants. The round stainless steel deck-mount housing, 2-NM rating, LED light engine, and IP67-rated construction remain consistent across the range.

• NV2012SS-1: Red/green pair. This configuration supplies matching port and starboard sidelights for a complete bow navigation-light setup.
• NV2012SSR-7: Red sidelight. The red light is used on the port side of the vessel as part of a standard navigation-light arrangement.
• NV2012SSG-7: Green sidelight. The green light is used on the starboard side of the vessel as part of a standard navigation-light arrangement.

Installation and fit

These lights are made for deck mounting, so the mounting surface should be flat, secure, and positioned where the required sidelight arc is not blocked by rails, trolling motors, anchors, cleats, canvas, or other bow hardware. The pair version is a practical choice when both sides are being replaced at the same time, while the single red or green options work well when only one side is damaged or being refit.

Each light should be wired into the vessel's protected navigation-light circuit using marine-grade wiring practices, clean terminals, and proper strain relief. Before final fastening, confirm port and starboard orientation from the helm view and check that both lights are visible from the correct angles.

Use cases on board

This range fits boats that need a compact stainless deck light rather than a larger bow combination light. It suits owners replacing faded or cracked sidelights, builders matching a stainless deck hardware package, and refit projects where separate port and starboard fixtures give better placement flexibility.

Maintenance and care

Rinse the housings with fresh water after saltwater use and avoid harsh abrasive cleaners on the stainless finish or lens area. During seasonal service, check the wiring connections, mounting screws, and light output so the navigation lights are ready before evening runs, early departures, or low-visibility conditions.
