Overview

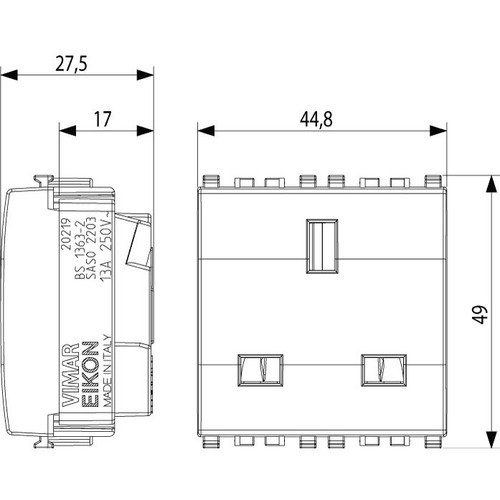

The Vimar Eikon 20219 English SICURY socket outlet is a 2-module British Standard outlet rated at 13 A and 250 V for flush mounting. It uses screw terminals, works on 50 to 60 Hz supplies, and has an IP20 body with a compact 44.80 x 49.00 x 27.50 mm form.

On board, this outlet makes sense in protected interior spaces where a UK-style AC outlet is needed, such as cabins, enclosed helm areas, galleys, or utility spaces that stay dry. The SICURY contact protection adds an extra safety layer at the outlet itself, while the label space helps when circuits need to be identified clearly during installation or later service work.

Key features

• British Standard 2P+E socket outlet rated at 13 A, 250 V~, 50 to 60 Hz
• 2-module format for Vimar Eikon installations
• SICURY enhanced contact protection
• Flush-mounted body with screw terminal connection
• Thermoplastic construction that is halogen-free with a matt surface
• IP20 rating for sheltered interior locations
• Label space on the device for circuit identification

Variants

This outlet is offered in three finish options, each built around the same English Standard 13 A, 250 V configuration.

Across the listed versions, the electrical rating, 2-module size, flush-mount format, screw-terminal connection, and IP20 protection stay the same. What changes is the finish, so the outlet can match the surrounding Eikon installation more cleanly.

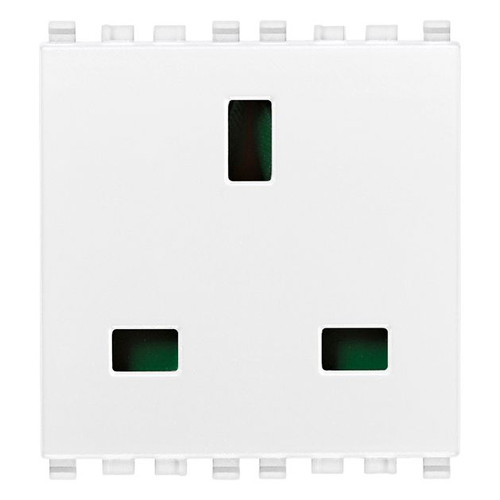

• VM20219.B: White finish, similar to RAL 9016. This version keeps a lighter look on white panels and brighter cabin interiors.
• VM20219.N: Silver finish, similar to RAL 9022. This finish works well where surrounding trims or control panels already lean toward metallic tones.

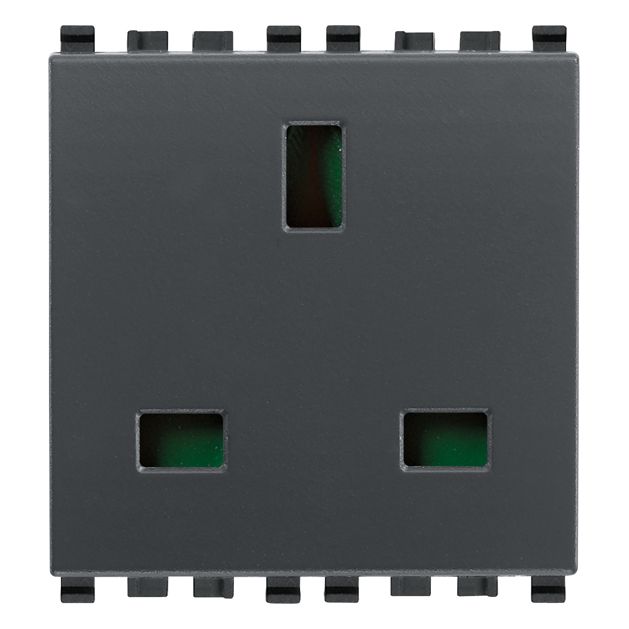

• VM20219: Grey finish, similar to RAL 7024. This version blends more quietly into darker panels and contemporary interior schemes.

Installation and fit

This is a plain outlet insert without a built-in switch, USB charging, hinged lid, function light, overvoltage protection, or fault current protection. Before ordering, check that your panel uses the Vimar Eikon 2-module format and that the mounting position is a dry, protected area rather than an exposed cockpit or washdown zone.

The compact body helps when panel depth is limited, and the screw-terminal connection suits refit work where conductors need a secure mechanical termination. For marine installations, it is best matched to boats with a 250 V AC system that already use British-style outlet standards inside the accommodation.

Use on board

This outlet is a good match for cruisers, motor yachts, and commercial interiors that need a UK-style socket in the living space rather than on weather-exposed parts of the boat. It also fits neatly into refits where the surrounding Vimar Eikon devices are already in place and the outlet finish needs to stay consistent with the rest of the panel.
